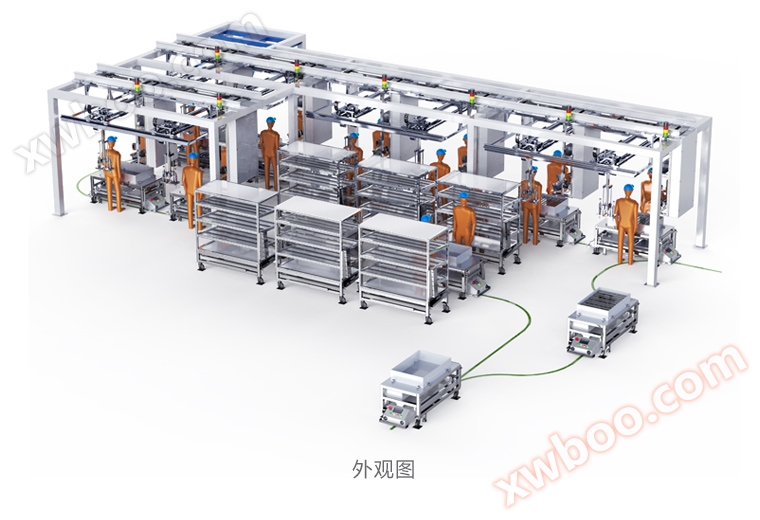

AGV-PACK line

Serial Number	project	Technical Parameter	notes
1	Whole line size (m)	15×8×3
2	power consumption	≤80kW	Specific production line confirmation
3	air pressure	0.5～0.7Mpa
4	power supply	AC 380V，50Hz, 3-phase 5-wire system	Five wire three-phase system
5	Protective gas (nitrogen)	0.5～0.7Mpa， Maximum consumption of 15m ³/h, purity ≥ 99.99%	Used for laser welding
6	control voltage	24V DC
7	Working temperature range	-5℃-40℃
8	Equipment capacity	≥6PPM
9	Equipment utilization rate	≥95%
10	YIELD	≥99.9%
11	Equipment noise	≤75db	Measure at a distance of one meter from the outer wall of the equipment
12	Operator configuration	≤ 20 people	Including mobile loading personnel

Equipment characteristics:

1. The entire system includes a command and dispatch system and 15 hidden AGVs, which ensure the safe operation of AGVs through the use of technologies such as magnetic stripe navigation, laser obstacle avoidance, and safe flexible bumpers.

2. High flexibility, capable of meeting flexible and varied process arrangements, and capable of producing different varieties. In product changes and process layout adjustments, it greatly reduces costs and shortens the transformation cycle.

3. Suitable for lithium-ion power cell (square shell, soft pack, cylindrical) projects.

4. MES system quality management control and QR code traceability.

5. During the assembly of key components, it is necessary to implement main parameter control and data access functions (such as screw torque).
