Automatic Blo integrated hardness tester

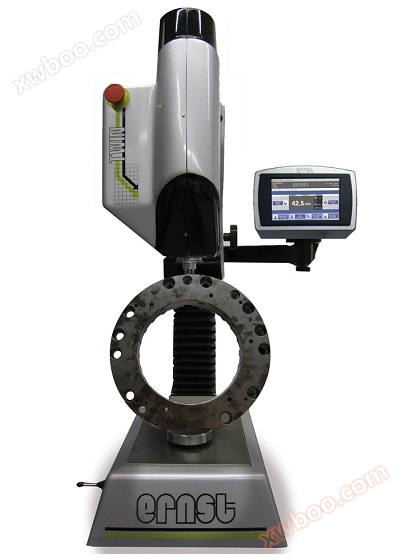

ERNST Twin Automatic Bloch Integrated Hardness Tester

suitableProduction line, workshop laboratory, physical and chemical laboratory, etc

model：Twin X

Performance characteristics

–Direct digital display

–High precision, good repeatability, easy operation, and convenient use

–Automatic loading of load, electric lifting of test head

–Set the hardness scale and automatically change the load

–Rockwell and surface Rockwell hardness can be measured without replacing the indenter

– 45mmThe indentation stroke can test the hardness of hidden points such as blind holes and grooves

–be equipped withPLCThe control system can achieve remote control and multi machine linkage function in the production line

–Equipped with a pressure head cover device, completely eliminating the influence of sample bending and oxide scale on the test results

–Equipped with a clamping cover device, no auxiliary support is required when clamping large overhanging components

–Continuous loading, no preload zeroing step, fast testing speed

–Unique protective function that can prevent injury

–Equipped with tolerance setting and out of tolerance alarm function

–The software has functions such as data storage, statistics, historical data query, surface correction, ruler conversion, data output, and printing

–The hardness tester has a self calibration function, effectively eliminating the influence of system errors on test results

Technical parameters:

- Working principle: Rockwell and surface Rockwell principle

- Reading: Direct digital display,LCDTouch screen display (resolution)800×480）

- Reading resolution:0.1

- Preloading:3kg（29.4N），10kg（98N）

- Work load: Rockwell15-30-45-60-100-150kg（147-294-441-588-980-1471N）； Brinell15.6-31.2-62.5-125-187.5kg（153-306-612-1226-1839N）

- Ruler:HRA-HRB-HRC-HRD-HRF-HRG；HR15N-HR30N-HR45N-HR15T-HR30T-HR45T； HB30-kg/mm2-N/mm2

- Other rulers can be optionally equipped according to requirements

- Test scope:10-70HRC（42-86HR30N）

- Measurable diameter as small as: ￠4mm(Surface Rockwell test method); ￠5mm(Ordinary Rockwell test method)

- Indication error: compliant with ISO6506，ISO 6508，ASTM E10，ASTM E18，GB/T 230，GB/T 231

- Repeatability of indication: compliant with ISO6506，ISO 6508，ASTM E10，ASTM E18，GB/T 230，GB/T 231

Head stroke:45mm

- Measuring head movable distance:320mm

- Loading method: automatic

- Loading time: adjustable1-60second

- Test space: High420mm(As required)+100，+300，500）, deep200mm

- File storage:400A file,2500Data (per file)

- Software functions: ruler selection, tolerance setting, self calibration, statistics, charts, generating printed reports (with time and date), measurable thickness of samples, surface correction, language selection, file types, etc

- Output:USBInterface, used to connect computers and printers

- Power supply: single-phase,100-240VAC，50/60Hz

- Power:1.1kw

- Environmental conditions: Temperature0-50℃, with automatic temperature compensation,

- Equipment size: high1000mm×wide450mm×deep700mm

- Equipment table size: high1000mm×wide850mm×deep800mm

- Weight: Host160kgEquipment desk120kg
