Chemiluminescence nitrogen analyzer

Chemiluminescent nitrogen analyzer model: THA-6000N Overview: The instrument adopts the principle of chemiluminescence detection. The sample (or standard sample) to be tested is introduced into a high-temperature cracking furnace, and at a high temperature of around 1000 ℃, the sample is vaporized and undergoes oxidative cracking, where the nitrogen compounds are quantitatively converted into nitric oxide (NO)

Chemiluminescence nitrogen analyzerModel: THA-6000N
Overview:

The instrument adopts the principle of chemiluminescence detection. After the test sample (or standard sample) is introduced into the high-temperature cracking furnace, at a high temperature of around 1000 ℃, the sample is vaporized and undergoes oxidative cracking, where the nitrogen compounds are quantitatively converted into nitric oxide (NO). The reaction gas is carried by the carrier gas, and after passing through a membrane dryer to remove its moisture, it enters the reaction chamber. The metastable nitric oxide reacts with O3 gas from the ozone generator in the reaction chamber, converting into excited NO2 *. When the excited state of NO2 * transitions to the ground state, photons are emitted, and the light signal is detected and received by a photomultiplier tube at a specific wavelength. After amplification by a microcurrent amplifier and computer data processing, it can be converted into an electrical signal proportional to the intensity of light. Under certain conditions, the intensity of chemiluminescence in the reaction is proportional to the amount of nitric oxide produced, and the amount of nitric oxide is proportional to the total nitrogen content in the sample. Therefore, the total nitrogen content in the sample can be determined by measuring the intensity of chemiluminescence.

Scope of application: Suitable for determining the total nitrogen content in crude oil, distillate oil, refined oil, petroleum gas, crude benzene, refined benzene, plastics, petrochemical products, food, and wastewater.
Compliant with standards: Compliant with SH/T0657, ASTM D4629, ASTM D5762, GB/T17674 and other standards.
2.THA-6000N TypeChemiluminescence nitrogen analyzerTechnical Specifications:
Measurement range: 0.2ppm/L~10000mg/L~percentage content
Measurable sample states: solid (diluted), liquid
Temperature range: Room temperature to 1100 ℃
Temperature control accuracy: ± 1 ℃
重复性： 0.2mg/L≤X＜1.0mg/L， ≤±0.2mg/L
1.0mg/L≤X＜100mg/L，Cv≤10%
100mg/L≤X， Cv≤5%
Instrument completeness: host (data acquisition, control system), temperature controlled cracking system, automatic sampler, operating software, computer (optional), printer (optional), etc.
3. Characteristics:
Windows operating platform, human-machine dialogue, convenient operation.
Microcurrent detection uses a nitrogen detector, which has the advantages of high sensitivity, low noise, wide linear range, and strong anti-interference ability.
Standard sample calibration can adopt single point calibration, which is convenient, fast, and accurate.
Adopting internationally popular circuits and imported components, the overall performance of the machine is superior to similar domestic products and can replace imports.
Fan automatic control technology, no one needs to be on duty after shutdown.
Advanced ozone generators use high-frequency and low-voltage components, with low power consumption and high efficiency. It is safer and consumes less energy than traditional high-voltage generation systems.
Attachment 1:
The key components are imported parts:
Photomultiplier tube (Japan) membrane dryer (Japan)

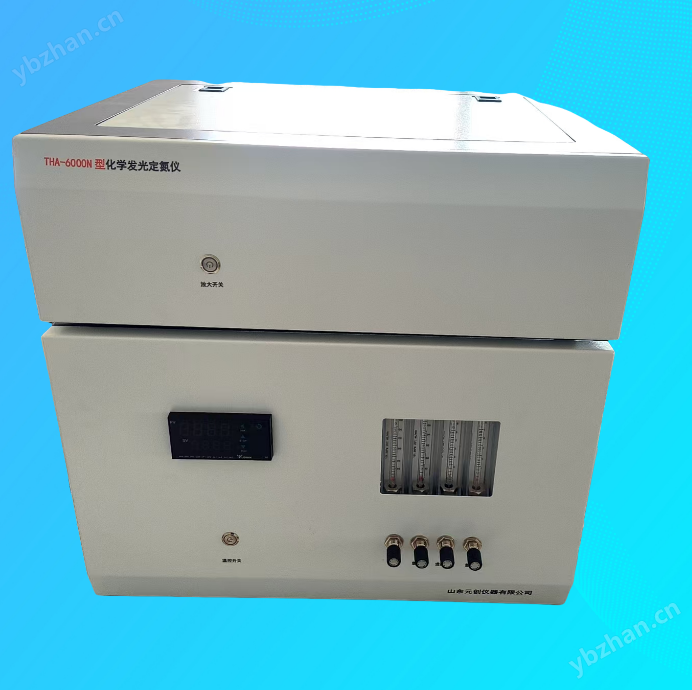

THA-6000N TypeChemiluminescence nitrogen analyzer

Bromine Value Bromine Index Tester Model: THA-600Br

Overview:
The instrument adopts the principle of microcoulometry titration (electric quantity method). The sample is injected into the titration cell, and the unsaturated hydrocarbons of the sample undergo an addition reaction with bromine in the electrolyte. By calculating the amount of electricity consumed by generating bromine, the bromine valence and bromine index of the sample can be calculated according to Faraday's law of electrolysis.
Scope of application: The instrument is suitable for the determination of bromine value and bromine index of petroleum and chemical products such as gasoline, kerosene, diesel, lubricating oil, and light and heavy aromatic hydrocarbons.
◆ Compliant with standards: Compliant with SH/T 0630, ASTM D1492 and other standards.
2. Technical parameters:
Measurement range: Bromine value: 0.1gBr~500gBr/100g oil
溴指数： 0.1mgBr～1000mgBr/100g 油
Accuracy: Bromine valence: ± 3% ± 0.2gBr;
Bromine index: ± 5% ± 0.5mgBr
◆ Detection limit: 0.1mgBr
◆ Instrument completeness: main unit (amplifier, mixer), electrolytic cell, computer (including operating software).
selfFluid exchange system (optional).
3. Characteristics:
◆ Integrated design of the whole machine. Convenient and lightweight, suitable for placement in a fume hood.
Windows operating platform, touch screen design, simple and practical, with human-machine dialogue function, easy to operate.
The computer displays parameters, measurement peaks, and measurement results, and can store or print them.
The electrolytic cell adopts a specially made ceramic sand core instead of the previous ion exchange membrane, which is more convenient to maintain, has measurement sensitivity, and results are more stable, accurate, and reproducible.
The electrolyte uses methanol or ethanol instead of toxic benzene or xylene, making it safer to use
All right.
4. User supporting facilities:
Workbench: 1500mmX600mm
Power supply: 220V AC not less than 1KW
Chemical Reagents: (KBr) Analytical grade 500g
High grade pure acetic acid (HAC) 500ML
Anhydrous ethanol 500ML
1 liter of purified water
