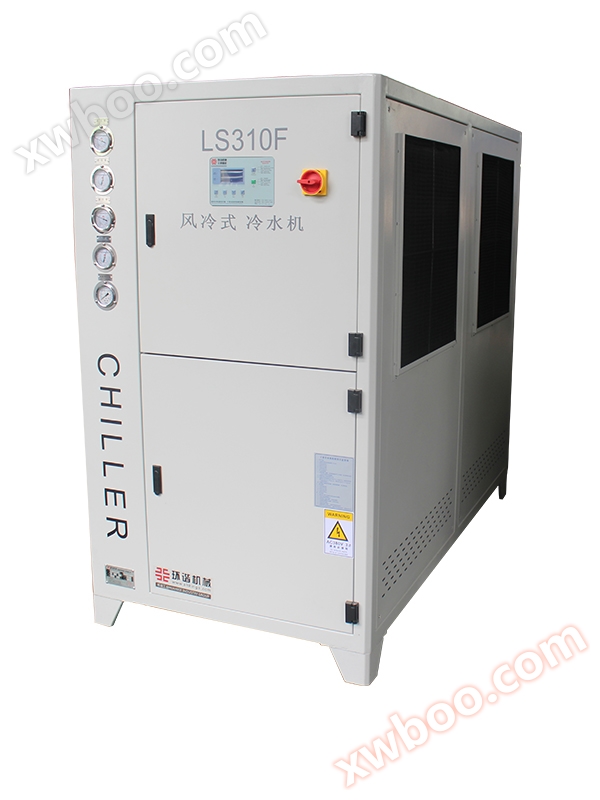

Corrosion resistant water-cooled chiller

Product Details

Functional Features/ product function

Corrosion resistant water-cooled chiller

basic function

•Adopting imported compressor heads from Europe, America, and Japan
•Inner copper tube adopts oxygen free welding method
•Adopting SUS304 stainless steel PP plastic water tank
•Computer PC board self optimizing microprocessor or touch screen PLC
•Efficient condenser and evaporator can save more than 30% of the source
•Using imported accessories such as Schneider, LG, Siemens, etc
•The safety protection and fault display system is complete, and maintenance and repair do not require specialized personnel. For 8HP and above, two or more sets of compressors are used, which can be used separately or together

Optional Features

•RS485 communication enables automated management
•PLC control, high reliability, strong anti-interference ability
•Explosion proof design of water-cooled chiller electrical control cabinet and pipeline

safety protection system/ product system

one Abnormal temperature Alarm for low temperature of circulating water
two Phase sequence detection Prevent pump and compressor from reversing
three Pressure detection Pressure state of refrigerant system
four overload protection Thermal relay protects compressor

five Overheat protection Internal protector protects the compressor
six Pump overload Relay protection pump
seven water level monitoring Low water level alarm indication
eight Power short circuit Air switch power-off protection

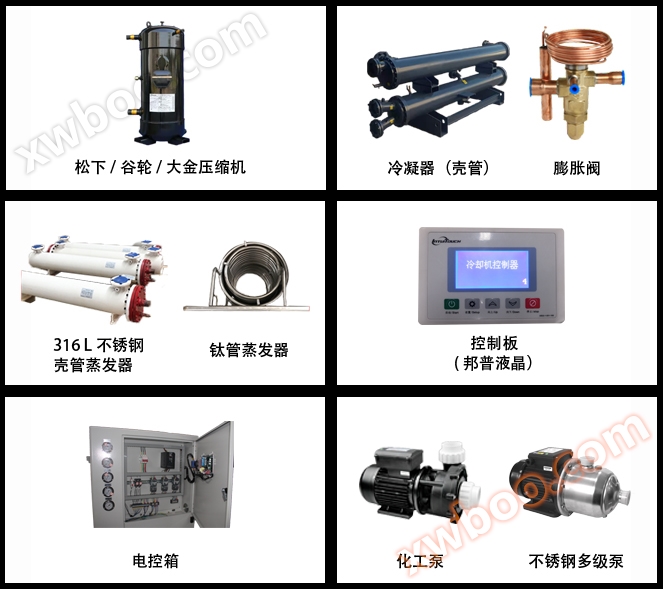

Brand main materials are safe and durable
Intelligent temperature control ensures stable operation
Seamless heating, energy saving, and emission reduction
PCL Control Remote Management

Product schematic diagram/ product principle

耐腐蚀水冷式冷水机原理图

Product parameters/ product parameter

Corrosion resistant water-cooled chiller parameter table
Type model				LS203S	LS205S	LS208S	LS210S	LS212S	LS215S		LS220S	LS225S	LS230S	LS240S
Parameter ltem
standard rating Nominal cooling capacity		Kcal/h 50HZ/60HZ		9494	14689	24286	29378	36172	43817		61679	72343	87634	123358
				11393	17627	29144	35253	43406	52580		74015	86812	105161	148030
		KW 50HZ/60HZ		11.04	17.08	28.24	34.16	42.06	50.95		71.72	84.12	101.9	143.44
				13.25	20.5	33.89	40.99	50.47	61.14		86.06	100.94	122.28	172.13
Total input power Total input power			KW	2.62	4.05	6.05	7.35	9.8	11.64		16.04	18.8	24.28	31.68
power supply Power				3PH 380V 50HZ(200V/220V/415V/460V 50HZ/60HZ)
refrigerant Refrigerant		name Type		R22(R134a/R407C)
		control mode Control method		thermal expansion valve Expansion valve
compressor Compressor		Type Type		Fully enclosed vortex type Hermetic scroll type
		power Power(kw)		2.25	3.3	5.3	6.6	8.3	10.14		13.84	16.6	20.28	27.68
condenser Condenser		type Type		Shell and tube
		Cooling water volume (m)³/h) Cooling water flow		2.3	3.5	5.8	7.1	8.7	10.5		14.8	17.4	21.1	29.7
		Inlet and outlet pipe diameter Inlet/outlet pipe caliber		1-1/2″	1-1/2″	1-1/2″	1-1/2″	1-1/2″	2″		2″	2-1/2″	3″	3″
evaporator Evaporator		type Type		Stainless steel coil (shell and tube, plate type)
		Frozen water volume (m)³/h) Chilled water flow		1.9	2.9	4.9	5.9	7.3	8.8	12.4		14.5	17.6		24.7
				2.3	3.5	5.8	7.1	8.7	10.5	14.8		17.4	21.1		29.7
		Water tank capacity (L) Tank volume		60	60	150	180	180	350	350		350	445		670
		Inlet and outlet pipe diameter Inlet/outlet pipe caliber		1″	1″	1-1/2″	1-1/2″	2″	2″	2-1/2″		2-1/2″	2-1/2″		3″
water pump Water pump		power Power(kw)		0.37	0.75	0.75	0.75	1.5	1.5	2.2		2.2	4		4
		lift Lift(m)		20	20	22	20	20	20	20		20	22		22
Safety protection Safety protection				Compressor overheat protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection, phase sequence/phase loss protection, exhaust overheat protection, antifreeze protection Compressor overheating protection,over-current protection, high and low pressure protection, over-temperature protection, flow switch protection, phase sequence or missing phase protection, exhaust overheating protection，anti-freezing protection
Mechanical weight	KG			130	150	300	430	500	735		820	900	1150	1400
notes				1.The cooling capacity is based on: the inlet and outlet temperatures of chilled water are 17 ℃/12 ℃, and the inlet and outlet temperatures of cooling water are 30 ℃/35 ℃ 2. Scope of work: Temperature range of chilled water: 5 ℃ to 35 ℃; Temperature difference between inlet and outlet of chilled water: 3 ℃ to 8 ℃. 3.Cooling water temperature range: 18 ℃ to 37 ℃; Cooling water inlet and outlet temperature difference: 3.5 ℃ to 10 ℃. 4.We reserve the right to change the above parameters or dimensions without prior notice

Technical parameters of corrosion-resistant single screw water-cooled chiller series
Model Model					LGW-
Project Project					100.1	135.1	180.1	195.1	235.1	260.1	305.1		320.1	350.1	385.1
Nominal Refrigerating Capacity Nominal refrigerating capacity			KW 10⁴Kcal/h		100	135	180	195	235	260	305		320	350	385
					8.6	11.6	15.5	16.8	20.3	22.4	26.3		27.6	30.2	33.2
Operation control mode Operation control mode					PLC programmable controller fully automatic control
Power Supply					380V/3N/50HZ
compressor Compressor	Type Type				Taiwan Hanzhong semi closed twin-screw compressor
	quantity Number				1 unit
	startup type startup type				Y - △ Start
	energy regulation Energy regulation				0-33-66-100%			0-25%-50%-75%-100%
	Input power Input power			KW	22.6	29.8	37.3	41	49.9	54.3	61.1		64.3	70.8	78
	Rated current Rated current			A	39.3	51.9	64.9	71.3	86.8	94.5	106.3		106.3	123.2	135.7
evaporator Evaporator	Type Type				Efficient shell and tube dry heat exchanger
	amount of water Water			m3/h	17.2	23.2	31	33.6	40.6	44.8	52.6		55.2	60.4	66.4
	Pipe diameter Pipe pipe diameter				DN65		DN80		DN100						DN125
	Water pressure drop Water pressure drop			Kpa	48	48	50	50	50	52	54		55	55	58
condenser Condenser	Type Type				Efficient shell and tube heat exchanger
	amount of water Water			m3/h	21.5	29	38.7	41.9	50.5	55.9	65.6		68.8	75.3	82.8
	Pipe diameter Pipe pipe diameter				DN65		DN80		DN100						DN125
	Water pressure drop Water pressure drop			Kpa	46	46	47	47	48	49		51	53	53	56
refrigerant Cryogen	Type Type				R22
	Charge Filling quantity			KG	20	27	36	39	47	52		61	64	70	77
The crew is slightly heavy A little weight of the unit		KG			850	1050	1270	1340	1640	1680		1720	1750	2080	2300
Running slightly heavy Running a little weight		KG			900	1150	1420	1540	1890	1940		1990	2050	2330	2550

Technical parameters of corrosion-resistant twin-screw water-cooled chiller series
Model Model				LGW-
Project Project				200.2	270.2	360.2	390.2	470.2	520.2	610.2	640.2	700.2	770.2
Nominal Refrigerating Capacity Nominal refrigerating capacity		KW 10⁴Kcal/h		200	270	360	390	470	520	610	640	700	770
		KW 10⁴Kcal/h		17.2	23.3	31	34	40.5	44.8	52.6	55.2	60	66
Operation control mode Operation control mode				PLC programmable controller fully automatic control
power supply Power				380V/3N/50HZ
compressor Compressor	Type Type			Taiwan Hanzhong semi closed twin-screw compressor
	quantity Number			2 units
	startup type startup type			Y - △ Start
	energy regulation Energy regulation			0-16.5-33-50-66-83.5-100%			0-12.5-25-37.5-50-62.5-75-87.5-100%
	Input power Input power		KW	45.2	60	75	82	99.8	108.6	122.2	128.6	141.6	156
	Rated current Rated current		A	78.6	103.7	129.8	142.7	173.7	189	212.6	223.8	246.4	271.4
evaporator Evaporator	Type Type			Efficient shell and tube dry heat exchanger
	amount of water Water		m3/h	34.4	46.6	62	68	81	89.6	105.2	110.4	120	132
	Pipe diameter Pipe pipe diameter			DN80	DN100			DN125					DN150
	Water pressure drop Water pressure drop		Kpa	50	52	52	53	54	55	55	55	60	68
condenser Condenser	Type Type			Efficient shell and tube heat exchanger
	amount of water Water		m3/h	43	58.1	77.4	83.9	101.1	111.8	131.2	137.6	150.5	165.6
	Pipe diameter Pipe pipe diameter			DN65*2		DN80*2		DN100*2				DN125*2
	Water pressure drop Water pressure drop		Kpa	45	45	45	47	50	52	53	55	58	60
refrigerant Cryogen	Type Type			R22
refrigerant Cryogen	Charge Filling quantity		KG	40	54	72	78	94	103	121	127	139	153
The crew is slightly heavy A little weight of the unit		KG		1650	1850	2300	2400	2800	3000	3100	3200	4000	4500
Running slightly heavy Running a little weight		KG		1900	2150	2550	2750	3350	3550	3600	3750	4450	4950

Basic parameters table of corrosion-resistant water-cooled chiller chassis Parameter table of industrial water chiller
Product parameters	unit	Parameter values
control system		liquid crystal display Touch screen display Digital tube display
Circuit system		schneider LG Siemens contactor overload
Temperature control program		Optional display set temperature, inlet temperature, outlet temperature
Temperature range	℃	5～35℃
Temperature Control Range	℃	PID ± 0.05 ℃ (customized ± 0.01 ℃)
Freezing system		Accurately calculate the cooling capacity KCAL/H
Compressor selection	KW	3HP~60HP (multi unit)
Compressor brand		Spiral type: Danvers Panasonic Valley Wheel Screw type: Hanzhong Fusheng
Using refrigerant		R22 R407C R410A
Other Choice		Optional hot gas bypass valve, liquid pipe solenoid valve, sight glass, gas seal, oil seal
condensing system		Corrosion resistant shell tube detachable cover copper tube adopts fin pattern heat dissipation mode
Evaporation system		American ALCO or equivalent brand expansion valve capillary drying filter
evaporator		shell tube 304 stainless steel or copper water box 316L board replacement
circulatory system		Flow pressure selection
Pipeline material		Pipeline material (PPR PVC stainless steel) with optional flow switch
pump power	HP	0.5HP～20HP，
Pump brand		Southern Liou Lingxiao Grundfos stainless steel multi-stage pump or chemical pump
interface size	DN	Choose stainless steel or plastic valves for DN15 to DN80 or multiple inlet and outlet options
Refrigeration Piping	DN	DN15--DN100
Dimensions	MM	Customized according to customer on-site requirements
notes	1. The corrosion-resistant water-cooled chiller requires an external cooling tower to meet the flow rate of the chiller 2. The flow rate of the water pump in the cooling tower waterway needs to meet the flow rate and head of the condenser
