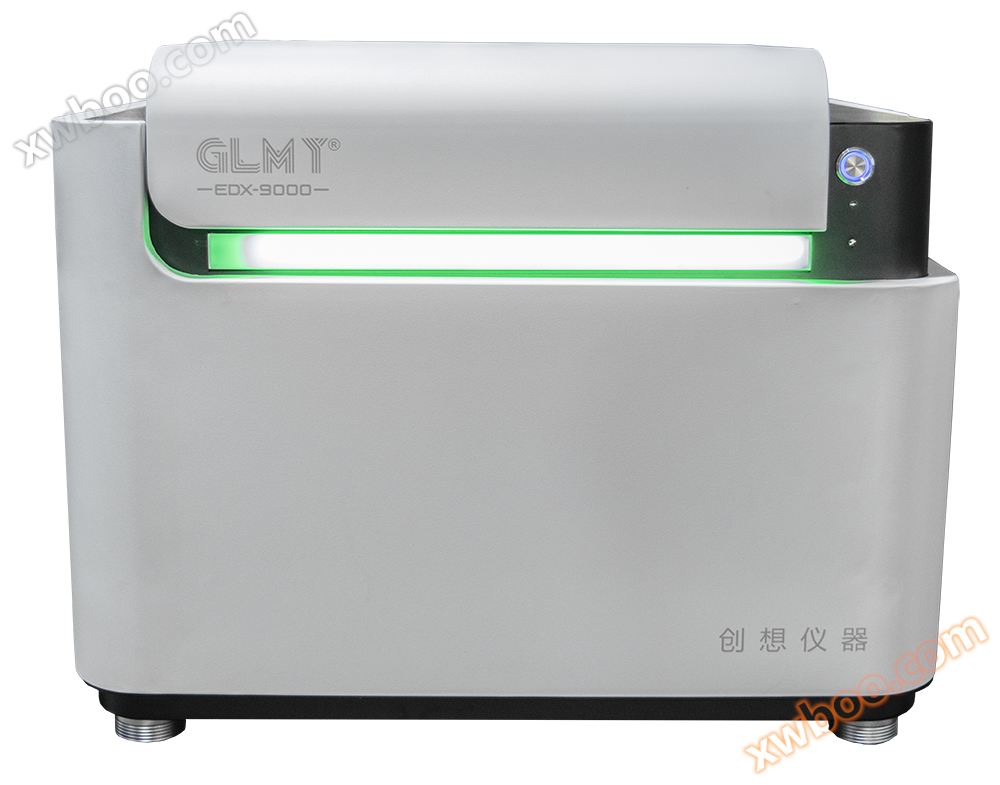

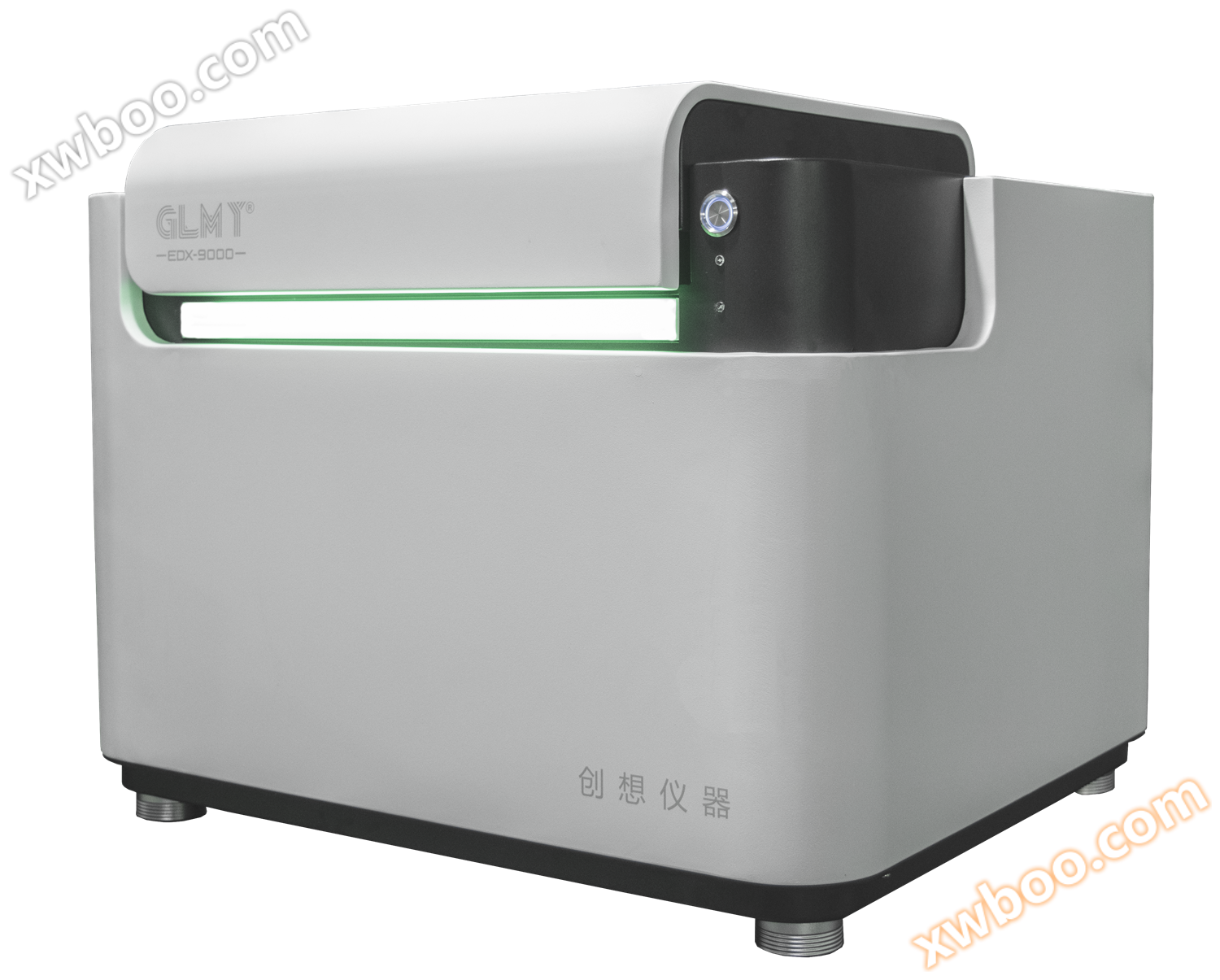

Creative GLMY Vacuum Energy Dispersive X-ray Fluorescence Spectrometer

NegotiableUpdate on 03/07

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Product Overview Product Features Desktop X-ray Fluorescence Spectrometer Vacuum Energy Dispersive X-ray Fluorescence Spectrometer: Desktop X-ray Fluorescence Spectrometer Energy Dispersive X-ray Fluorescence Spectrometer Fusion Empirical Coefficient Method, Basic Parameter Method (FP Method) and other analysis methods, the accuracy of test data is fully guaranteed

Product Details

Product Overview

PRODUCT OVERVIEW

Product Features

PRODUCT FEATURES

Desktop X-ray Fluorescence Spectrometer Vacuum Energy Dispersive X-ray Fluorescence Spectrometer:

Desktop X-ray Fluorescence Spectrometer Energy Dispersive X-ray Fluorescence SpectrometerIntegration of experience coefficient method and basic parameter method（FPThe accuracy and performance of the test data are fully guaranteed through analytical methods such as law.

Desktop X-ray Fluorescence Spectrometer Energy Dispersive X-ray Fluorescence SpectrometerEmpirical coefficient method: The instrument determines the influence coefficient based on the measurement of standard samples. High requirements for standard samples, similar to the type of sample to be tested, and simple calibration model.

Desktop X-ray Fluorescence Spectrometer Energy Dispersive X-ray Fluorescence SpectrometerBasic parameter method（FPMethod: The instrument determines parameters by modeling and calculating various physical quantities based on the actual detected substance. The requirements for standard samples are not high, the calculations are complex, and it is suitable for detecting substances that lack corresponding standard samples.

Software features

The range of element content analysis is2 PPmto99.99%

adoptBGInternal standard calibration to improve the accuracy of non qualitative sample measurement

User defined multi curve and multispectral fitting analysis method

Fully automated quantitative analysis report Simple and accurate

Adaptive pilot calibration

Automatic acquisition and display of spectra.

It has the function of automatically detecting the working status of the instrument.

Automatic sample discrimination and analysis. Provide an extension interface for further analysis of other elements, from calcium to uranium.

hardware

US importSi-PINDetector, high-speed pulse height analysis system

the United StatesSPELLMANhigh-voltage generator

US imported preamplifier with good compatibility with US imported detectors

Imported main amplifier from the United States, with good compatibility with imported detectors from the United States

US importADConversion module, compatible with imported detectors from the United States

Size&Weight

550（W）×450(D)×450(H)mm

60Kg(Host part)

Power and environmental requirements

Power Supply:220V±10％ 50Hz

Ambient temperature10℃-28℃

ambient humidity: ≤70 ％RH(25℃ room temperature)

Product advantages

PRODUCT ADVANTAGE

Desktop X-ray Fluorescence Spectrometer Vacuum Energy Dispersive X-ray Fluorescence Spectrometer:

Non-destructive testing

Accurate analysis can also be performed without standard samples

Measurement time is shorter than chemical methods and does not require auxiliary materials

Computers perform data processing and analysis quickly and accurately

Real time display of high-resolution graphics, distinguished by different color blocks

Si nuclear detector

The range of element content analysis is2 PPmto99.99%

adoptBGInternal standard calibration to improve the accuracy of non qualitative sample measurement

Fully automated quantitative analysis report Simple and accurate

Adaptive pilot calibration

Automatic acquisition and display of spectra

Capable of automatically detecting the working status of instruments

Automatic sample discrimination and analysis

Technical Specifications

TECHNICAL PARAMETERS

Desktop X-ray Fluorescence Spectrometer Vacuum Energy Dispersive X-ray Fluorescence Spectrometer:

Item		Content description
Instrument model		EDX-9000
Analysis principle		energy-dispersiveXX-ray fluorescence analysis method
Analyze the range of elements		Na(11)-U(92)Any element
ppb		CL/Cd/Hg/Br/Cr/Pbup to2 ppm
Sample shape		Any size, any irregular shape
Sample Type		plastic/metal/thin film/powder/Liquid, etc
XX-ray tube	target material	Molybdenum（Mo）Target
	tube voltage	5─50KV
	tube current	1─1000ｕA
Sample irradiation diameter		2、5、8mm
detector		US importSi-PINDetector, high-speed pulse height analysis system
high-voltage generator		the United StatesSPELLMANhigh-voltage generator
preamplifier		US imported preamplifier with good compatibility with US imported detectors
main amplifier		Imported main amplifier from the United States, with good compatibility with imported detectors from the United States
ADconversion module		US importADConversion module, compatible with imported detectors from the United States
ADC		2048the Way
optical filter		6Automatic selection and conversion of filter types
Sample observation		130Wancai ColorCCDcamera
analysis software		Lifetime free upgrade
analytical method		theoryalphaCoefficient method, basic parameter method, empirical coefficient method
operating system		WINDOWS XP(Genuine version)
data processing system	host	PCBusiness models
	CPU	P4 3.0
	memory	512MB
	optical disc drive	8xDVD
	hard disk	80G
	monitor	17Inch LCD display
working environment		temperature10－35С， humidity30－70％RH
weight		60Kg(Host part)
Overall dimensions		550（W）×450(D)×450(H)mm
Requirements for external power supply		AC220±10%、50/60Hz
Measurement condition		atmospheric environment
Test sample time		100－300Adjustable in seconds
