DH-900RTG Water Treatment Equipment, Mudanjiang Pure Water Treatment Equipment Price, Mudanjiang Pure Water Treatment Equipment Production Plant

　　DH-900RTG - Mudanjiang Water Treatment Equipment, Mudanjiang Pure Water Treatment Equipment Price, Mudanjiang Pure Water Treatment Equipment Production Plant

1、 Technical parameters

Model: DH-900RTG

Water output: 9 tons per hour

Design maximum flow rate m3/h: 6.3-64

Nominal diameter mm: DN1000-DN3200

Work pressure: Mpa: 0.2-0.6

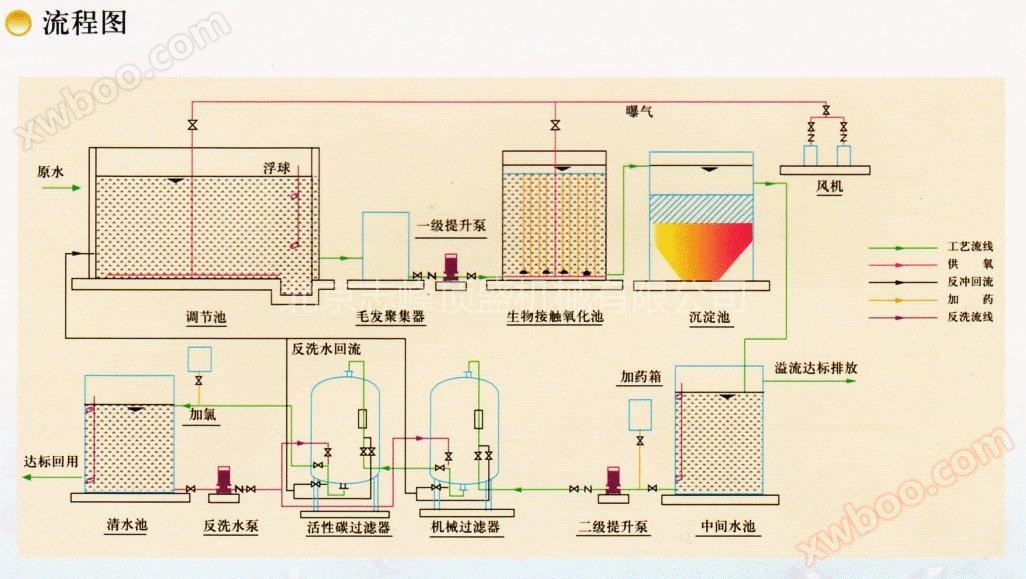

2、 Flow chart of water treatment equipment:

3、 Application scope of reverse osmosis equipment

Preparation of space water, purified water, distilled water, etc; Water used for alcohol manufacturing and alcohol reduction; Pre preparation of water for industries such as pharmaceuticals and electronics; Concentration, separation, purification, and water preparation in chemical processes; Boiler feedwater desalination soft water; Desalination of seawater and brackish water; Water and wastewater treatment for industries such as papermaking, electroplating, and printing and dyeing. Mudanjiang Water Treatment Equipment, Mudanjiang Pure Water Treatment Equipment Price, Mudanjiang Pure Water Treatment Equipment Production Plant

Overview

Reverse osmosis is a high-tech membrane separation technology developed in the 1960s. Its pore size is very small, mostly ≤ 10 × 10-10 (10A), and it can remove organic matter with small ion range and molecular weight in the filtrate, such as bacteria, viruses, heat sources, etc. It has been widely used for desalination of seawater or brackish water, production of pure water for electronics, pharmaceuticals, drinking distilled water, space water, and also applied in biological and medical engineering.

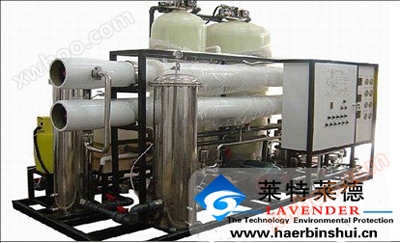

The reverse osmosis device produced by our company is mainly composed of imported composite membrane components, supplemented by multi-stage centrifugal pumps, stainless steel high-pressure pipelines, valves, instruments, electrical control systems, etc.

Note: Before starting the reverse osmosis device, the inlet water quality must meet the requirements of the inlet indicators, otherwise the reverse osmosis device will shorten its service life.

4、 Working principle

Reverse osmosis, also known as reverse osmosis (RO). It is to use sufficient pressure to separate the solvent (usually water) in the solution through a reverse osmosis membrane (or semi permeable membrane). Because it is opposite in direction to natural infiltration, it is called reverse osmosis. According to the different osmotic pressures of various materials, reverse osmosis methods with pressures greater than the osmotic pressure can achieve the goals of separation, extraction, purification, and concentration.

Selection requirements

Before using reverse osmosis equipment, users should provide a raw water quality analysis report. Our company's designers can help users determine the raw water pretreatment plan based on their water quality situation, in order to select reverse osmosis equipment reasonably and ensure the long-term and stable normal operation of reverse osmosis.
