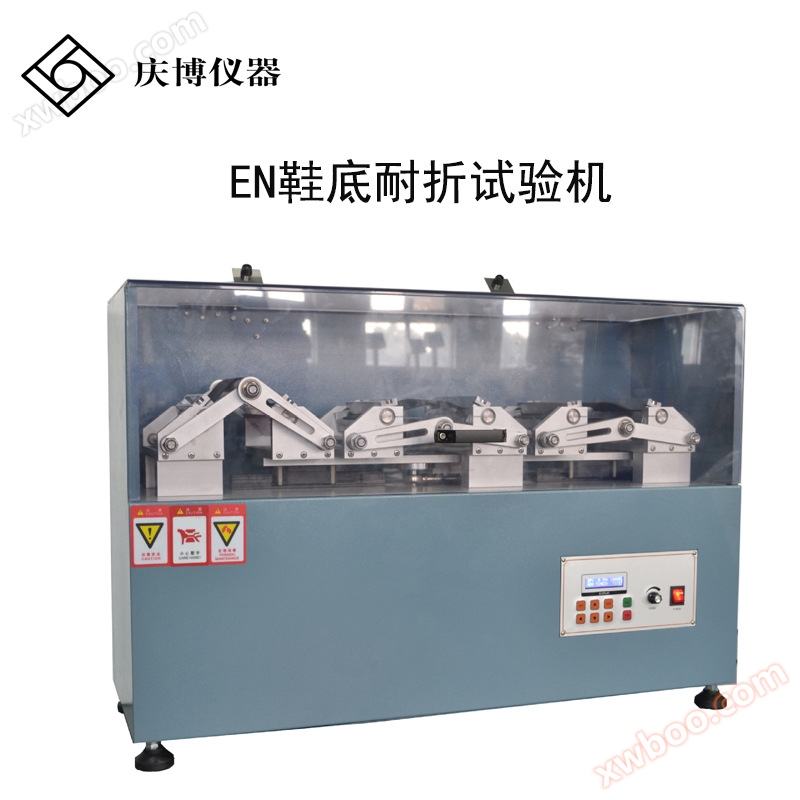

EN-344 EN Sole Bending Test Machine Sole Bending Test

1. Scope of application:

This machine is mainly used to measure the resistance of materials to repeated twists and turns, especially suitable for the construction of shoe soles. During testing, use a cutting knife to penetrate three small openings along the maximum bending stress line of the anti slip pattern on the sole. After bending at a specific speed for a certain number of times at a 90 ° angle, use a magnifying glass to inspect the stretchability of the sole.

This testing machine meets the requirements of EN-344 standard.

2、 Product specifications:

Bending angle: 90 °

Circular shaft diameter: 30mm

Bending speed: 0-135 revolutions per minute

Fixture width: 144mm

Can be tried simultaneously: 3 shoe soles

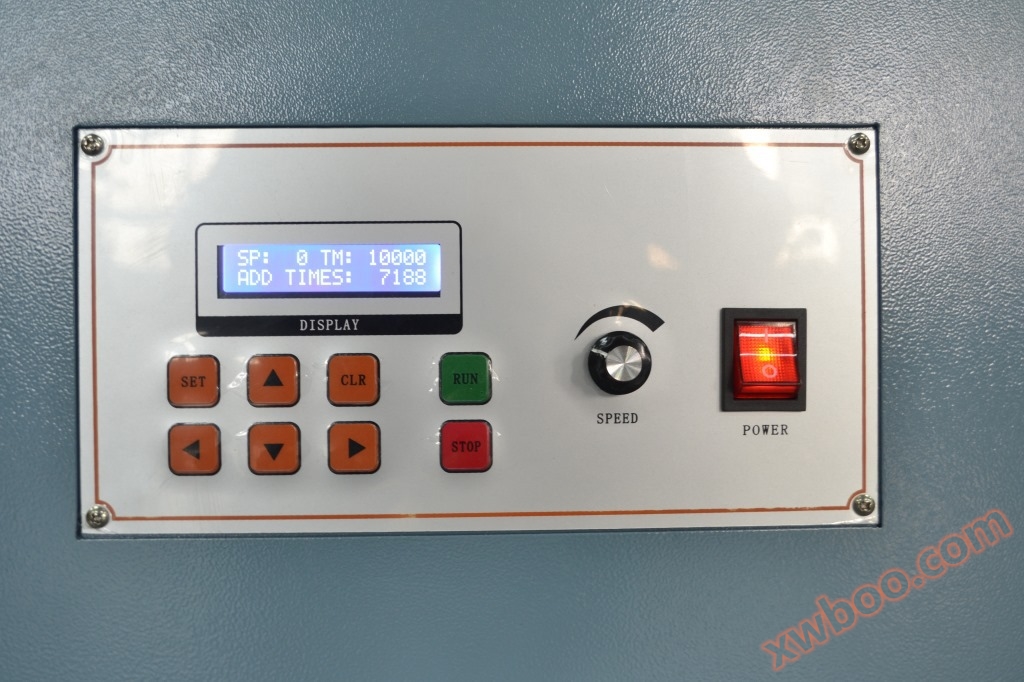

Counter: LED, 0~99999999

Horsepower: DC, 375W

Volume: 85 × 31 × 65cm

Weight: 68kg

Power supply: 1 ∧, AV220V，3A
