Epoxy resin gelation time tester
NegotiableUpdate on 11/20
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Epoxy resin gelation time tester $r $n Overview $r $n Hang a certain shape and buoyancy in the resin, drive the mechanism to make it perform simple harmonic motion in the vertical and plane with a fixed amplitude, and deploy it so that the plunger does rise during upward operation, while falling freely at a speed not faster than the simple harmonic motion. The time from when all the curing agent is added to the resin until the resin gel can just support the downward force of the plunger and is automatically detected as the gel time.
Product Details

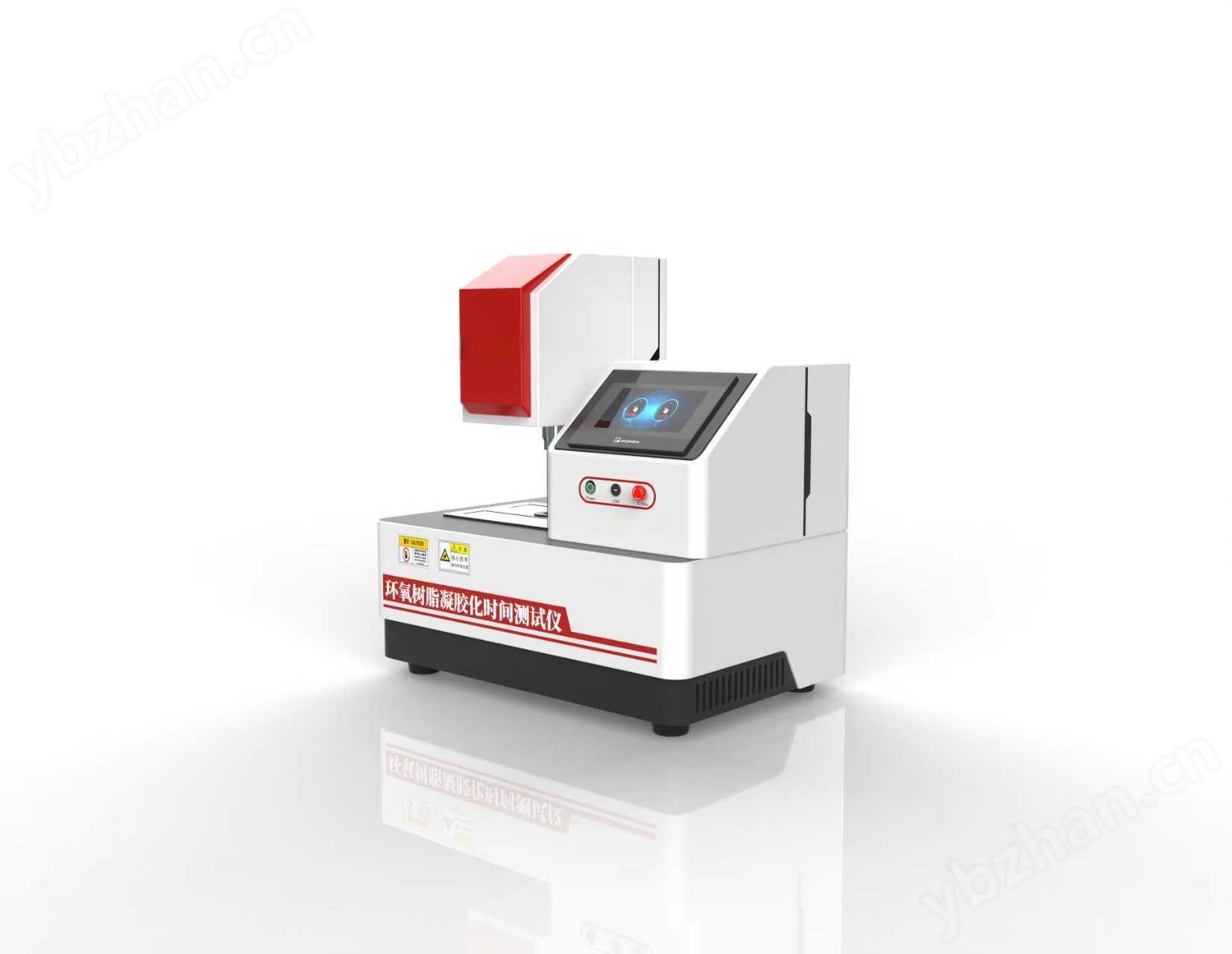

Epoxy resin gelation time tester
Overview
Hang a certain shape and buoyancy in resin with a basic meaning，By driving the mechanism to make it move in a fixed amplitude in a vertical plane in a harmonic motion and adjusting it, the plunger can indeed rise during upward operation，And during descent, it falls freely at a speed no faster than harmonic motion.Starting from adding all the curing agent to the resin，The time automatically detected when the resin gel can just support the downward force of the plunger is taken as the gel time.
execution standard
GB 12007.7-89 Determination of gel Time of Epoxy Resin
Main technical parameters
Control system: PLC
Operating interface: 7-inch color touch screen
1.Plunger: The plunger is made of stainless steel material.
The plunger rod is approximately 100mm in length and 3mm in diameter
The diameter of the disc is 22.1-22.3mm, with a thickness of approximately 1.5mm.
The total mass of the plunger and the suspension link connecting the gel tester is 16.2 ± 0.02g.
2.Sample cylinder:Cylindrical aluminum cans,
Inner diameter 45mm,
Height ≥ 75mm
Thickness of aluminum wall: 0.5mm,
3.speed：0~30r/min can be set
4.Reciprocal stroke: 12.7mm
5.Constant temperature oil bath: RT~300 ℃ ≥ 2L Temperature control accuracy: ± 1 ℃
6.Power supply: AC 220V ± 10%, 50Hz;
7.Specification: 450 * 400 * 650mm
Basic configuration:
Test host 1 copy
1 copy of instruction manual
1 certificate of conformity
1 copy of delivery receipt
1 power cord
1 set of wrench
Two sample booklets of product introduction
Epoxy resin gelation time tester
Overview
Hang a certain shape and buoyancy in resin with a basic meaning，By driving the mechanism to make it move in a fixed amplitude in a vertical plane in a harmonic motion and adjusting it to ensure that the plunger does indeed rise during upward operation，And during descent, it falls freely at a speed no faster than harmonic motion.Starting from adding all the curing agent to the resin，The time automatically detected when the resin gel can just support the downward force of the plunger is taken as the gel time.
execution standard
GB 12007.7-89 Determination of gel Time of Epoxy Resin
Main technical parameters
Control system: PLC
Operating interface: 7-inch color touch screen
1.Plunger: The plunger is made of stainless steel material.
The plunger rod is approximately 100mm in length and 3mm in diameter
The diameter of the disc is 22.1-22.3mm, with a thickness of approximately 1.5mm.
The total mass of the plunger and the suspension link connecting the gel tester is 16.2 ± 0.02g.
2.Sample cylinder:Cylindrical aluminum cans,
Inner diameter 45mm,
Height ≥ 75mm
Thickness of aluminum wall: 0.5mm,
3.speed：0~30r/min can be set
4.Reciprocal stroke: 12.7mm
5.Constant temperature oil bath: RT~300 ℃ ≥ 2L Temperature control accuracy: ± 1 ℃
6.Power supply: AC 220V ± 10%, 50Hz;
7.Specification: 450 * 400 * 650mm
Basic configuration:
Test host 1 copy
1 copy of instruction manual
1 certificate of conformity
1 copy of delivery receipt
1 power cord
1 set of wrench
Two sample booklets of product introduction
