HY-TY150 Projection Pressure Gauge

Product Introduction:

This product innovatively combines the technical principles of mechanical transmission, mechanics (elastic sensitive components), optical imaging, convex mirrors, etc. It has the characteristics of safety, convenience, and accuracy. This product utilizes optical principles to magnify and project the real-time pressure reading image of the dial through a convex lens onto a distant wall or floor through strong light, achieving remote reading. Realize clear projection indication within a 5m range, and adjust the projection distance according to customer's individual needs. Because it does not require the conversion and transmission of other devices, it expands the adaptability and scope of use of the instrument, and can replace the output signal instruments such as electrical contacts used in scenarios that require remote reading but do not require signal control functions. This product fills the gap in technology and products at home and abroad, and has been recognized by the provincial industrial new product (new technology) appraisal expert group as an internationally leading product. At present, one invention patent and one utility patent have been applied for the HY-TY150 projection pressure gauge.

Product parameters:

All technical indicators of this new product meet the requirements of Q/HQC 105-2020 "Projection Pressure Gauge"

1. nominal diameter: φ 150;

2. Range: -0.1 to 100MPa;

3. Accuracy levels: 1.6 and 2.5;

4. Installation method: Vertical installation;

5. Operating environment temperature: -40~70 ℃, relative humidity ≥ 85% RH

6. Working voltage and current: DC15-24V; 500～1000mA;

7. Projection distance: ≤ 5m

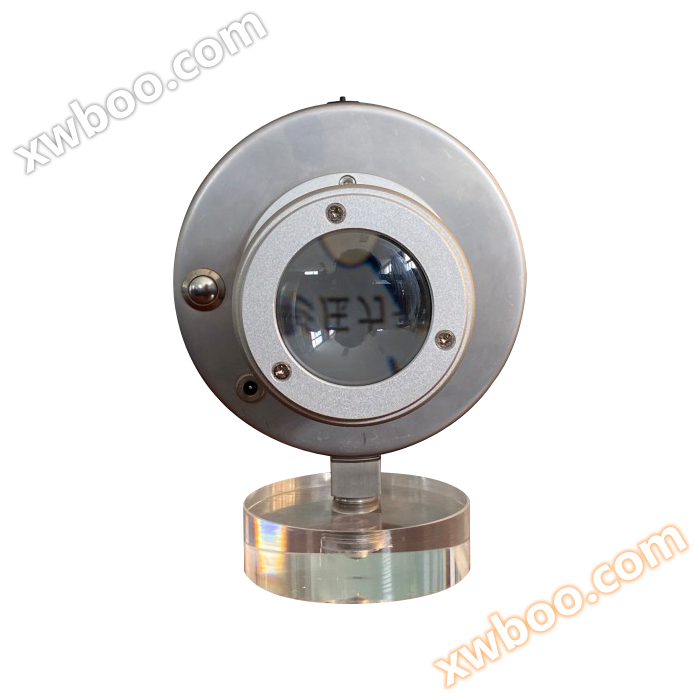

Related pictures：

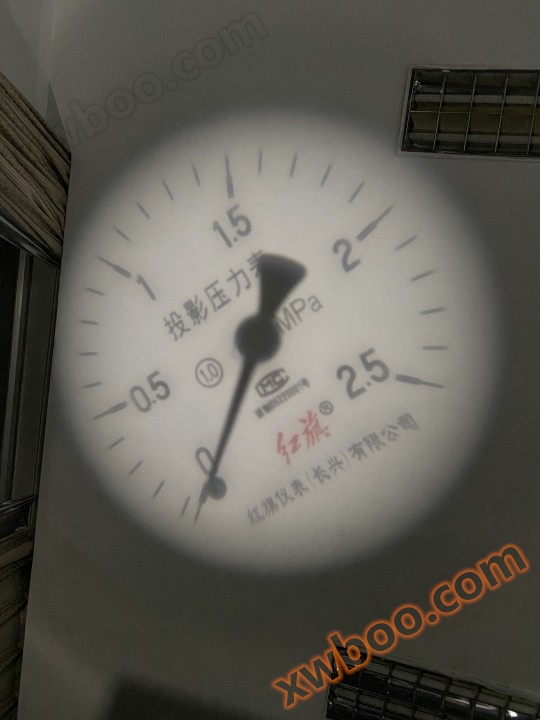

Projection rendering：
