High quality split type liquid level gauge _ Identify the craftsmanship and quality of British GP

Ultrasonic liquid level scoring systemProduct features:Shanghai Ultrasonic Liquid Level Gauge GP - Split Type - Strength Manufacturer
Easy to install and provides multiple installation methods;
Has lightning protection and short-circuit protection functions;
All devices are imported with high stability;
Automatic power adjustment, gain control, temperature compensation;
Adopting new waveform calculation techniques to improve the measurement accuracy of instruments;
The suppression function with interference echo ensures the authenticity of measurement data;
ETFE or PVDF sensor material, corrosion-resistant;
Capable of resisting various interference waves;
low failure rate;
High quality split type liquid level gauge _ Identify the craftsmanship and quality of British GP
GREENPRIMA split type ultrasonic level gauge from the UKApplication areas:
☆ Water and sewage treatment ☆ Pump room, collection well, biochemical reaction tank, sedimentation tank, etc
☆ Electricity, mining ☆ Mortar pool, coal slurry pool, butter storage tank, material yard or some mobile equipment
☆ Food industry ☆ Distilleries, grain warehouses, food material storage tanks, etc
Gopp split type ultrasonic level gauge from the UKTechnical parameters:
| model | PROLEV500 | PROLEV500D |
| name | Level gauge controller | Liquid level difference gauge controller |
| display | LCD displays measurement values, temperature, and measurement status |
| operation temperature | 0~70.0℃ |
| output | 2-channel 4-20mA+Modubus communication+2-channel relay |
| power supply | 90-260VAC,50/60Hz; |
| protection grade | IP65 |
| size | 144 x 144 x 106mm |
| Installation hole size | 138 x 138 mm |
| weight | 0.86kg |

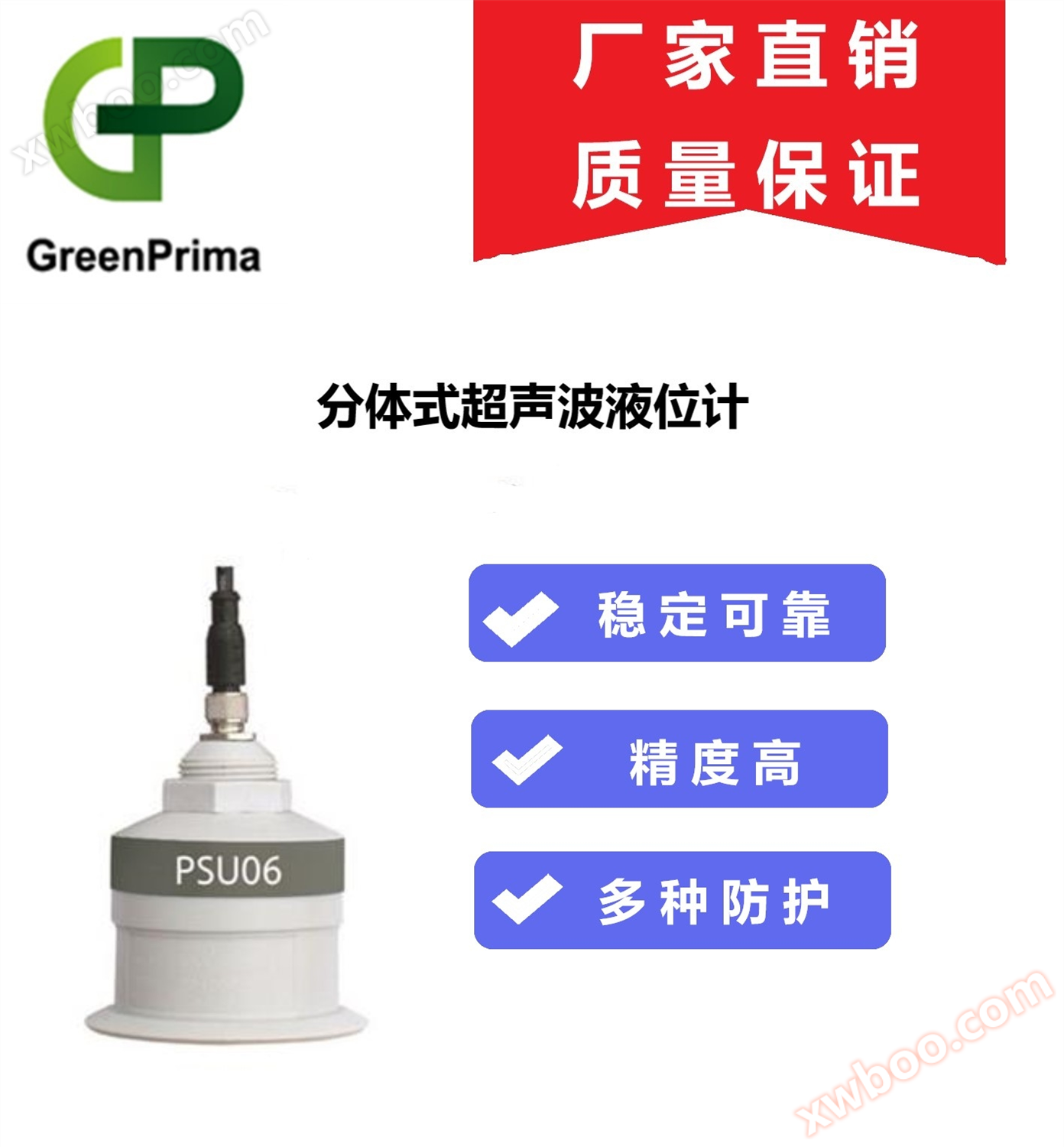

Split type ultrasonic level gaugeSensor parameters:
| model | PSU06 | PSU12 |
| range | 0.3~6m | 0.5~12m |
| accuracy | ±0.2%F.S. |
| resolution | 1mm |
| Z high pressure | 1.0bar |
| operation temperature | -30~70.0℃ |
| Shell material | PC/PP |
| cable | 10m |
| protection grade | IP68 |
| process interface | G1” |
| application | Solid/Liquid |
