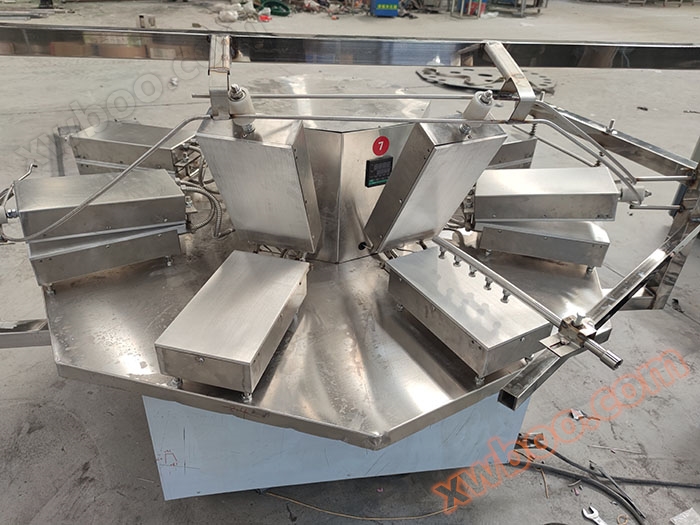

Large commercial Chicken rolls machine

The automatic grouting function of the Chicken rolls machine solves the problem of dropping and scattering, and will not pollute the console. The upper and lower parts of this machine are made of thickened aluminum alloy, eliminating iron plates. Aluminum plates have better thermal conductivity, and alloys are less prone to deformation. With the same amount of electricity, we can produce more products. But each customer's formula is different, and the temperature can be adjusted according to the formula. If there are more eggs, less water, and the temperature is around 160 degrees.

The mold pattern of the Chicken rolls machine can be divided into flat, square, stripe or customized, and the size of the heating plate can be customized. The temperature controller of Chicken rolls machine adopts digital display high temperature, which can control the temperature freely, and the color of Chicken rolls is even. The temperature controlled by digital technology can be easily seen at a glance, and the temperature control is very good. Make the processed Chicken rolls more uniform in color than other Chicken rolls. The color of the Chicken rolls in the middle and around is the same whether it is on the front or the back.The Chicken rolls machine adopts thickened insulation cotton, which saves energy and electricity. The size and thickness of Chicken rolls can be adjusted.

parameter

HJ-8 mold output 10kg+/h Size: 1400x1400x1500 Voltage: 220V/380V

HJ-10 mold production capacity 15kg+/h Size: 1700x1700x1500 Voltage: 220V/380V

HJ-12 mold output 20kg+/h Size: 2000x2000x1500 Voltage: 220V/380V

HJ - (8-15 molds) --- customized (the proportion of customized Chicken rolls machines is up to 48%)

The start-up commissioning method of the full-automatic Chicken rolls machine is introduced as follows:

(The beating process will be skipped here)

1. Check that all components of the host are properly connected, turn on the main switch, and the power indicator light will turn on

2. After checking that the power plug and air pipe of the glue dispenser are correct, plug them in and turn on the air pump

3. Open the host operation button, and the heating plate starts to rotate with the turntable

4. Turn on the heating switch and preset the temperature to the desired temperature on the intelligent temperature controller (depending on the thickness of the finished Chicken rolls)

5. Place the glue stick (mouth) in the center of the heating plate and tilt it upwards at an angle of about 5 °

6. Observe the temperature changes during operation, and when it reaches the preset temperature, turn on the paste switch to start automatic paste injection.

　　This series has the characteristics of solid body, beautiful and practical appearance, high degree of automation, and convenient operation. The prepared Chicken rolls has uniform color, crispy and delicious taste, and is clean and sanitary.

1) The products produced are crispy and delicious, with a uniform color;

2) Automatic adjustment of heating temperature;

3) The cutting amount is adjustable and easy to adjust;

4) You can freely change the size of the roll bar according to customer requirements.

5) The overall frame is welded with stainless steel square steel pipes, which will not rust and is easy to clean;

6) Equipment production, with a small footprint, can be arranged in parallel into production lines, making it convenient for large-scale production;

8) The equipment is stable, and all main components are imported to reduce the occurrence of failures;

9) It can greatly reduce the workload of workers, lower the skill proficiency requirements for operators, and make simple teaching easy to operate.

High cost performance, simple operation, full-automatic Chicken rolls machine features:

1. Automatic grouting. As long as the customer adds the dough slurry into the hopper, the machine will automatically sense whether the position of the plate is in place. When the sensing plate is in place, the heating plate will automatically stop and the slurry will be automatically injected into the dough slurry.

2. Adjustable grouting volume. There are various sales methods in the market, such as whole box, whole bag, and independent packaging. Some require larger and thicker molds to achieve higher weight. And some require appropriate size and thinness to achieve better taste and more quantity.

3. Paste without scattering. During the paste injection process of multiple Chicken rolls boards of the Chicken rolls machine, the paste will stop automatically and be collected clean. It will not cause the problem of dirty boards between boards, not only is it more hygienic, but it also does not waste.

Application scope of egg roll machine: cake room, bakery, tea restaurant, supermarket, shopping mall, wholesale trade, agricultural/market market, pastry shop, cake room, children's paradise, leisure food factory

　　It can be made into Chicken rolls with different stripes, squares and flat patterns.

It can be made into various grains Chicken rolls: such as corn, millet, black rice, sorghum, purple potato, red bean, sesame, banana Chicken rolls, etc.

　　Low oil and low sugar, with a clear and sweet taste that is not greasy, and a crispy texture that is suitable for all ages.
