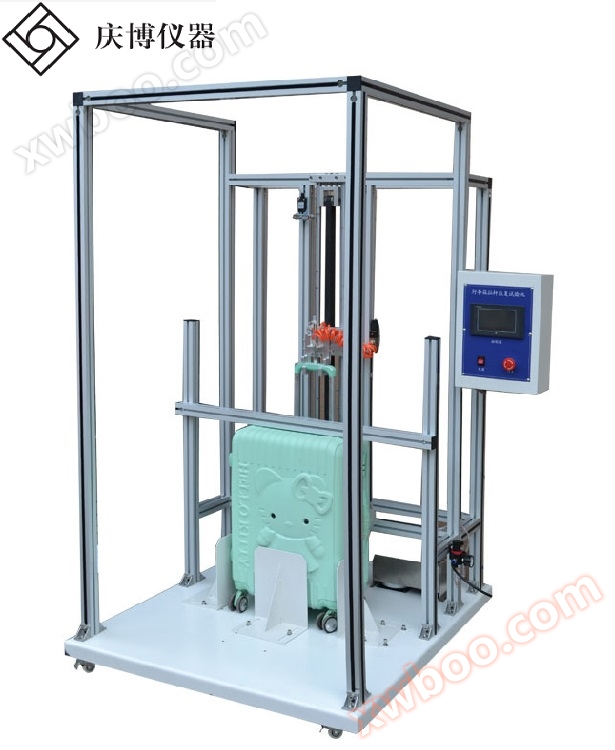

1. Introduction to the main functions of the instrument

Conduct reciprocating expansion and contraction tests on the pull rods of various bags and suitcases, with continuous stretching actions during the test to ultimately test for gaps, looseness, or connection rod failures, deformations, etc. in the pull rods

Test objective: Durability of luggage handles

2. Main technical parameters

Product specifications:
Test travel: 20-100cm, adjustable
Maximum stretching speed: 0~10 cm/sec, adjustable
Maximum compression speed: 0~10 cm/sec, adjustable
Test frequency: 0~999999 times Automatic shutdown

Test the power pneumatic cylinder
Maximum height of specimen: 100cm
Auxiliary equipment luggage fixed clamp seat
Usage pressure: 5-8kg/cm2
Machine size: 80X90X180cm (WXDXH)
Weight approximately: 120kg
Power supply: AC220V, 50/60Hz, 5A

Installation instructions

1. Testing environment: temperature 23 ± 2 ℃, relative humidity 60 ± 2%.

2. Place the instrument on a relatively flat testing platform.

3. Power connection: AC220V, 50Hz, 5A.

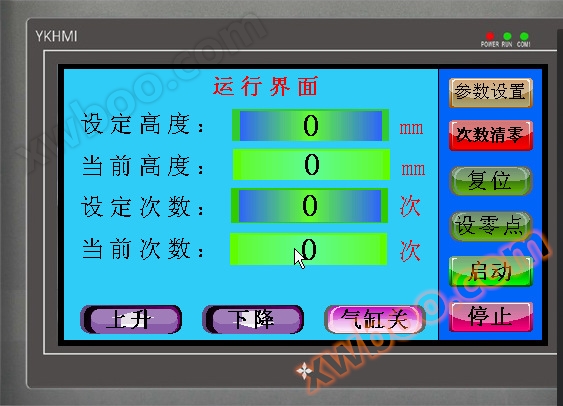

Operation interface

Test all parameters according to the testing requirements

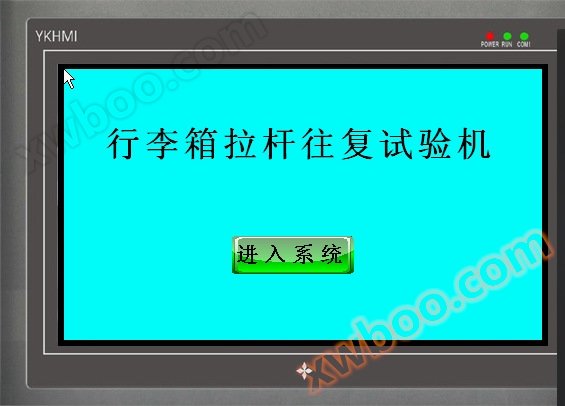

1、 Turn on the power and click to enter the system

2、 Set the test height.

1. The current height is the walking height

2. Set the required number of times

3. Automatic speed: machine running speed

4. Manual speed: manual rise and fall speed

5. Cylinder rise pause time

6. Cylinder descent pause time

Preparation before operation

1. Spray anti rust oil (WD-40) onto the rodless cylinder and wipe it clean with a clean cloth.

2. Turn on the power. Press the start button to make the rodless cylinder move up and down repeatedly

3. Spray anti rust oil repeatedly during exercise and wipe with a cloth. Until visually clean

Operation steps

1、 Sample preparation

1. Release the pressure rod

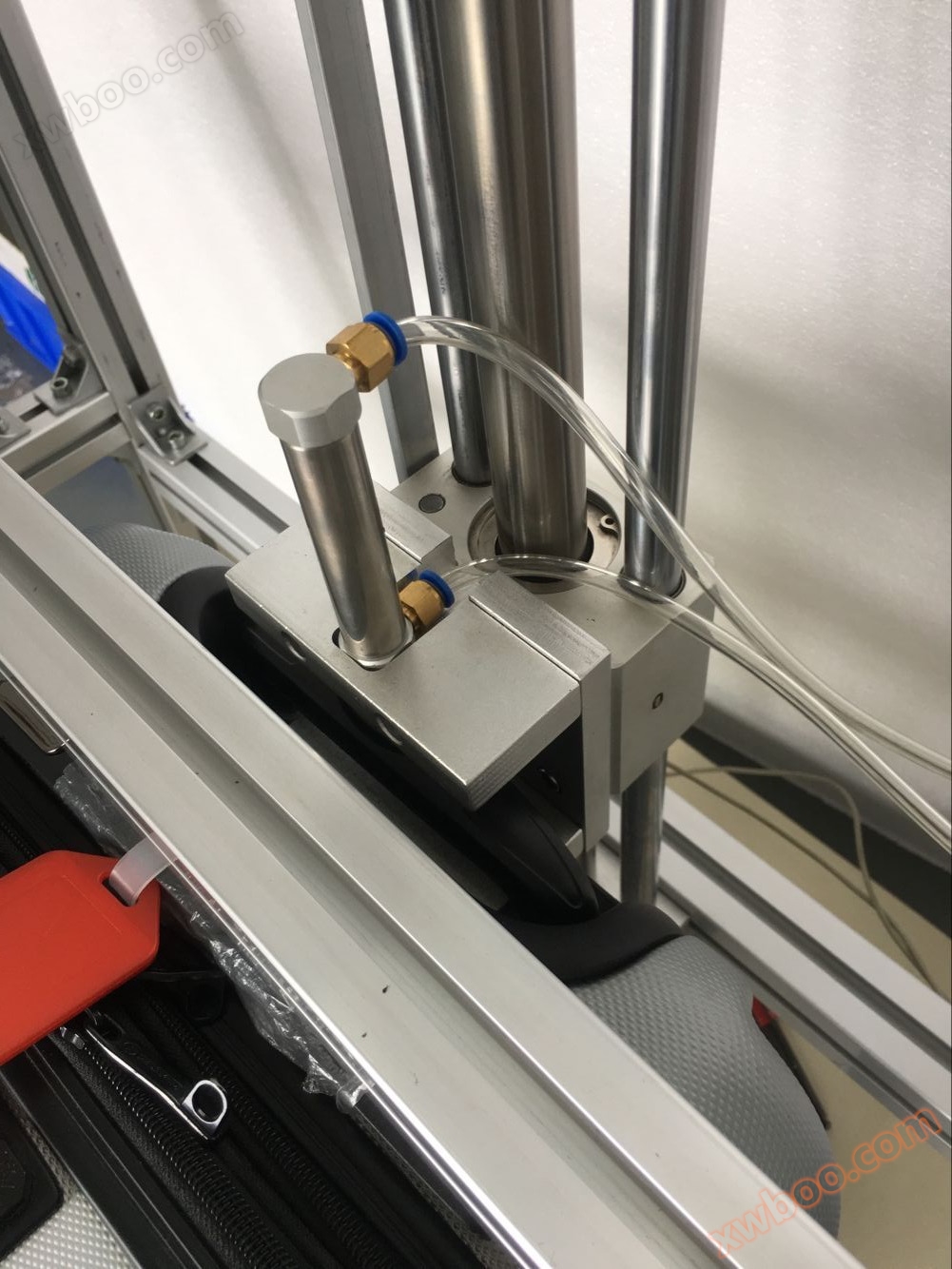

2. Place the luggage directly in the fixture and move the cylinder to the height of the luggage rod

3. Place the luggage handle into the fixture head, manually pull open one section, and then move the sensor to this cylinder position. Then sequentially install the positions of the following sensors.

4. Set the counting times according to the testing requirements

2、 Testing process

1 . Set the counting number

2 . Activate the start button. Conduct testing

3 . After the counting is completed, the machine automatically stops.

4 . Test completed

5 . Check the condition of the pull rod
