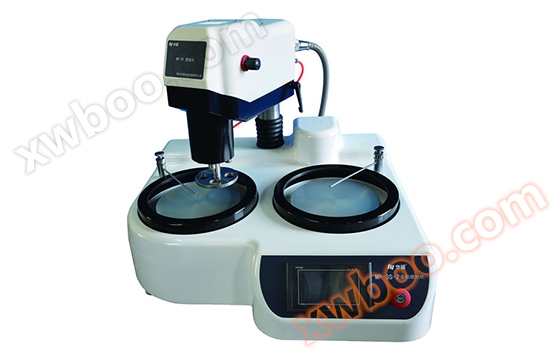

MP-3S-2 Automatic Grinding/Polishing Machine

MP-3S-2 Automatic Grinding/Polishing Machine

Automatic grinding and polishing head (pneumatic), dual disc full function, digital display

The MP-3S automatic grinding and polishing machine has advanced sample preparation functions, which ensure consistency and reproducibility of sample preparation results. This machine adopts a touch screen integrated control system, which makes the sample preparation process controllable. The grinding and throwing disc supports bidirectional rotation, and the speed can be adjusted freely within the specified range. Up to 6 samples can be ground or ground individually. The parameters such as sample pressure and working time are displayed on the LCD screen, making the user's operation more intuitive and convenient. This machine is suitable for automatic sample preparation in the process of rough grinding, fine grinding, rough polishing to fine polishing of metallographic specimens. It is an ideal choice for enterprises, research institutions, and metallographic laboratories in colleges and universities.

Technical Specifications

Model MP-3S-2

Number of grinding discs 2

Grinding and throwing disc diameter of φ 230mm

Grinding and throwing disc speed 50-1000r/min

Grinding and polishing head speed 5-100 r/min

Loading range 5-60 Newtons

Sample preparation time 0-9999 seconds

Sample diameter φ 30mm (customizable)

Prepare 4 samples (customizable)

Gas source 0.6-0.8MPa

Input voltage single-phase AC220V 50Hz

Input power 1100W

Dimensions 760mm * 680mm * 635mm

Net weight 70kg
