Mm125 copper foil tester milium

NegotiableUpdate on 04/02

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Brand: mil Model: mm125 Application: Micro resistance measurement of PCB copper foil Oz value, not affected by PCB board thickness Introduction: CCL copper foil detector mm125 series is a handheld copper foil substrate detector powered by a rechargeable battery, with digital display function and expandability of multiple Oz value displays. It can quickly display the Oz value detector for measuring PCB copper foil thickness, not affected by the thickness of the underlying glass fiber board. The measured data is extremely stable and reliable

Product Details

　　Brand:milesmodel:mm125

　　Application:Micro resistance measurement of Oz value of PCB copper foil, not affected by PCB board thickness

　　Introduction:

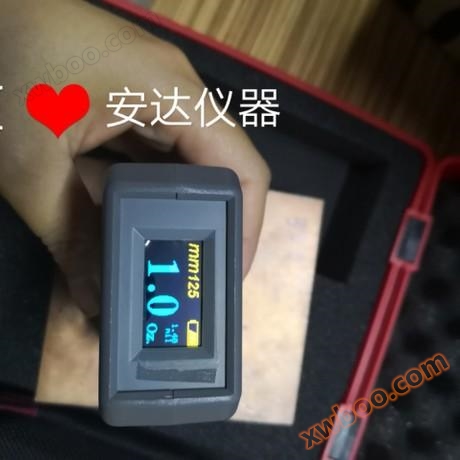

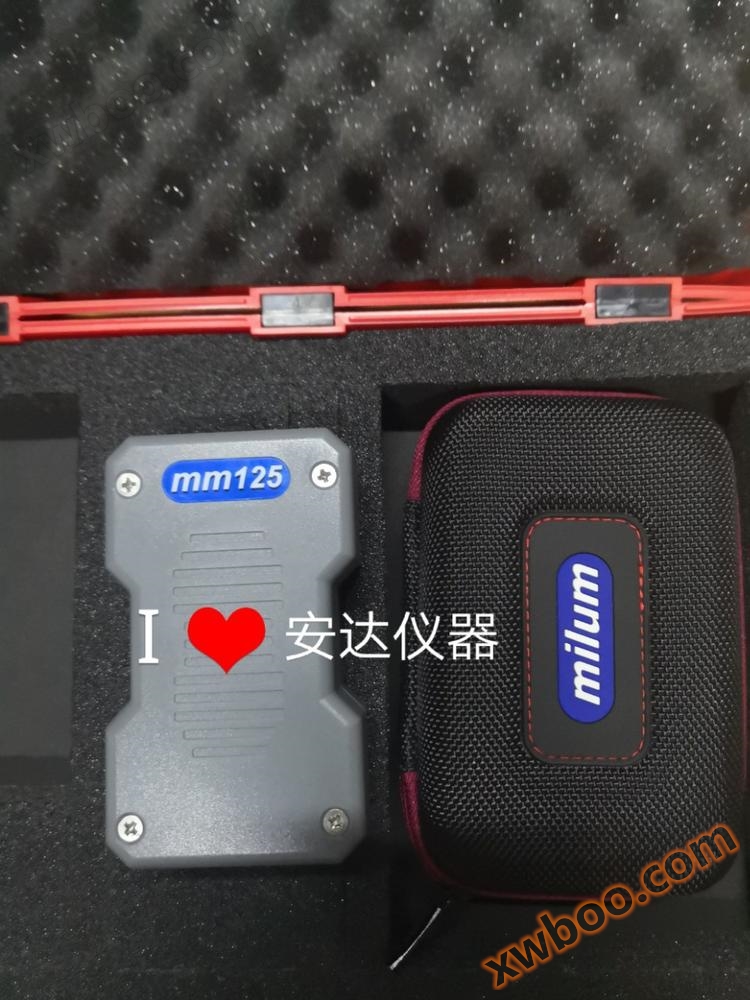

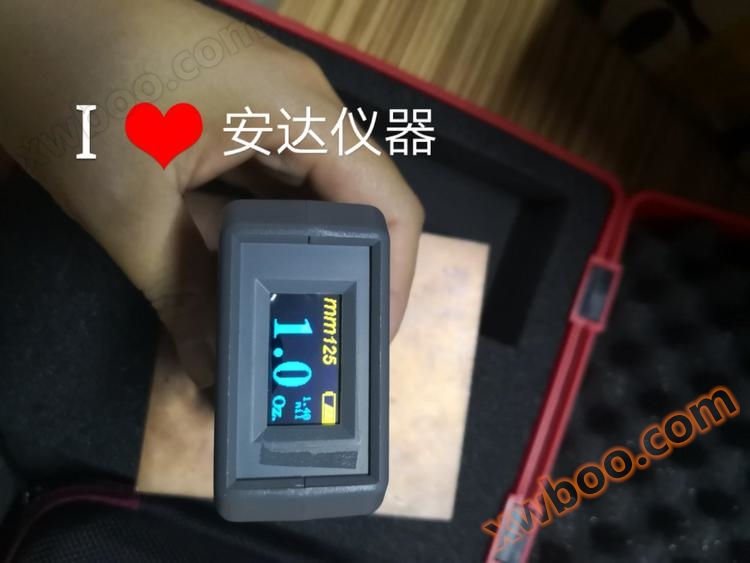

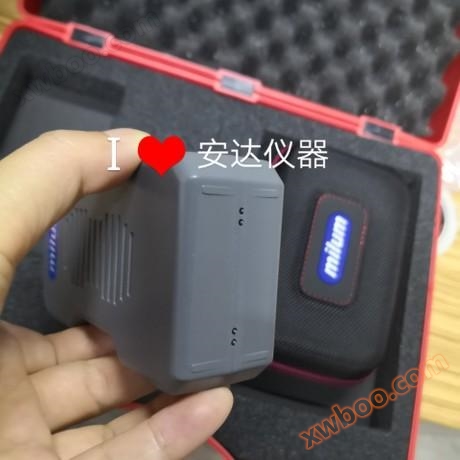

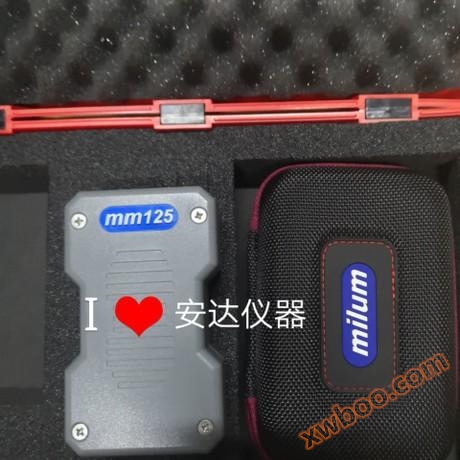

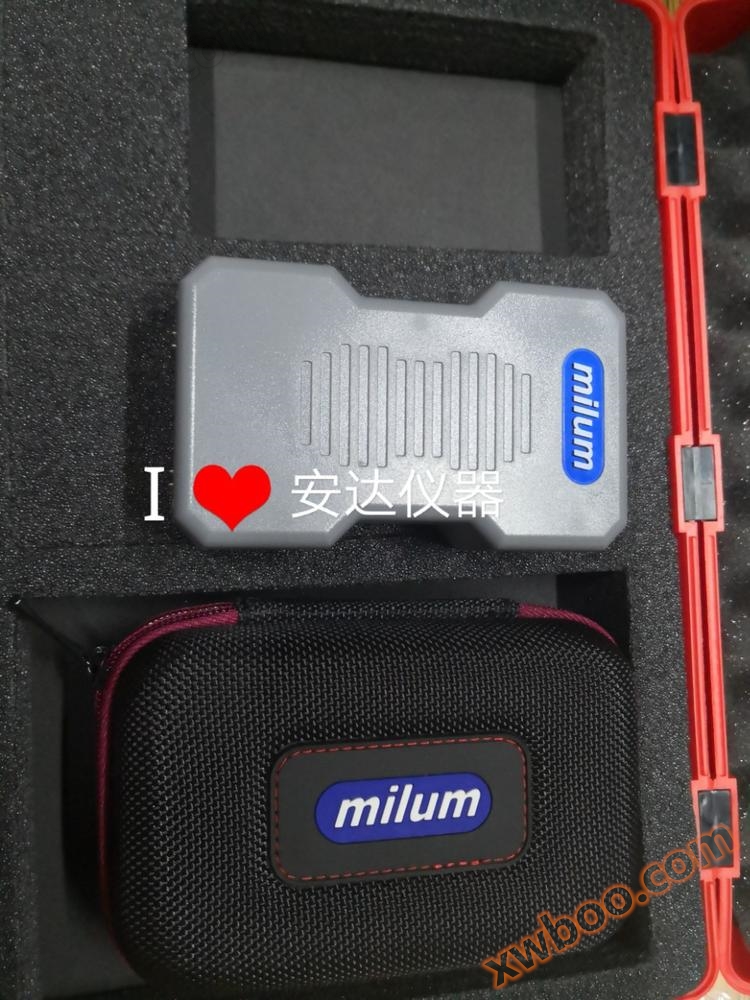

The CCL copper foil detector mm125 series is a handheld rechargeable battery powered copper foil substrate detector with digital display function and expandable display of multiple Oz values. It can quickly display the Oz value detector for measuring the thickness of PCB copper foil, and is not affected by the thickness of the underlying fiberglass board. The measured data is extremely stable.Produced globally, it is also a product made.

　　Features:The measurement mode is micro resistance measurement

Color digital display reading

Special Oz measurement range can be set according to customer needs

Ergonomic perfect design, easy to operate, and convenient to carry

No need for standard film calibration

Built in environmentally friendly rechargeable battery, can also be connected to AC power for operation

　　Specifications:Measurement range:1/8, 1/4, 3/8, 1/2, 3/4, 1, 2, 3, 4, 5 Oz (optional: 1/3, 1.5, 2.5, 6 Oz)

PCB small measurement area: 100X100mm, needs to be at least 30mm away from the board edge

PCB board thickness limit: none

Memory capacity: none

Size: (length) 100mm/(width) 60mm/(height) 32mm

Weight: 140 grams

Battery: 1 Ni-H rechargeable (size 9) with AC adapter

Battery life: Rechargeable and reusable up to 1000 times
