Muffle furnace (ashing furnace)

NegotiableUpdate on 12/12

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

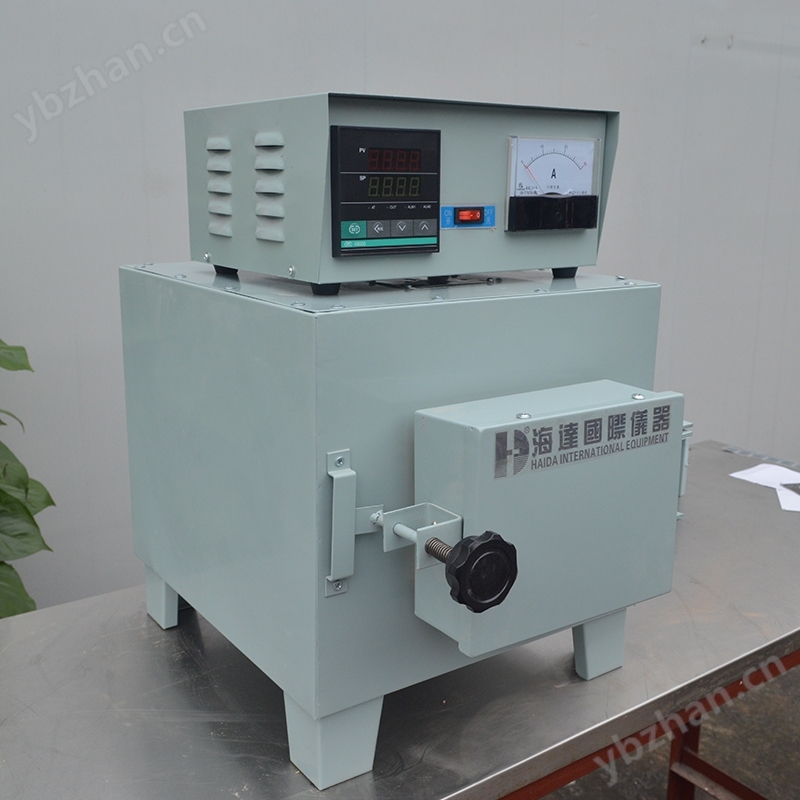

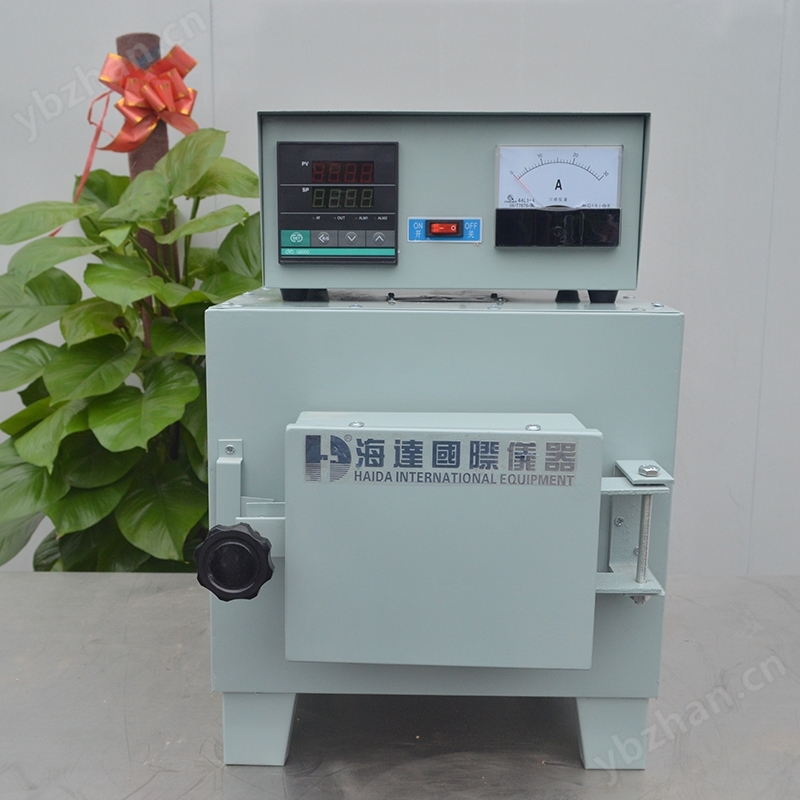

HD-E805 Muffle Furnace (Ashing Furnace): $r $n stainless steel shell, high-quality refractory material with observation holes on the door, vacuum formed fiber module or lightweight ceramic rear wall with ventilation holes, can be connected to a fan or catalytic device grounding leakage circuit breaker to protect personal safety. Equipped with process controllers C6, C6D, or S27 (optional) respectively

Product Details

马弗炉（灰化炉）

1、 Muffle furnace/Ashing furnaceIntroduction
1. Stainless steel shell, high-quality refractory material with observation holes on the door, vacuum formed fiber module or lightweight ceramic rear wall with ventilation holes, can be connected to fans or catalytic devices, grounding residual current circuit breakers to protect personal safety. Equipped with process controllers C6, C6D, or S27 (optional) respectively

IIMuffle furnace/Ashing furnacepurpose
It can be widely used in various industries such as plastics, rubber, packaging, instrumentation and machinery, metallurgy, and chemical engineering. It can be used for chemical analysis and physical testing in laboratories of industrial and mining enterprises, scientific research institutions, and for heating general small steel parts during heat treatment

IIIMuffle furnace/Ashing furnaceTechnical Specifications

model/Parameters	power	temperature	Inner box dimensions(Height * Width * Depth)	voltage
HD-E805	2.5KW	1000°	80X120X200	220V
HD-E805-1	2.5KW	1200°	80X120X200	220V
HD-E805-2	4KW	1000°	120X200X300	220V
HD-E805-3	5KW	1200°	120X200X300	220V
HD-E805-4	10KW	1200°	250X160X400	380V
HD-E805-5	12KW	1000°	200300500	380V
