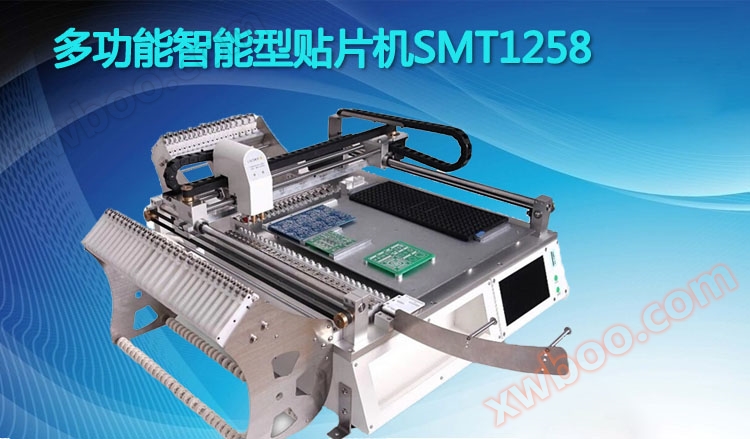

Multi functional intelligent SMT surface mount machine SMT1258
NegotiableUpdate on 02/25
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Detailed information: Fully automatic surface mount machine, specialized in meeting the needs of domestic electronic factories, SMT processing factories for mounting 0603, 0805, 1206, etc., effectively improving the accuracy and efficiency of mounting and saving a lot of labor costs
Product Details
detailed information
Fully automatic surface mount machine, specialized in meeting the needs of domestic electronic factories and SMT processing plants for mounting 0603, 0805, 1206, etc., effectively improving the accuracy and efficiency of mounting and saving a lot of labor costs. The product has been widely put into the market, with stable use and simple operation, making it a highly cost-effective fully automatic mounting machine.
Maximum mounting size |
370MM*450MM(X*Y),When feeding two rows of materials370MM*390MM(X*Y); |
Number of mounting heads |
2individual |
Maximum number of material stacks for tape production |
50All of them8MMIn the case of ribbon weaving, the left feeding groove will be made into a standard rear feeding groove option |
Maximum Bulk |
ICQuantity of material stack10individual |
full page |
ICQuantity that can be placed1individual |
Quantity of tube loading stack |
4All of themSO8In this case, vibration Feida optional) |
The fastest mounting speed |
10000PCS/H |
positioning accuracy |
0.03MM |
Fastest moving speed |
2M/S(Performance comparable to servo system) |
Support component size |
0402-5050，SOP,TQFPWait, support tape width（8MM，12MM，16MM，24MM）， |
The thickness of the braided component is less than |
3.5MM |
Equipment size |
L870MM*W640*H336(A row of feeding slots on the left),L870MM*W885*H336(Left and rear two rows of feeding slots) |
vacuum air pump |
Brushless hollow cup silent type,-92KPA |
Number of air pumps |
3individual |
power supply |
220V，50HZ(Can be switched to)110VExchange [Export] |
Average power |
160W |
weight |
65KG(Without packaging)35KG） |
Mounting area:
When only feeding on the left side: maximum mounting area370mm * 450mm(X*Y)
Simultaneous feeding on the left and rear sides: maximum mounting area370mm * 390mm(X*Y)
Feeding method: left side feeding and rear side feeding,Maximum achievable 50 Install different materials to meet the needs of most
Demand for electronic products.
Improvement point: There are more types of stickers available.
increaseICMechanical corrector.
Improvement points:ICOrthodontics, the added orthodontic appliances have strengthened the installation effect
Add standard disk packagingICMounting function.
Improvement point: Supports disk installationICThe installation of this product has enhanced the overall performance and functionality of the machine.
Note: If the user has multiple typesIC,Can be contacted for customization
Specially madeICTray, capable of multiple operations simultaneouslyICInstallation and tray customization costs 300 first/Next time.
Increase vibration in Feida
Improvement point: Support for pipe installationICThe installation of this design makes the functionality even more powerful.
Note: For tubular structuresICThere are many products that can be optionally equipped with this Feida. Optional cost:
1000 first/Only one device can be installed.
Improved positioning method:
Yellow marking: Fixed positioning strip
Red marker: movable locator bar
Blue mark: movable positioning needle, (available in multiple specifications, factory configuration) 12 The flexibility of positioning is not high, and it cannot achieve optimal performance.
The biggest highlight of this design is that multiple different products can be placed in the mounting area, saving the trouble of frequent material changes for different products. In addition, the flexible positioning performance minimizes the distance between material retrieval and pasting, improving the efficiency of pasting.
Positioning pin positioning strip.
Improvement of feeder:
Improvement point: In the early days, the feeder of the product was single, which was suitable for different products and different needs
Changes are quite inconvenient, but the biggest highlight of this design is that it can cater to each customer's needs based on their own preferences
Tailored circuit boards can achieve optimal mounting efficiency.
Electric nylon stripping clutch
Our company's patented product uses a feeder equipped with a nylon stripping clutch, which can be controlled by
Adjust the strength of nylon peeling on the interface.
Improvement point: The nylon peeling used in early products adopts a winding method, with mechanical adjustment of force and shorter lifespan compared to electric adjustment. The winding method requires cleaning the nylon inside the winding disc at regular intervals. This design has no limit on the length of nylon, making it more convenient for customers to use.
Screen improvement:
Improvement point: Compared to earlier machines, it uses
3.2 Inch resistive touch screen,3 Upgrade the substitute product to 7Inch high-definition capacitive touch screen, more convenient to operate. Motor Feedback-Systems
Improvement point: Early surface mount machines did not come with a drive feedback system, making it impossible to detect motor out of step.3 The substitute product has been addedX,Y,Z，3 The axis feedback system ensures that there is no longer any out of step phenomenon during the entire machine operation, and external force impact will automatically reset.
High voltage drive system
Improvement points: In the early days, ordinary drive modules were used in SMT machines, and the motor operating speed was limited,3 Substitute products
By incorporating a high-voltage drive system, the entire motion system has been more than doubled.
