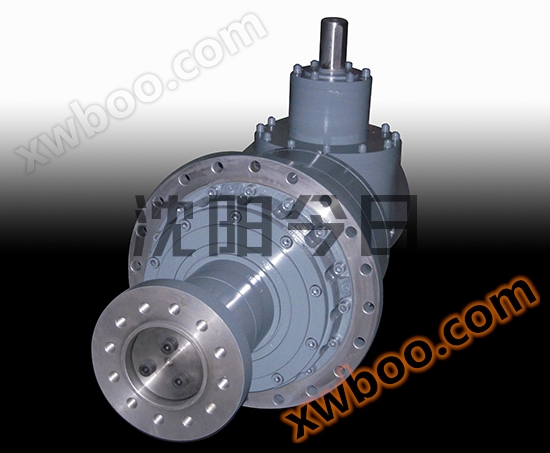

Non standard planetary gearbox

Non standard planetary gearboxworking principle

A ring gear (A) is tightly connected to the gearbox housing, with a sun gear (B) driven by external power at the center of the ring teeth. Between the two, there is a set of planetary gear sets (C) consisting of three gears evenly divided and combined on a tray. The set of planetary gears relies on the output shaft, inner ring gear, and sun gear support to float during this period;Planetary ReducerWhen the power on the input side drives the sun gear, it can drive the planetary gear to rotate and follow the trajectory of the inner ring gear to revolve around the center. The rotation of the planetary gear drives the output shaft connected to the tray to output power.

Important advantages

The internal gears of the planetary reducer are made of 20CrMnTi carburizing quenching and gear grinding, which have the characteristics of small size, light weight, high load-bearing capacity, long service life, smooth operation, low noise, large output torque, high speed ratio, high efficiency, and safe performance. It has the characteristics of power splitting and multi tooth meshing for exclusive use. It is a new type with broad universalityspeed reducerThe maximum input power can reach 104 kW. It is suitable for industrial sectors such as lifting and transportation, engineering machinery, metallurgy, mining, petrochemicals, construction machinery, light industry and textiles, medical equipment, instruments and meters, automobiles, ships, weapons, and aerospace. The planetary series new varieties include WGN fixed axis transmission reducers, WN mother and child gear transmission reducers, and elastic load less tooth difference reducers.
