Portable total solar radiation recorder

【 Model FT-BF1 】 Professional technology and attentive service, Fengtu IoT is trustworthy ✨ In practical applications,Portable total solar radiation recorderBeing able to provide accurate solar radiation data for meteorological departments can help analyze weather change patterns and predict climate change trends; In the field of solar energy utilization, it can help evaluate the abundance of solar energy resources and provide scientific basis for the selection, design, and operation of solar power plants; In terms of agricultural planting, total solar radiation data plays an important guiding role in the rational arrangement of crop planting and adjustment of lighting conditions; In the field of building energy efficiency, understanding the total solar radiation can help optimize the lighting design and energy utilization efficiency of buildings.

1Portable total solar radiation recorderProduct Introduction

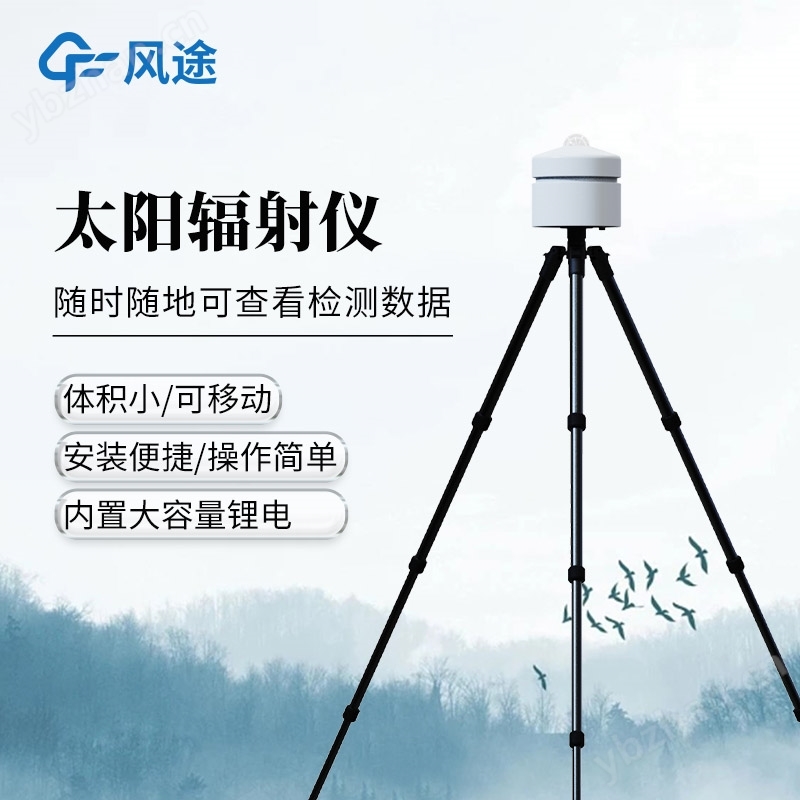

The BF1 solar total radiation analyzer is a high-precision automatic meteorological observation device that is highly integrated, low-power, can be quickly installed, and is easy to use for field monitoring.

This device is debugging free, can be quickly deployed, and is suitable for obtaining various emergency meteorological short-term observations, mobile meteorological monitoring, and other meteorological data. Widely used in the measurement of solar radiation energy in meteorological, solar energy utilization, agriculture and forestry, building material aging, and atmospheric environment monitoring departments.

This product complies with the technical specifications of ISO9060 and the World Meteorological Organization (WMO) CIMO Guide.

This product complies with the latest Chinese meteorological standard "GB/T 19565-2017 Total Radiation Sensor".

2、 Product Features

1. Small size, movable, convenient for monitoring in different environments

2. Fully packaged, easy to install, simple to operate, single person can install by hand

3. GPRS networking

4. Can connect to mobile devices and view detection data anytime, anywhere

5. Support modbus485 sensor expansion

6. Built in large capacity lithium battery, ultra long standby time

7. Supporting IoT data display, storage, and analysis platform

3、 Technical indicators

1. Built in interface

Modbus485 interface: GX-12-4P aviation plug, output power supply voltage 12V

Equipment configuration interface: GX-12-4P aviation plug, input voltage 5V

Collector power interface: GX-12-4P, input voltage 8-16V, with RS485 output JSON data format

2. Power supply

Built in lithium battery power supply: DC12V ± 0.5V peak current 10A

Lithium battery: 12000mAh DC10.8-12.6V

Working hours: continuous 24 * 9 hours (9 days)

Charger: 12.6V/5A

3. Parameters

Working environment: -10~+45 ℃, humidity ≤ 100%, no condensation

Communication method: Supports Modbus 485 and JSON data output

Working current:<170mA

External sensor protocol: modbus485

Maximum expansion of external sensors: 5

External sensor voltage: 12V

Data upload interval: 60-3600s

Sensor parameters

Response time: ≤ 20 seconds

Annual stability: ≤± 3%

Zero drift: ≤ 10 W/m ²

4、 Product Structure Diagram

5、 Product dimension diagram

6、 Introduction to upper computer software

1. PC standalone version data receiving, storage, viewing, and analysis software

2. Support serial data reception, processing, and display

3. Supports JSON strings

4. Can store historical data

5. Support self-service addition, deletion, and modification of monitoring parameter protocols, names, icons, etc

6. Support data post-processing function

7、 Introduction to Android APP

1. Android standalone version data receiving, storage, viewing, and analysis software

2. Supports Bluetooth data reception

3. After the phone goes into sleep mode, the software backend receives and processes it

4. Automatically add devices to JSON data

5. Supports viewing, analyzing, and exporting historical data tables, as well as displaying curves and viewing odd numbered data points.

6. Support data post-processing function

8、 Introduction to Cloud Platform

1. CS architecture software platform, supporting direct observation through mobile and PC browsers without the need for additional software installation.

2. Support multi account and multi device login

3. Support real-time data display and historical data display dashboard

4. Cloud servers and cloud data storage are stable, reliable, easy to scale, and load balanced.

5. Support SMS alarm and threshold setting

6. Support map display and viewing device information.

7. Support data curve analysis

8. Support data export in tabular format

9. Support data forwarding, TCP forwarding, HTTP protocol, etc.

10. Support data post-processing function
