Product Name: Pulse Electrolytic Power Supply Model: GKP-FB4-100A/24V Product Usage: Suitable for use in electrolytic chemical industry, electrolytic wastewater, electrolytic wastewater, electrolytic copper, manganese, antimony, silver and other non-ferrous metal electrolytic polishing and other places where the electrolytic industry requires direct current power supply

Product Details

Product Name:pulseElectrolytic power supply

Model: GKP-FB4-100A/24V

Product use: Suitable for electrolytic chemical industry, electrolytic wastewater, electrolytic wastewater, electrolytic copper, manganese, antimony, silver and other non-ferrous metal electrolytic polishing and other places where the electrolytic industry is required to be used as a DC power source.

banner-5

GKP seriesPulse electrolysis power supplyIt is the latest generation electrolytic power supply product, also known as flat wave/bidirectional pulse adjustable switching power supply; It rectifies AC power into DC high voltage power supply, generates low voltage high current power supply through high-frequency voltage conversion and high-frequency rectification, and then filters it into pure DC power supply through LC, and then sends it to an asymmetric full bridge conversion circuit (also known as chopper circuit) to generate an artificial flat wave (i.e. pure DC) or bidirectional pulse square wave output. Due to the advanced working principle, dual core microcomputer control, and large screen LCD display, this switching power supply has a series of advantages that ordinary power supplies do not have, such as beautiful appearance, intuitive display, fast control speed, energy saving, lightweight, adjustable output waveform duty cycle, and easy operation. The GKP series switching power supply is manufactured using semiconductor components from companies such as MOTOROLA, IR, FAIRCHILD, etc. It is reliable in operation, fully functional, and widely used, especially suitable for electrolytic chemical industry, electrolytic wastewater, electrolytic copper, manganese, antimony, silver and other non-ferrous metal electrolytic polishing and other places that require direct current power supply in the electrolytic industry.

【Product Usage】

pulseElectrolytic power supplySuitable for use in electrolytic chemical industry, electrolytic wastewater, electrolytic wastewater, electrolytic polishing of non-ferrous metals such as copper, manganese, antimony, silver, and other places where the electrolysis industry requires direct current power supply.

pulseElectrolytic power supplyHas the following characteristics:

1. Strong reliability, ensuring safe operation of equipment and reducing the occurrence of failures.

2. Comprehensive protection functions, including input overvoltage protection, undervoltage protection, short circuit protection, output overheating, overcurrent and phase loss protection, etc.

3. Small size, light weight, high efficiency, high control accuracy, saving electricity and space.

4. High technical content, strong stability, and improved work efficiency.

5. Digital display, intuitive and clear.

6. The control methods are divided into local control or remote control (PLC split type), and multi cluster control, with simple and convenient operation.

7. The box is made of galvanized sheet baked powder, and the internal design of the equipment is a sealed structure, which is resistant to acid and alkali, and corrosion-resistant, increasing the service life of power products in harsh environments.

【Working principle of power supply】

【Technical Parameters

output waveform	Flat wave, forward and backward pulse square wave adjustable
Adjustable pulse frequency range	3～1200Hz
Number of positive and negative pulse combinations	Positive 10, negative 10, a total of 121
Adjustment range of positive and negative pulse duty cycle	0～100%
Maximum power setting	999999
Maximum timing duration	9999 S
Ripple coefficient during flat wave operation	≤5%
conversion efficiency	≥90%
control accuracy	≤0.1A/V
Voltage stability value	≤0.5%
Stable current value	≤1%
output voltage	0～15V
output current	0～30A
Output control mode	Voltage stabilization/current stabilization convertible
Output protection method	Voltage limiting, current limiting, and overheat protection within rated limits
Input protection method	Undervoltage protection
working method	Can work continuously at full load without interruption
cooling method	forced air cooling

脉冲电源操作界面1

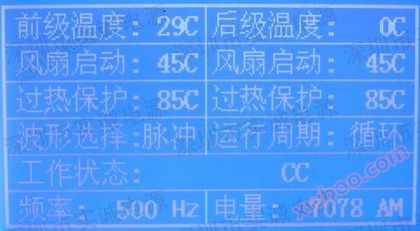

脉冲电源操作界面2

脉冲电源操作界面3

【Naming of Conventional Power Supply Models】

实诚电源型号命名

Model code	GK:High frequency switching power supply
	GKP: Microcomputer controlled high-frequency switching power supply
	GKRS: 485 bus communication control high-frequency switching power supply
cooling method	F: Air cooling S: Water cooling Y: Oil immersed water cooling
output waveform	B1: Standard pulse square wave (frequency has been set and cannot be adjusted)
	B2: Flat wave (also known as pure DC)
	B3: Unidirectional adjustable pulse (output frequency, duty cycle, pulse number adjustable)
	B4: Flat wave/Bidirectional adjustable pulse wave
	B5: Flat wave/mixed wave bidirectional adjustable pulse wave
Rated output current	20: 20A500: 500A1000: 1000A
Rated output voltage	06: 6V12: 12V24: 24V

Note: Special customized power supply models are provided separately

【Product Specifications】

model	Specification/MM	cooling method	Output current/DC. A	Output voltage/DC. V
GKP-FB4-20A/15V	430×410×150	air cooling	20A	15V
GKP-FB4-30A/15V	430×410×150	air cooling	30A	15V
GKP-FB4-100A/20V	430×410×150	air cooling	100A	20V

Our company can quickly customize various special specifications of power products for different functional purposes according to customer requirements, with current ranging from 1 to 10000A and voltage ranging from 1 to 500V.
