Single head heating tube with flange

NegotiableUpdate on 08/14

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Single head electric heating tube - Armored single head mold heating tube

Product Details

Single head electric heating tube-Armored single head mold heating tube Length: Supports non-standard customization Voltage: Supports non-standard customization Power: Supports non-standard customization Can be applied to heating new energy vehicles, lithium battery packaging machinery, smokeless barbecue grills, plastic molding molds, and hot pressing ..

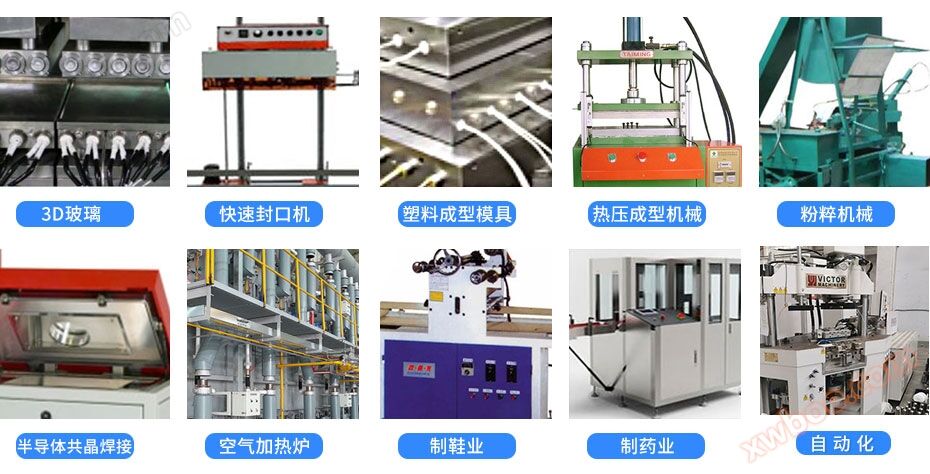

Hequan InstrumentArmored single head mold heating tube Electric heating elements that can be applied to new energy vehicle heating, lithium battery packaging machinery, smokeless barbecue grills, plastic molding molds, hot pressing molding machinery, cigarette machinery, pharmaceutical machinery, footwear industry, 3D curved glass molding machines, 3D printers, packaging machinery, extruders and other equipment. All models are manufactured according to CE standards.

Product features:

1High service life, advanced design of internal structure, using imported high-purity magnesium oxide new rods and filling materials, super strong thermal conductivity,Uniform heating and good thermal conductivity.

2Using special grinding equipment to ensure the original appearance size, closely cooperating with the assembly of the equipment, it has the characteristics of high thermal efficiency and fast heat dissipation, and is directly shipped from the factory.

合泉单头加热管

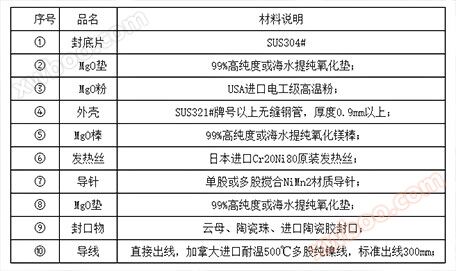

模具加热管材质

模具加热管剖面图

Spring sheathed electric heating tube (single head heating tube)
Diameter of electric heating tube	φ2.8mm，φ3mm，φ4mm，φ5mm，φ6mm，φ8mm，φ9.5mm，φ10mm，φ12mm，φ16mm Wait, or with a diameter of 2.0mm to 35mm
Diameter error	-0.02mm-0.08mm
Electric heating tube material	SS304，SS321，SS316L，INCOLOY840
Insulation material	Highly imported magnesium oxide powder
Heating wire	Ni80Cr20
watt density	Maximum 40W/CM2
Usage temperature	The maximum temperature on the pipe gauge is 927 ℃
Electrical performance	Leakage current less than 0.5mA
Input power supply and power	Customized on demand, with a power deviation of+5% -5%
Wiring Method	Direct or indirect outgoing lines
Equipped with temperature measurement model	Adopting imported temperature sensing wires (K-type, J-type)

Details highlight product quality

: Imported materials, imported quality
Unique design concept, using imported raw materials (SUS321 stainless steel seamless tube, UCM magnesium oxide powder imported from the United States, nickel manganese wire lead out electrode, BGH heating wire imported from Germany, etc.) with reliable safety

: Taiwan technology, fast and uniform heating
We produce various types of single ended electric heating tubes with outer diameters ranging from 1.8mm to 35mm and unlimited length. We are the leading factory in the industry that achieves the smallest diameter and longest length of direct output and high-power single ended electric heating tubes
