Small reflow soldering QS-5100

Realize welding work in a static state, capable of attaching surface mounted components with the narrowest spacing

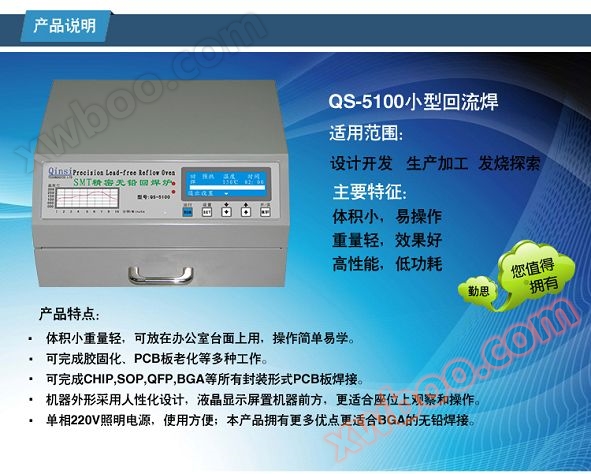

1Small desktop lead-free reflow soldering/SMT reflow soldering QS-5100Product Introduction

QS-5100 InfraredReflow oven”A reflow oven is a desktop reflow equipment used for producing and repairing various process products such as SMT. This product uses high-efficiency far-infrared heating elements and distributed thermocouple temperature measurement devices. By precise control of the microcomputer, the temperature curve of the reflow furnace is controlled more accurately and the temperature of the reflow plane is more uniform. Fully adaptable to the reflow requirements of various alloys and lead-free solder materials. Its temperature curve is precisely adjustable, and the equipment also has functions such as automatic fault detection alarm and automatic shutdown. This product has multiple uses such as reflow, repair, and drying. Suitable for small-scale SMT electronic product production, trial production, electronic product development departments, school training classes, and other units.

The operating software is the latest upgraded versionChinese English bilingual dual display optional operating systemThe circuit structure adopts an efficient and convenient integrated switch power supply, and uses aluminum silicate high-temperature resistant and environmentally friendly insulation cotton. It has been improved and upgraded in terms of performance structure and operation.

IISmall desktop lead-free reflow soldering/SMT reflow soldering QS-5100Main features

1. Fully enclosed design, built-in high-efficiency insulation material and high-efficiency sealing strip, good insulation effect, heat and corrosion resistance, easy to clean, effectively reducing power consumption and saving electricity.
2. Adopting a drawer style PCB board placement rack, with smooth sliding and large storage space, suitable for placing PCB boards of different sizes and shapes.
3Can complete PCB board soldering for all packaging forms such as CHIP, SOP, QFP, BGA, etc
4. It can complete various tasks such as adhesive curing and PCB board aging.
5. Small in size and light in weight, can be used on office countertops, easy to operate and learn.
6. Single phase 220V lighting power supply, easy to use.
7. The machine adopts a humanized design for its appearance,LCD display screenPlacing the machine in front is more suitable for observation and operation from a seat.
8. This product has more advantages and is more suitable for lead-free soldering of BGA

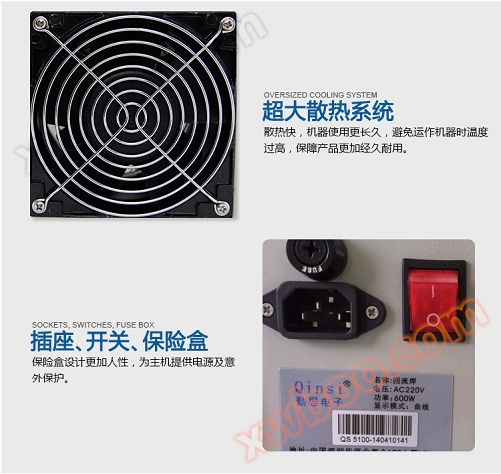

IIISmall desktop lead-free reflow soldering/SMT reflow soldering QS-5100Main technical parameters

1. Input power supply: AC220V/(AC110V order)
2. Working frequency: 50-60Hz
3. Maximum power: 600W
4. Heating method: infrared radiation and hot air mixed heating method
5. Operating System: QS-5100 Bilingual Operating System in Chinese and English
6. Display mode: graphic mode/text mode optional display mode
7. Working mode: automatic reflow mode, adjustable constant temperature maintenance mode
8. Temperature curve segment:Preheating section, heating section, welding section, insulation section, and cooling sectionFive paragraphs in total
9. Preheating section temperature setting range and time: 70-150 ℃, time: 0-5 minutes
10. Heating section temperature setting range and time: preheating section temperature~220 ℃, time: 0-5 minutes
11. Welding section temperature setting range and time: Heating section temperature~300 ℃, time: 0-30s
12. Temperature setting range and time for insulation section: Welding section temperature - (0-50 ℃)
13. Drawer working area:230×180mm
14. Dimensions: 300 × 250 × 160mm
