Special for desktop X-ray coating thickness gauge for Au/ni/cu/ag/pd/zn/pb coating standard film

NegotiableUpdate on 04/02

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Au/ni/cu/ag/pd/zn/pb coating standard sheet (for desktop X-ray coating thickness gauge) Au/ni/cu/ag/pd/zn/pb coating standard sheet StandardCoil thickness gauge standard sheet

Product Details

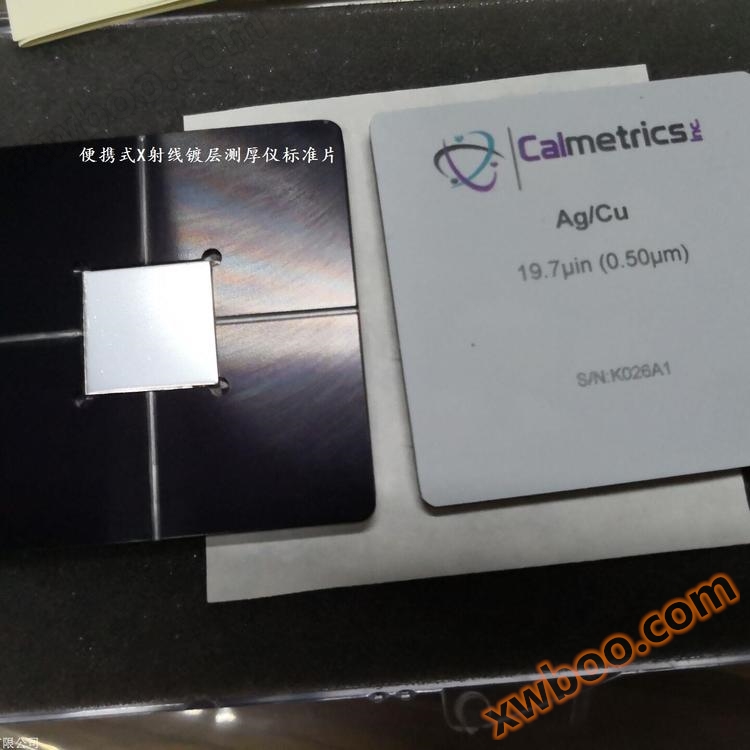

Au/ni/cu/ag/pd/zn/pb coating standard sheet (for desktop X-ray coating thickness gauge)

Au/ni/cu/ag/pd/zn/pb coating standard sheet

Standard foil thickness gauge, also known as standard foil or film thickness gauge, is used for all X-ray coating thickness gauges (imported brands Fischer, Oxford (CMI), Thermo, Veeco, Micro Pioneer XRF-2000, Seiko SII, domestic brands Tianrui, Nayou, etc.)

1. Thin film sheet, single-layer measurement variety: nickel (Ni); Chromium (Cr); Copper (Cu); Zinc (Zn); Cd（4）； Tin (Sn); Silver (Ag); Gold (Au); Palladium (Pd) and other coatings can be customized

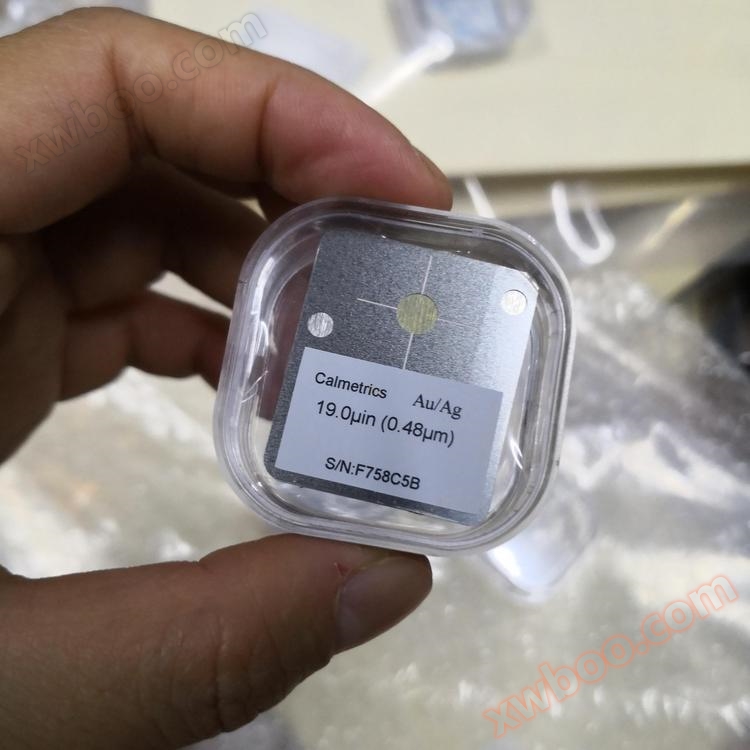

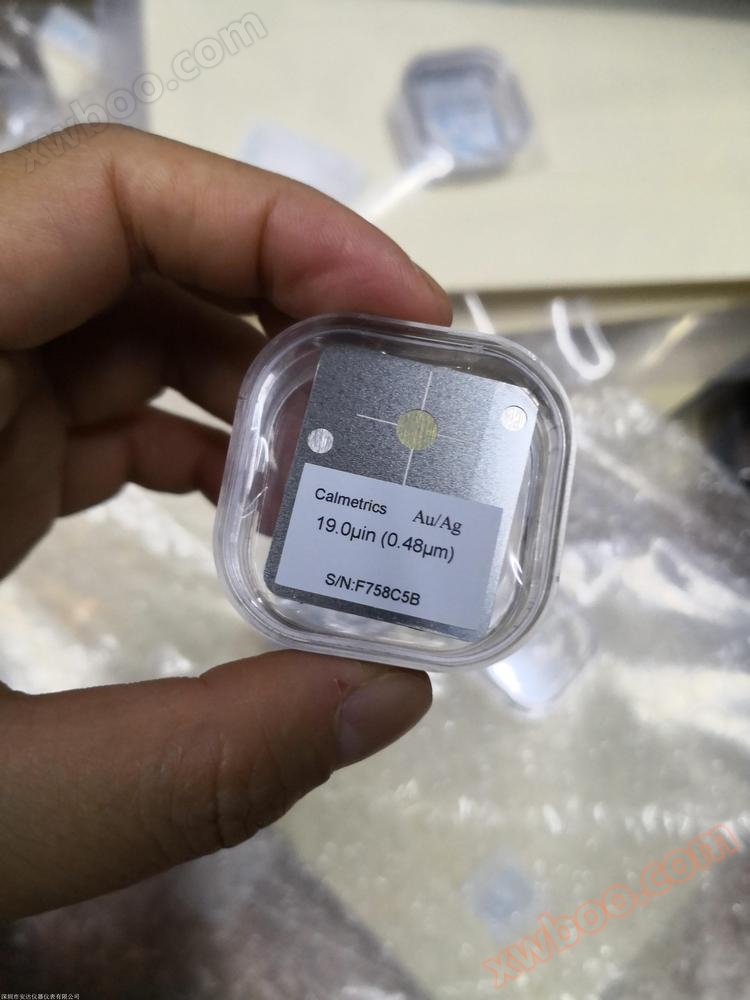

2. Coating standard sheet: Double coating: Au/Ni/xx, Triple coating: Au/Pd/Ni/xx, etc

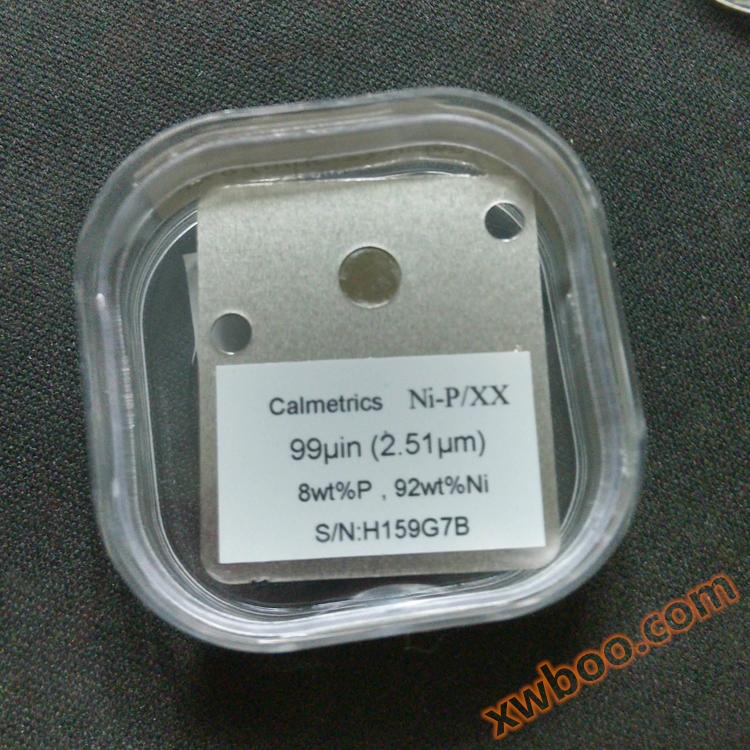

3. Alloy standard plate: Measurement of alloy coating: Sn Pb, Cu Zn, Zn Ni, Ni-P, etc

4. Thickness measurement range: 0.01-300 μ m. (Special thicknesses can be customized)

5. We also have ROHS standard plates and standard objects

6. Coating thickness gauge, plastic standard sheet, etc

7. Electrolytic thickness gauge standard piece/Coulomb thickness gauge standard piece

When the customer contacts me, please understand the elements and thickness they need to use, so that we can communicate and cooperate better. Thank you!

GOLD Au金标准片0.03um/0.05um/0.10um/0.25um/0.50um/1.0um/2um/3um/5um

NICKEL NICKEL 标准片0.10um/0.25um/0.5um/1.0um/2.0um/2.5um/3.0um/5.0um/8.0um/10.0um/20.0um/27.5um

COPPER Cu copper standard sheet 0.10um/0.25um/0.5um/1.0um/2.0um/5.0um/10.0um/20.0um/35um

TIN Sn 锡标准片0.10 um/0.25um/0.5um/1.0um/2.0um/5.0um/10.0um/20.0um/40um/60.0um

Zinc Zinc standard sheet 2.5um/5.0um/10.0um/20.0um

CHROMIUM Crchromium standard sheet 0.05um/0.10um/0.25um/0.5um/1.0um/2.0um/5.0um/10.0um

SILVER Ag银标准片0.10um/0.25um/1.0um/2.0um/5.0um/10.0um/20.0um/30.0um

PALLADIUM Pd Palladium Standard Sheet 0.10um/0.25um/0.5um/1.0um/2.0um/3.0um/5.0um,

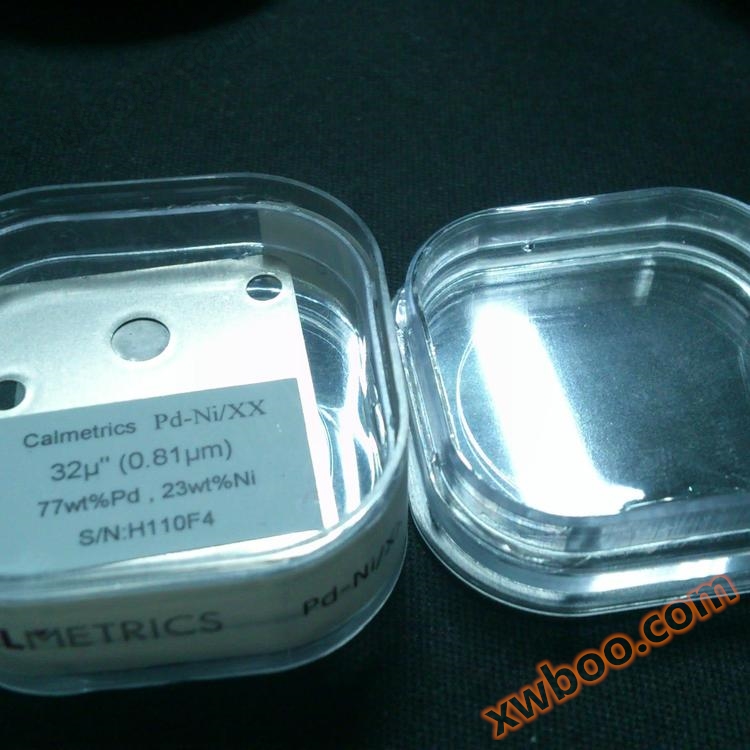

Pd-Ni-nickel alloy standard sheet 0.6um/0.75um/1.0um/2.0um/3.0um/4.0um,(Pd 80%,Ni 20%)

Sn Pb tin lead alloy standard sheet 6.0um/10.0um/15.0um/20.0um/30.0um, Sn Pb/Cu (60% Sn)
