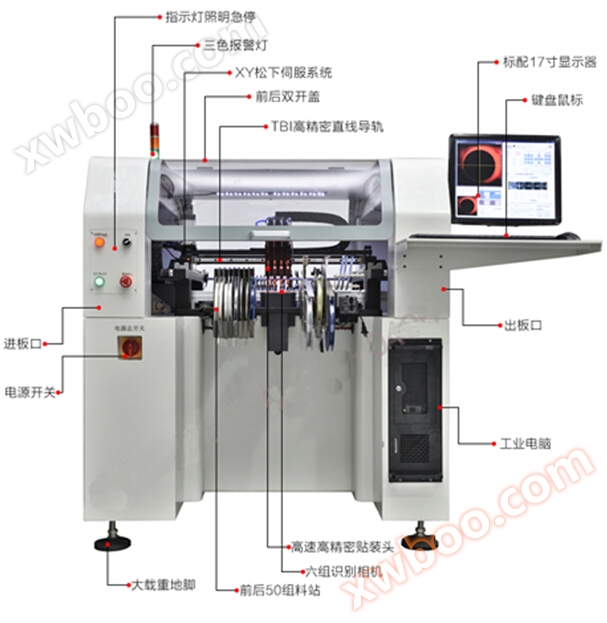

T1604 Four Head Visual Vertical SMT Machine

NegotiableUpdate on 02/25

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Detailed information Number of feeders: 50, number of mounting heads: four, number of trays: 6, average power: 500W, positioning accuracy: 0

Product Details

detailed information

Number of feeders: 50

Number of mounting heads: Four heads

Number of trays: 6

Average power: 500W

Positioning accuracy: 0.01mm

Suction nozzle buffer range: 4.5mm

Power supply: 220V, 50Hz

Compressed air: 0.5-0.6Mpa

Drive motor: Panasonic servo motor/Leisai stepper motor from Japan

Recognition method: Four head synchronous recognition

Suction nozzle vacuum source: high-speed on-off vacuum generator with vacuum breaking

Maximum circuit board area: 505 × 430mm

XY maximum movement range: 509 × 619mm

Maximum Z-axis movement range: 20mm

Belt feeder: 8, 12, 16, 24mm and vibrating Feida (can be attached with tube and chip)

Maximum SMT speed: 10000 Pcs/hour

Actual average mounting speed for resistive capacitance is 8000Pcs/hour

XYZ drive guide rail: TBI high-precision heavy-duty linear guide rail.

Motion Drive System: Panasonic High Speed DSP Drive

Operating System: Based on the Windows operating system, independently developed by Huawei Guochuang CompanyThe fully automatic SMT machine operating system supports Windows XP and Win7 operating systems

Component angle: 0-360 °, any angle, synchronous rotation during motion

X/Y operating mode: intelligent curve acceleration/deceleration linear linkage

MARK point positioning: fully automatic (MARK point can be set arbitrarily)

Intelligent alarm: automatic correction, automatic replacement, shortage alarm

Board entry method: Single segment automatic connection from left to right, automatic PCB transfer positioning. /Top pin positioning and manual board placement.

Visual display: 17 inch industrial control display with a 4:3 ratio and a resolution of 1280x1024

Programming methods: point-to-point teaching programming, visual programming, PCB file coordinate import, etc

Number of recognition cameras: one Mark recognition camera, four high-speed recognition cameras, and one precision recognition camera

Applicable mounting range: Suitable for 0402, 0603, 0805, 1206, diodes, transistors, etc SOT、 QFP, BGA, etc. with a pin spacing of ≥ 0.3mm (pin center distance of 0.5mm) within a range of 40 * 40mm.

Product weight: 500KG

Size: 1350 * 1250 * 1350mm
