Product Details
Product details
The TCU temperature control system, TCU temperature control unit, and TCU temperature control equipment are independently developed, designed, and produced by Great Wall Technology Industry and Trade. They are upgraded and iterated products. The refrigeration and heating cycle device, also known as the high and low temperature integrated machine or refrigeration and heating integrated machine, provides high and low temperature circulating liquid for cooling or heating equipment such as reaction vessels and rotary evaporators. Through external circulation, it provides heat or cold sources for reaction vessels to achieve the required reaction conditions and has high temperature control accuracy. Widely used in various scientific research and university laboratories such as organic synthesis, biology, pharmaceuticals, and food. There are explosion-proof types available for selection, which have the characteristics of safety, efficiency, environmental protection, and convenience.


| name | TCU temperature control unit | |
| model | ZT-5-200-30H | |
| Temperature stability inside the reaction vessel(℃ ) | ±0.5 | |
| Temperature range for use(℃) | -30~ 200 | |
| ambient temperature(℃) | 5~ 35 | |
| ambient humidity | ≤70% | |
| power supply | 220V-240~, 50HZ | |
| safety protection | Delay, overcurrent, overheating, over temperature | |
| Total machine power(kW) | 3 | |

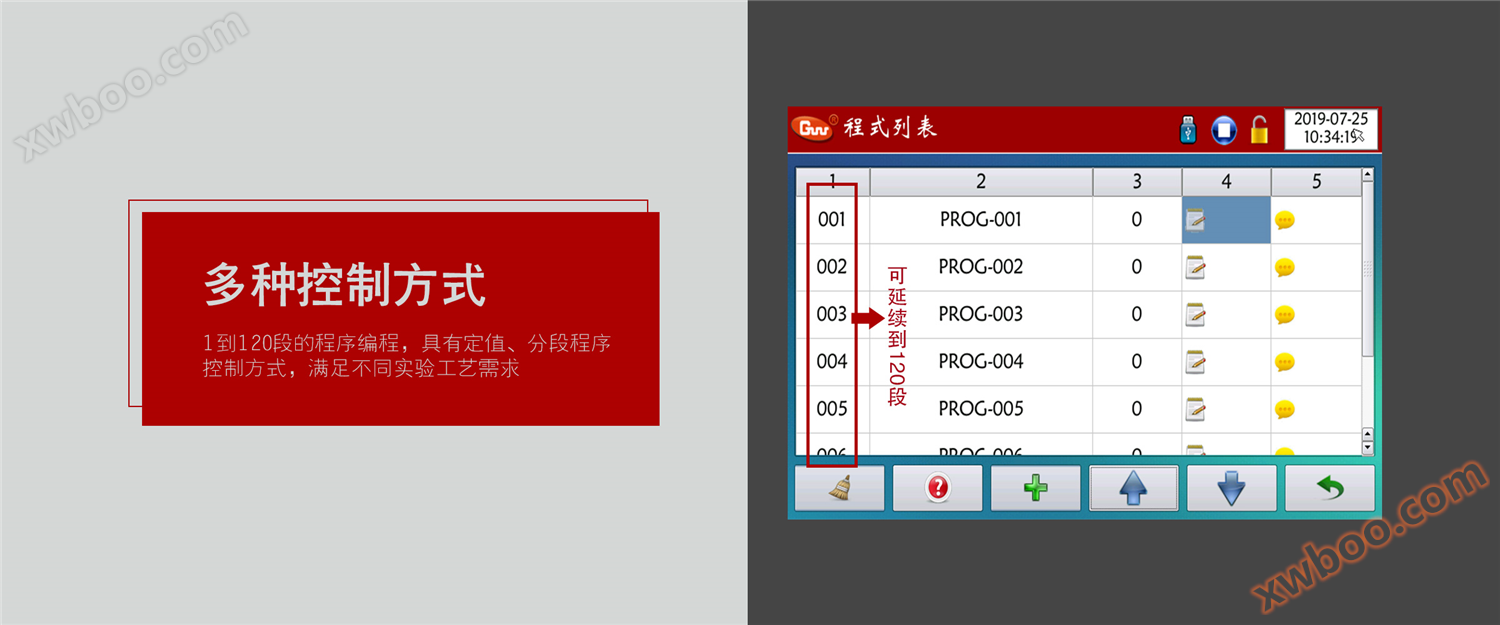

| display screen | LCD screen display, touch operation | |
| Heating wire power(kW) | 2 | |
| refrigerant | R404A | |
| refrigeration capacity(kW) | 200℃ | 0.6 |
| 20℃ | 0.6 | |
| 0℃ | 0.5 | |
| -10℃ | 0.4 | |
| -20℃ | 0.3 | |
| -30℃ | 0.2 | |
| circulation pump | power(W) | 180 |
| traffic(L/min) | 25 | |
| pressure(bar) | 1.5 | |
| External loop interface size | 1/2″ | |
| Expansion tank material | SUS304 | |
| Material of conveying pipelines and valves | SUS304 | |
| The refrigeration host occupies space(mm) | 420W×650D×860H | |
| Weight(kg ) | 106 | |
