Product Introduction: The electronic cigarette resistance test is mainly used to measure the resistance performance of electronic cigarettes, and is suitable for electronic cigarette production quality control and electronic cigarette inspection

Product Details

Product Introduction:

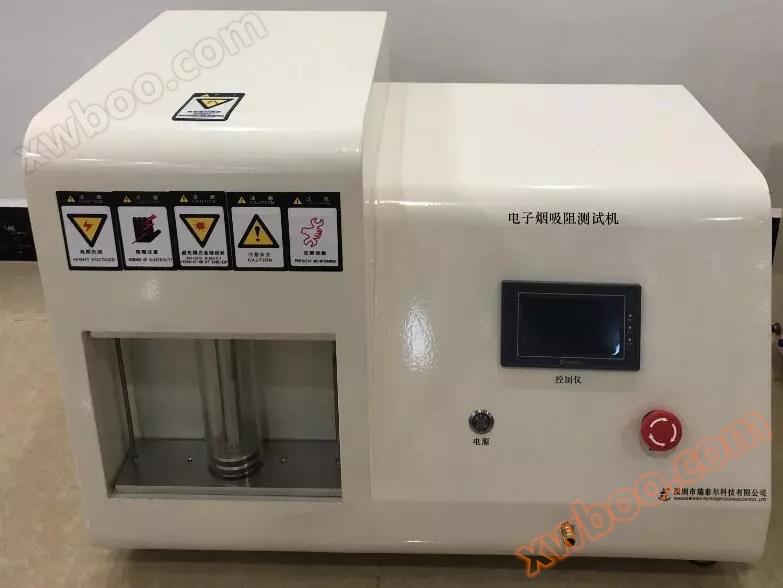

The electronic cigarette resistance test is mainly used to measure the resistance performance of electronic cigarettes, and is suitable for electronic cigarette production quality control and electronic cigarette inspection. When simulating the smoking action of a person on an electronic cigarette and inhaling a fixed flow rate of 17.5ml/s of air, a certain vacuum pressure will be generated at the suction end of the electronic cigarette. This pressure is the suction resistance, abbreviated as suction resistance. By measuring this pressure, the suction resistance can be measured.

Technical parameters:

Sensor capacity	2K, 4K, 6K, 10Kpa (optional or specified)
unit	Pa、 (Pa), mmwg (millimeter water column)
gas flow	5~33ml/S can be set (standard requirement is 17.5ml/s)
Resolution	0.1
error	＜1%
Test time	Average 5 seconds
Testeable sample straight through	7.7mm (testing fixtures for other calibers can be customized)
Insertion depth	9mm
Protector	Leakage, short circuit, overload, pressure overload, airflow overload, etc
Other functions	There are upper and lower limits that can be set to automatically determine whether the sample is qualified
volume	580 x 380 x420 mm(W x D x H)
weight	28 kg
power supply	AC220V,50/60Hz.1.5A
