W5 type full spectrum direct reading spectrometer

The W5 full spectrum direct reading spectrometer has 16 patented technologies, which can quickly determine the elements of metal material samples. The optical system adopts a CMOS detector with a spectral range covering all typical materials. It can accurately and reliably analyze both low and high content elements. The company has accumulated years of production experience in the field of spectroscopy, and has designed this new and more cost-effective full spectrum direct reading spectrometer for different materials and requirements. It can meet the applications of quality monitoring, material grade identification, material research and development in the metal manufacturing, processing and metal smelting industries.

Technical advantages

Black Technology 1: Superior Performance Optical System


Paschen Runge structure concave grating, full spectrum coverage, meets customers' needs for full element detection.
Direct optical technologyreachUsing MgF materialThe optical components produced ensure optimal performance in the ultraviolet region.
High resolution multi CMOS readout systemLower dark current, better detection limit, higher stability, stronger sensitivity, meeting the analysis requirements of N.

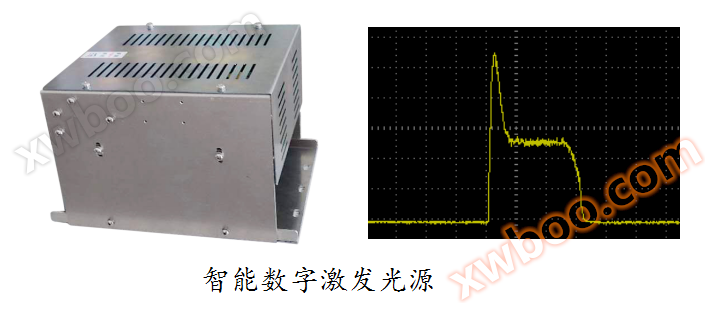

Black Technology 2: Intelligent Digital Excitation Light Source




The fully digital intelligent composite light source DDD technology brings superior analytical performance.
The compact design and semiconductor control technology enable the light source to have better stability and stronger reliability.
High energy pre combustion technology (HEPS), with excitation parameter adjustment, fully meets the excitation requirements of different matrices, samples, and analytical elements.


Black Technology III: Design of Intelligent Sample Excitation Platform


The excitation table directly guides the excitation light into the optical system
Open sample stage, meeting the requirements of large sample testing.
Changing electrodes can provide better performance for analyzing small and complex geometric samples
Video recognition technology ensures the safety of sample stage excitation and can monitor the panoramic view of the sample stage.


Black Technology 4: Intelligent Integrated Gas Circuit Module


Intelligent argon gas flow design and dust collection and cleaning device
The unique argon injection technology effectively eliminates plasma drift during the excitation process, ensuring that the CCD detector can observe light signals in high-temperature areas, improving accuracy and stability.
After excitation, pulsed argon gas is blown to improve dust removal efficiency and enhance the short-term and long-term stability of the instrument.


Black Technology V: Intelligent Vacuum Measurement and Control


The vacuum system is fully programmable, reducing the operating time of the vacuum pump while ensuring the vacuum degree,
Dual level setting, enabling standby vacuum operation when the instrument is not running.
Multi level vacuum isolation measures and the addition of oil filtration devices ensure that optical components work in a reliable environment.


Black Technology 6: Lens Cleaning Device


Stainless steel vacuum ball valve has good isolation effect when cleaning lenses.

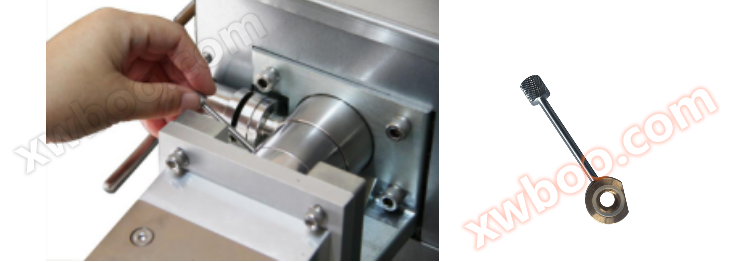

Single panel lens design, easy to disassemble and assemble.
The cross mechanical device effectively protects the optical system without lifting the isolation.


Black Technology 7: Computers and Readout Systems


Computers and mobile phones (or PADs) can display synchronously for convenient panel operation.
High resolution multi CMOS readout system and FPGA, DSP, and ARM technologies for data acquisition.
Ethernet and TCP/IP protocols enable high-speed and reliable data transmission.
Data can be transmitted remotely and fully networked. Real time convenient monitoring and control of instrument operation status.
The data can be cloud printed.


Black Technology 8: Specialized Spectral Analysis Software


The specialized spectrometer software for international spectrometer production standards has a user-friendly interface and standardized functions.
The instrument is equipped with multiple factory calibration curves, more material analysis methods, and advanced solutions in the software.
The measurement upper and lower limits of the standard curve can be extended on site according to the user's material requirements.


Other black technologies:
Automatic optical path calibration
Low consumption of argon gas
Universal adjustable sample adapter
Matrix extension function
Standardized parameter modification
Sample control correction function
Safer and more open convenient design
Real time display of results, customizable printing report function for users
Software rapid diagnosis
Easy interface operation
Reliable factory calibration function
