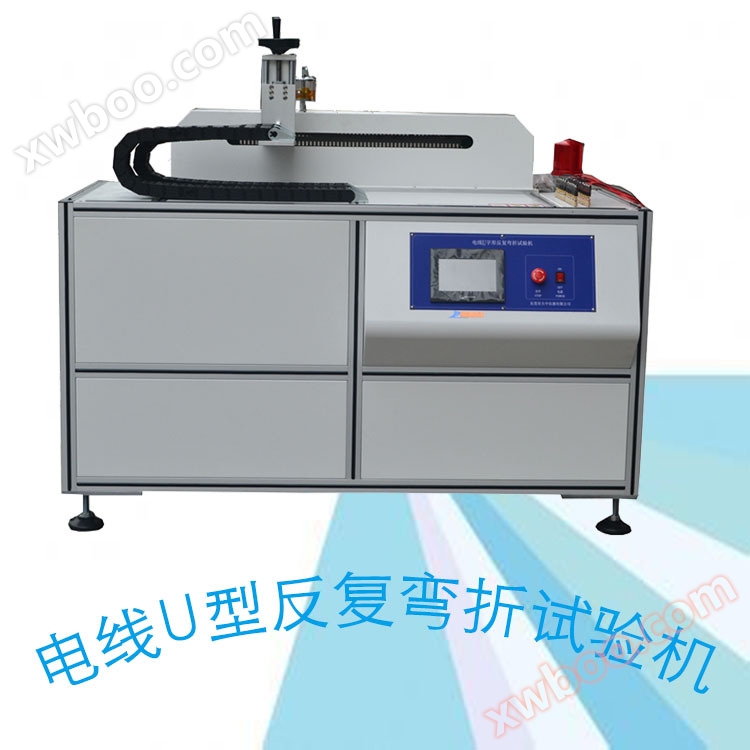

Wire and cable U-shaped repeated bending drag chain bending testing machine

Compliant with standards:

Enterprise Standard 1: Mobile Cable, Article 2.3: U-shaped Folding Test Standard Requirements;

Scope of application:

Suitable for assessing the mechanical life test of mobile wires and cables;

Basic Introduction:

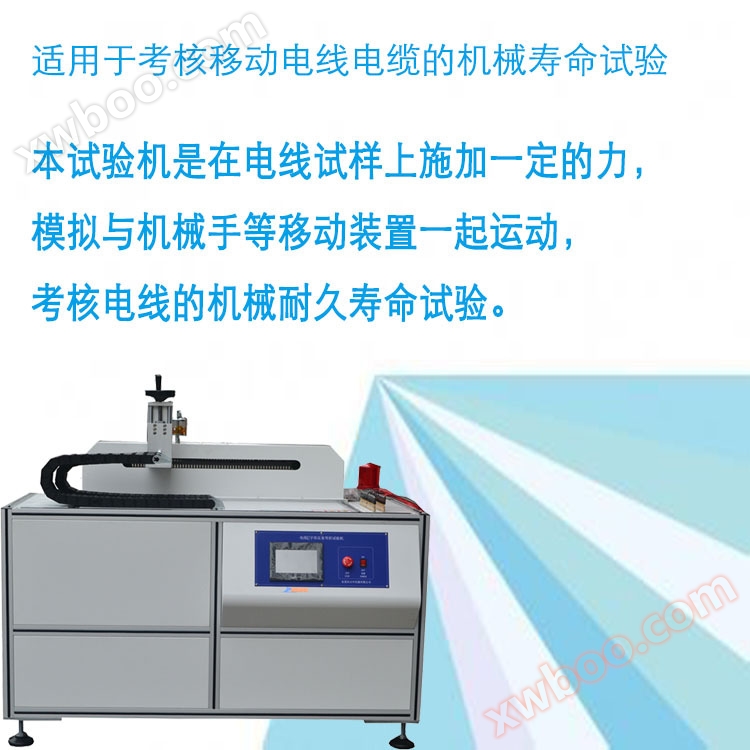

This testing machine applies a certain force on the wire sample, simulates movement together with moving devices such as mechanical arms, and evaluates the mechanical durability life test of the wire. This test machine is equipped with a glass observation window and a cover plate for moving parts with a safety protection switch, which can effectively prevent safety accidents from occurring. In addition, there is an emergency stop button that can stop the operation of the machine in emergency situations. This machine has a high degree of automation and efficiency, with features such as reasonable structure and beautiful appearance, making it an ideal testing equipment for manufacturers and quality inspection agencies producing such wires.

Main parameters:

1. Control system: Taiwan Weilun 7-inch color touch screen, programmable controller

2. Drive mode: Panasonic AC servo motor, original Japanese gearbox toothed belt;

3. Test travel: 0-10 meters, which means the measuring piece moves 0-5 meters, and the maximum movement distance of the slide table is 5 meters;

4. Cable clamp bending radius: Cable drag chain bending radius: 25mm, 50mm, 75mm, 100mm can be adjusted freely; (Different specifications of drag chains need to be selected for use)

5. Test speed: 0-8m/S (fastest speed) times 0-100 times/minute (the fastest speed can reach 100 times/minute on small trips)

6. Test acceleration: 0-40m/S ²

7. Test stations: 2 stations, with each station placed within a range of W250mm (the length of each station, i.e. the width of the drag chain clamp multiplied by the number of stations, is less than 250mm), and with a total mass of ≤ 10kg;

8. Total counter: 1~999999999 can be set arbitrarily, and it can automatically stop when the count reaches the set value;

9. Counter: Each workstation independently counts continuously from 1 to 999999999;

10. Alarm detection: wire core breakage detection, with sound and light alarm prompt sound;

11. Internal resistance detection: Equipped with non-stop switchable internal resistance detection function (equipped with 10 testing interfaces, optional internal resistance tester)

12. Working power supply; Three phase AC380V ± 10%, 50HZ, 15A;

13. External dimensions; Approximately W2000mm × D750mm × H1500mm
