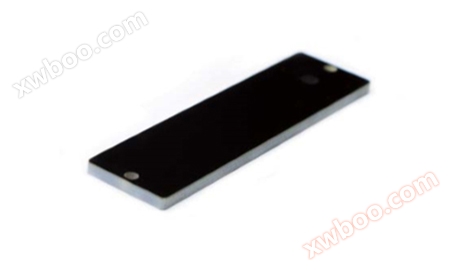

Anti metal electronic tag RT-9525
PC-B-high-frequency metal tag, RFID electronic tag
0 Comments
RT-9525 is a passive ultra-high frequency anti metal tag. The product has a long recognition distance and high cost-effectiveness. It is installed on the surface of metal objects and has good read-write performance; The product has stable performance and is currently one of the widely used passive electronic tags. Suitable for applications such as intelligent warehouse management, automotive parts, pallet management, asset management, etc.
| Functional parameters: |
| RFID protocol | EPC Class1 Gen2, ISO18000-6C |
| frequency | 902-928MHz (American standard) |
| chip | Alien Higgs-3, Impinj Monza 4QT |
| storage | EPC 96 bits (expandable to bits), user area 512 bits, TID 64 bits |
| Write frequency | 100000 times |
| function | Reading and writing |
| Data storage | 50 years |
| Application surface | Metal surface |
| Reading distance: (4-watt fixed machine) |
Up to 9 meters, 902-928MHz (American standard), metal surface |
| Reading distance: (2-watt handheld device) |
Up to 5.8 meters, 902-928MHz (American standard), metal surface |
| Warranty period | a year |
| Physical parameters: |
| size | 95x25mm, (Aperture: 3.5mm * 2) |
| thickness | 3.5mm |
| material | PCB (FR4) |
| colour | Black (optional red, blue, green, white) |
| Installation method | Adhesive backing or screws |
| weight | 18.0 grams |
| Environmental specifications: |
| Protection grade | IP68 |
| storage temperature | -40 ° C to+150 ° C |
| operation temperature | -40 ° C to+100 ° C |
| authentication | Reach certification, RoHS certification, CE certification |
