Long read distance ultra-high frequency anti metal electronic tag RT-9020
PC-B-high-frequency metal tag, RFID electronic tag
0 Comments
| Functional parameters: |
| RFID protocol | EPC Class1 Gen2, ISO18000-6C |
| frequency | 902-928MHz (American standard), 865-868MHz (European standard) |
| chip | Alien Higgs-3 |
| storage | EPC 96bits (expandable to 480bits), user area 512bits, TID 64bits |
| Write frequency | 100000 times |
| function | Reading and writing |
| Data storage | 50 years |
| Application surface | Metal surface |
| Reading distance: (4-watt fixed machine) |
10.8 meters - (American standard) 902-928MHz, metal surface 10.5 meters - (European standard) 865-868MHz, metal surface |
| Reading distance: (2-watt handheld device) |
6.5 meters - (American standard) 902-928MHz, metal surface 6.3 meters - (European standard) 865-868MHz, metal surface |
| Warranty period | a year |
| Physical parameters: |

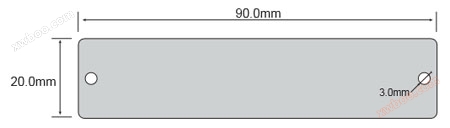

| size | 90x20mm, (Hole: diameter 3mm) |
| thickness | 3.0mm |
| material | FR4 (PCB) |
| colour | Black (optional red, blue, green, white) |
| Installation method | Adhesive backing or screws |
| weight | 12.0 grams |
| Environmental specifications: |
| Protection grade | IP68 |
| storage temperature | -40 ° C to+150 ° C |
| operation temperature | -40 ° C to+100 ° C |
| authentication | Reach certification, RoHS certification, CE certification |
