Automatic flat grinder testing purpose

Automatic flat grinder testing purpose

Automatic flat grinder testing purpose

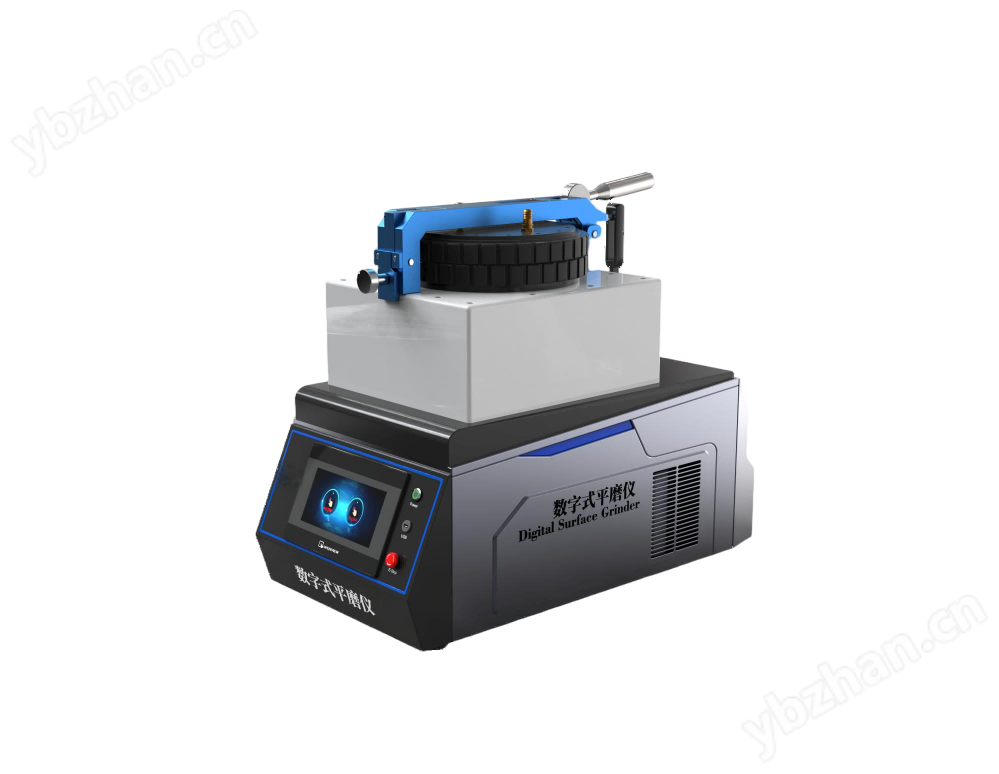

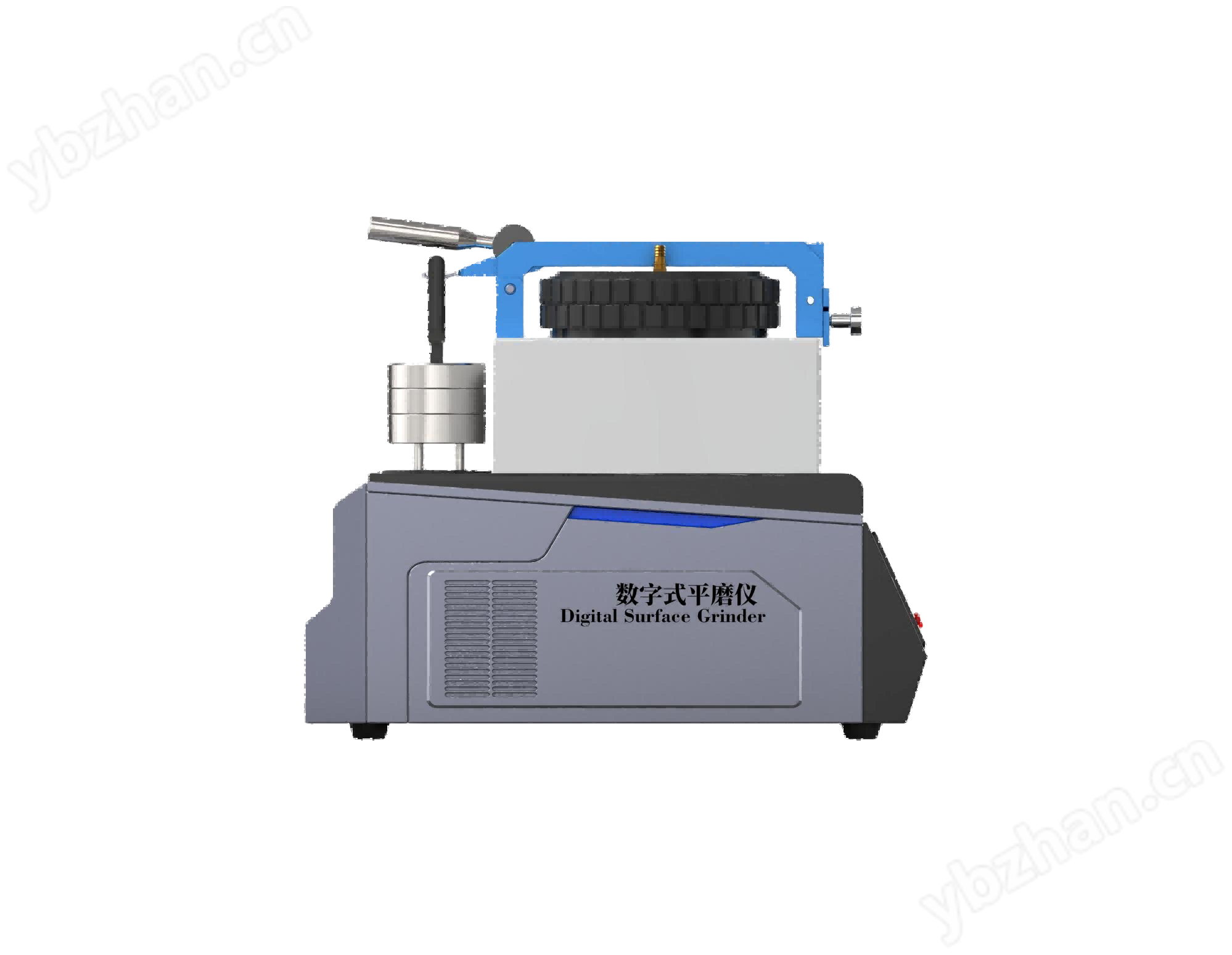

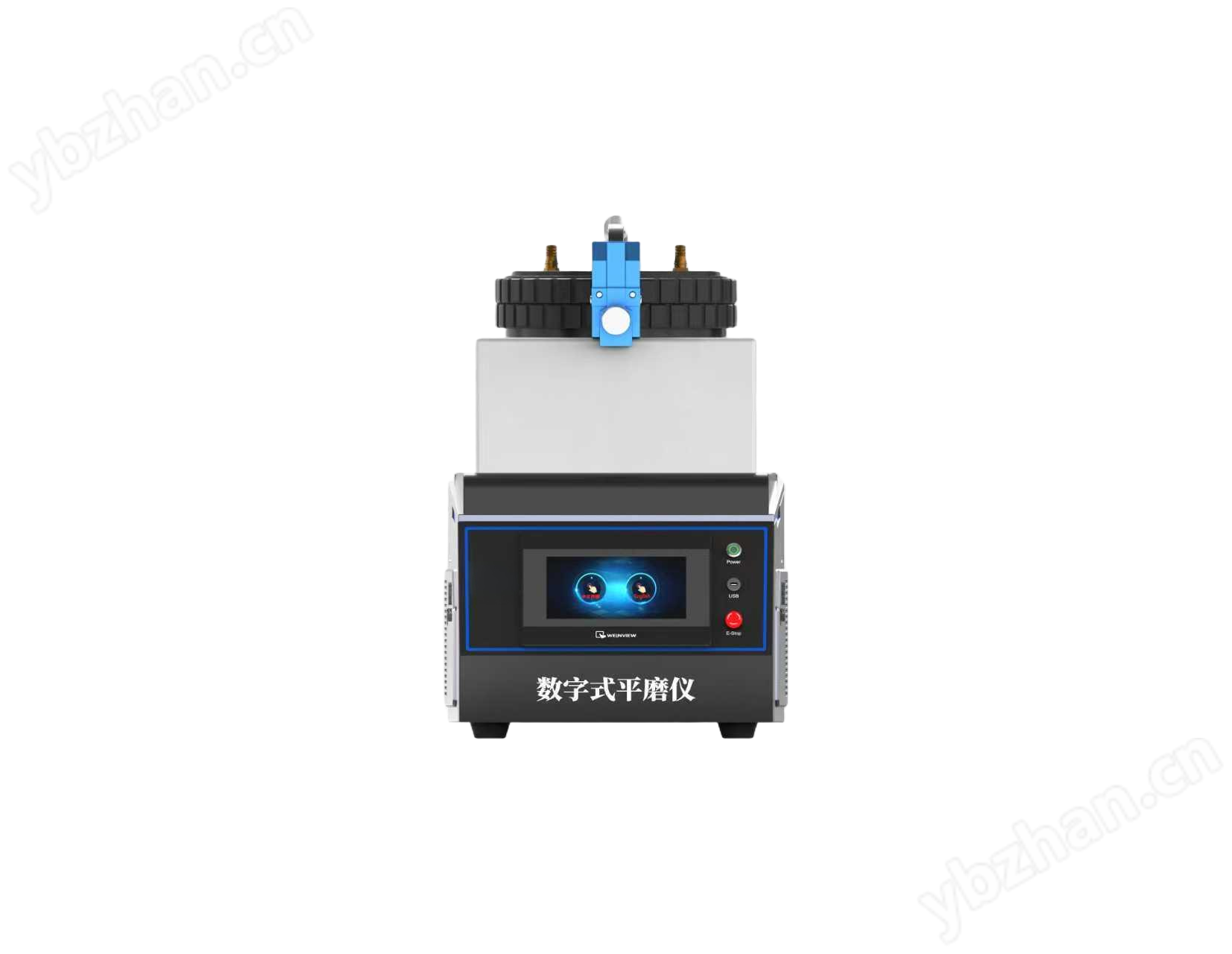

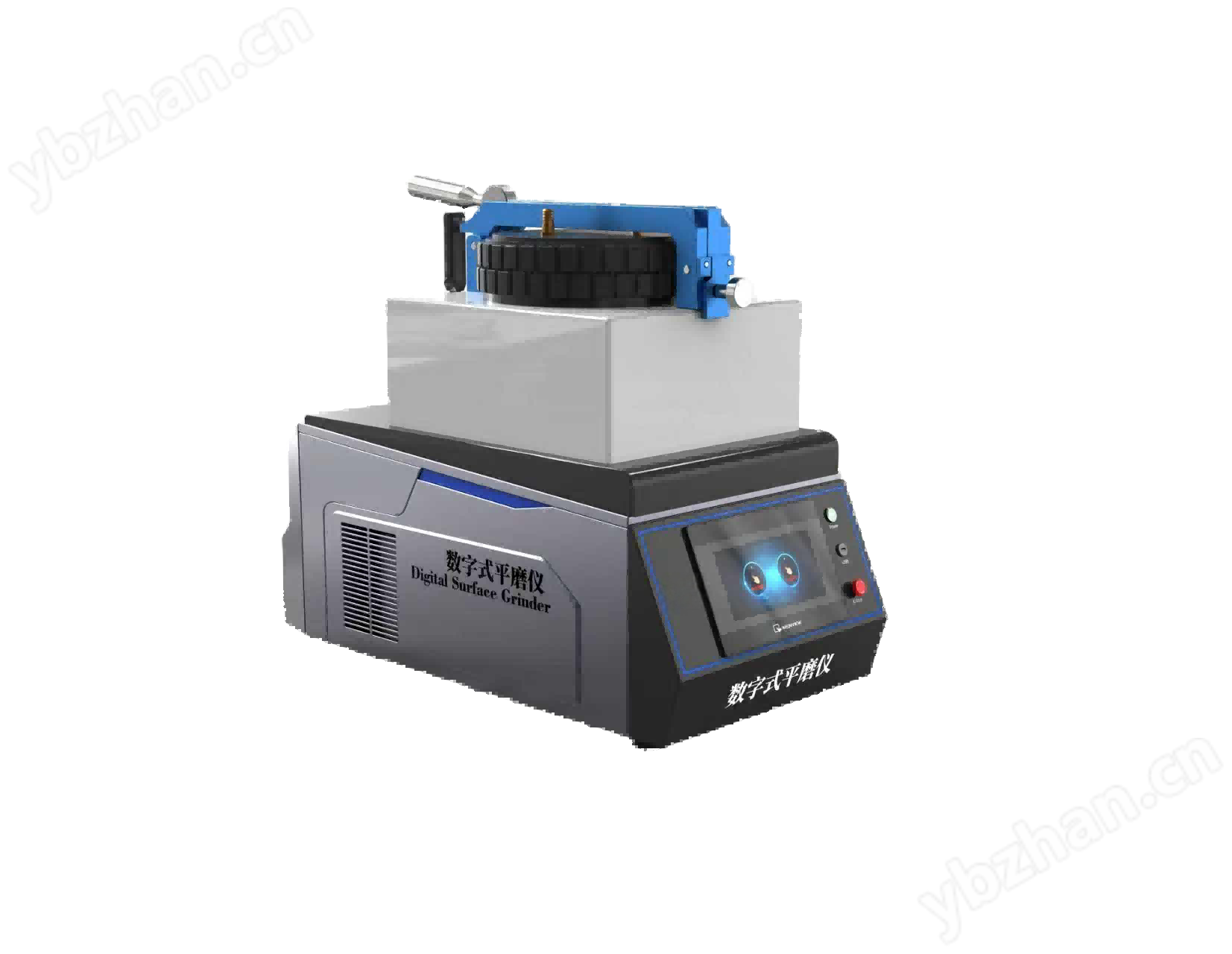

fully automaticflat grindingmachine

This machine can be used as a physical performance testing instrument specifically for the pigment, coating, and ink industries. The whole machine has a compact structure, simple appearance, convenient speed and load changes, and easy installation and removal of glass plates. Adopting microcomputer control, LCD screen display, and convenient parameter setting. When the input parameters are incorrect, the controller will automatically display "input invalid", achieving the goal of reliable control and simple operation. The operation adopts touch screen mode, with simple and clear display and operation.

It is an instrument used to test the physical properties of materials such as pigments, coatings, inks, etc. It mainly grinds and measures samples by rotating the grinding disc

meet the standard

GB/T 5211-16,GB/T5211-19,GB/T21867.1,GB/T 21868.5,IS0 787-16,IS0 78717,IS0 8780-5，IS0 8780-1

Technical Specifications

Control system:PLC;

Operating interface: Color7Inch touch screen, switching between Chinese and English;

Printer: Embedded micro printer;

Glass plate diameter: standard configurationØ180mm, thickness10mm, optional with other specifications;

Grinding disc speed:75±5rpmOther speeds can be set;

Knife adjustment: made of plastic materials;‌‌

power supply380V 50Hz(Customizable)220V） ‌‌

Overall dimensions:570×350×500mm‌‌

‌‌
