The surface cleanliness tester is stable and reliable
NegotiableUpdate on 01/09
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
The surface cleanliness tester is a stable and reliable device that uses a contact type to measure the number of particles on the surface of an object. Semiconductor, panel manufacturers, equipment vendors, and all cleaning component manufacturers use inspection standard tools to verify the cleanliness of component surfaces. It is difficult for the human eye to see particles with a diameter of less than 100 microns, which quickly settle and evade conventional air detection, thus accumulating on critical surfaces or products, reducing product yield and stability.
Product Details
The surface cleanliness tester is stable and reliable
The surface cleanliness tester is stable and reliable

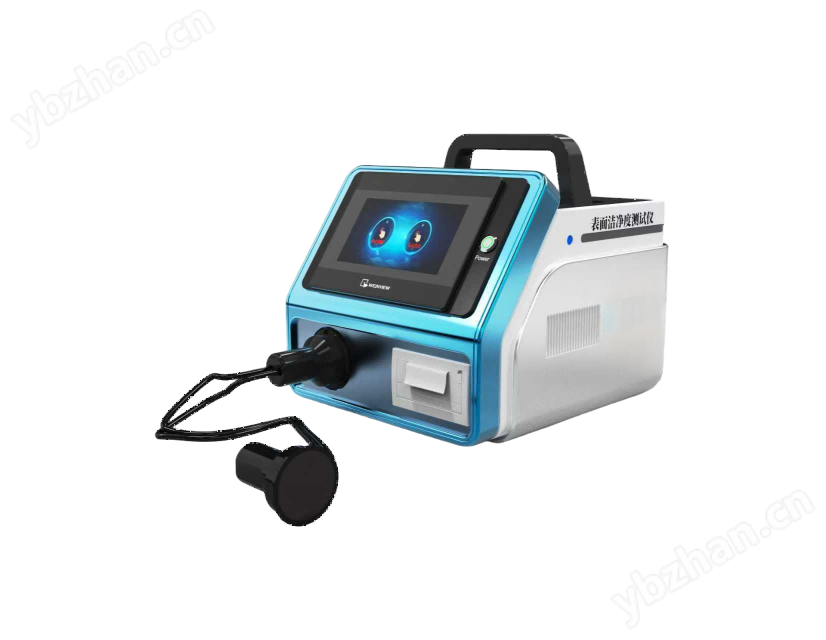

Surface Cleanliness Tester
1Instrument Introduction
summary:
The surface cleanliness tester is a contact type device used to measure the number of particles on the surface of an object.Semiconductor, panel manufacturers, equipment vendors, and all cleaning component manufacturers use inspection standard tools to verify the cleanliness of component surfaces. It is difficult for the human eye to see the diameter clearly100Particles below micrometers will quickly settle, evade conventional air detection, and accumulate on critical surfaces or products, thereby reducing product yield and stability.
Execution standard:
ISO14644-9:2022Cleanrooms and Related Controlled Environments9 part:Evaluation of Particle Concentration and Surface Cleanliness
IIinstrument parameters
Technical Specifications:
Control system:PLC
Operation interface:7Inch touch screen
traffic:28.3L/min+5%Built in flow sensor, automatic closed-loop flow control
light source:Imported laser diode
Test particle size:0.1、0.15、0.2、0.25、0.3、0.5、0.7、1.0、3.0The5.0um(Customizable according to customer needs, up to eight channels)
Maximum saturation concentration:2000000/ft3（5%）
clean-down capability:≤10min
number of measurements:0-99Next cycle:0-99999Second measurement interval:0-9999Second hour time:0-9999second
cleanliness class:1~9level
Sampling head specifications:φ36.5
data unit:m3Theft3
SCPlevel:1level-8level
Surface type:Round, square
Surface probe:φ12.7 mm、φ20 mm、φ30 mm、φ50 mm、φ70 mm
data unit:m2Theft2Thein2Thecm2Themm2
According to the shape of the probe (such as:Circular input diameter, square input length and width dimensions), automatically calculate surface area.
Print function:thermal printer
data storage:Can be stored100000group data
weight:15kg
Overall dimensions:300*400*450mm
power supplyAC220V 50Hz 150W(Optional with lithium battery pack)
Basic Configuration
One host
Instruction manual1copy
Certificate of Conformity1copy
Delivery Receipt1copy
power cord1copy
wrench1set
One warranty card
One nameplate
