The introduction of the epoxy resin gelation time tester shows that a certain shape and buoyancy are suspended in the resin, and the driving mechanism makes it perform simple harmonic motion in the vertical and plane with a fixed amplitude, and the plunger is properly adjusted so that the plunger does rise during the upward operation, while it drops freely at a speed not faster than the simple harmonic motion. The time from when all the curing agent is added to the resin until the resin gel can just support the downward force of the plunger and is automatically detected as the gel time.

Product Details

Introduction to epoxy resin gelation time tester

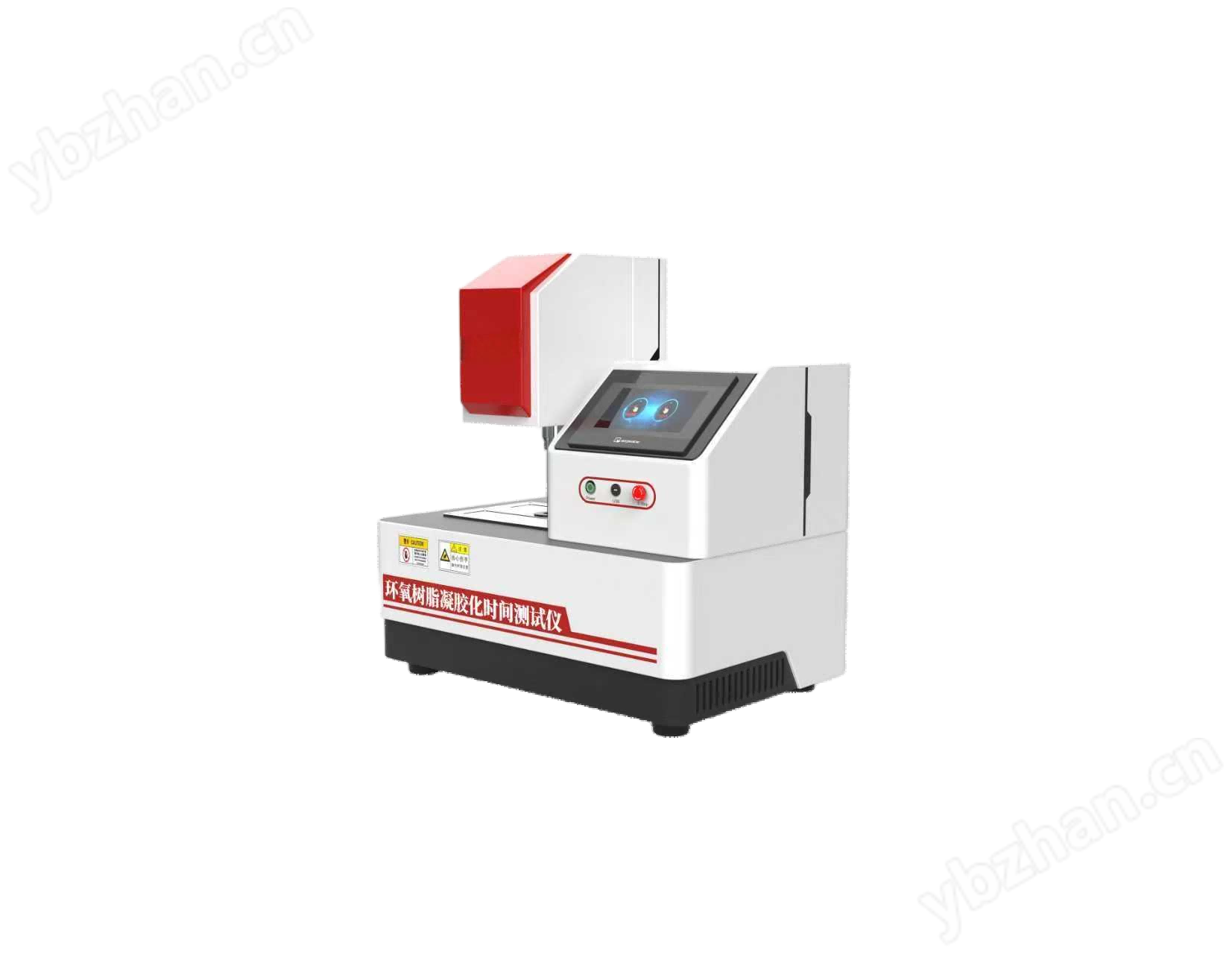

Epoxy resin gelation time tester

summary:

Hang a certain shape and buoyancy in resin with a basic meaning,The driving mechanism causes it to move in a fixed amplitude in a vertical plane in a harmonic motion and is adjusted so that the plunger does indeed rise during upward movement, and freely falls at a speed no faster than harmonic motion during descent. The time from when all the curing agent is added to the resin until the resin gel can just support the downward force of the plunger and is automatically detected as the gel time.

execution standard:

GB 12007.7-89 Determination of gel Time of Epoxy Resin

Main technical parameters

Control system:PLC

Operation interface:7-inch color touch screen

1. plunger：The plunger is made of stainless steel material.

The length of the plunger rod is approximately100mm, with a diameter of approximately3mm

Disk diameter22.1~22.3mmThick about1.5mm.

The total mass of the suspension link between the plunger and the gel tester is16.2±0.02g。

2. Sample cylinder：Cylindrical aluminum cans,

inner diameter45mm，

height≥75mm.

Thickness of aluminum wall:0.5mm,

3. speed：0~30r/min can be set

4. Round trip:12.7mm

5. Constant temperature oil bath:RT~300 ℃ ≥ 2L Temperature control accuracy: ± 1 ℃

6. power supplyAC 220V±10％，50Hz；

7. Specifications:450*400*650mm

Basic configuration:

Test host:1copy

User Manual: How to Translate1copy

certificate:1copy

Delivery Receipt:1copy

power cord:1root

Wrench:1set

Product Introduction Sample Brochure:2this
