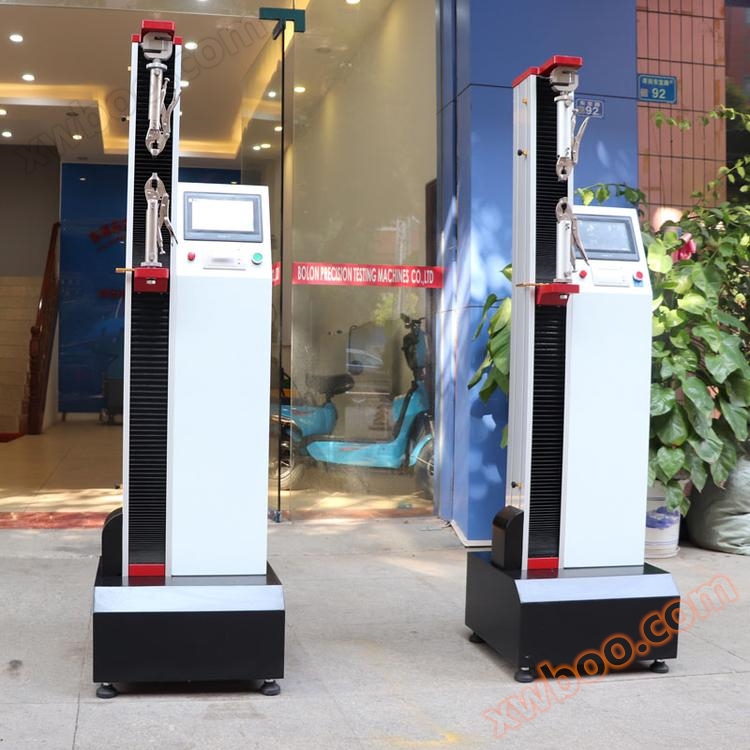

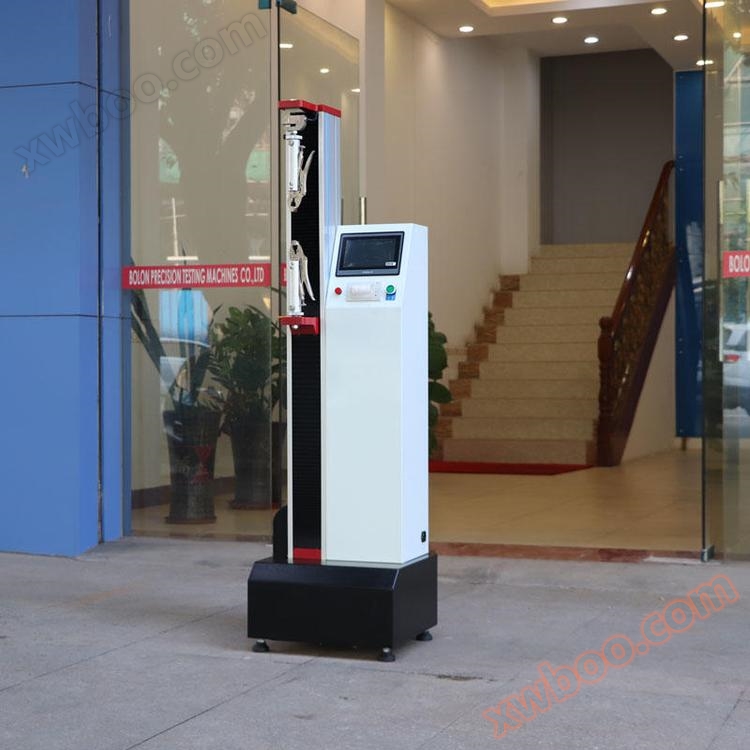

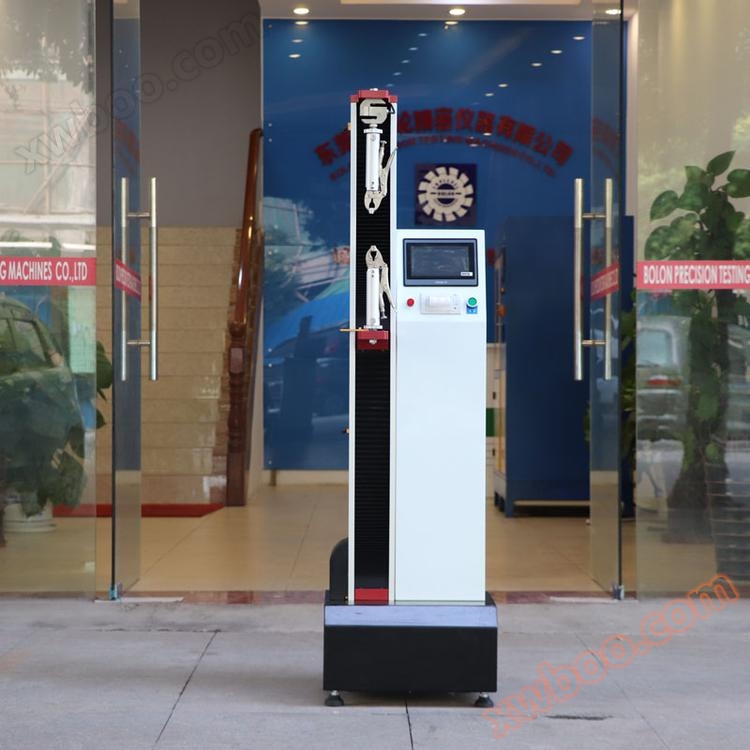

Baolun BL-200-A tensile testing machine single column experimental tensile testing machine manufacturer direct sales

1、 Main purpose and scope of use

This measurement and control system is specially developed for tensile machines, press machines, and electronic material testing machines. Suitable for measuring the mechanical properties and related physical parameters of various materials under tension, compression, bending, shear, tearing, peeling, puncture and other states.

2、 Main functional features

The core components of this measurement and control system adopt imported new high-precision 24 bit AD, with a sampling rate of 400The resolution of the entire process is 300000 divisions per second without any gear divisionAnd adopt 6-point calibration technology to further improve accuracy, making the force collection accuracy reachNational first level standard. Displacement without error positive or negativeCounting. 7-inch TFT color touch screen,Directly enter the experimental parameters, and the Chinese and English operation interface prompts layer by layer, making it easy for users to operate without the need for an operation manual. Additionally, there are alsoCan communicate with PC through RJ45 network interface, equipped with dedicated TM2100Pro professional luxury version measurement and control softwareReal time display of force displacement, force time, displacement time, stress-strain curves, automatic calculation of maximum force, yield force, average force, maximum deformation, yield point, elastic modulus and other parameters, and flexible report editing and printing functions.

The output control methods are flexible and versatile, and can be configured as pulse output to control servo motors or 0~10V voltage output to control variable frequency motors for stepless speed regulation. In addition, there are rising, stopping, and falling relay outputs that can be used to control DC motors or pneumatic, hydraulic, and other power devices.

3、 Normal working conditions

★ Within the range of 0-55 ° C;

Relative humidity not exceeding 80%;

★ Power supply 220 ± 10% VAC, frequency 50Hz;

★Stay away from strong electromagnetic interference.

4、 Main specifications and technical parameters

★ Power resolution: 1/100000, sampling frequency 400 times/second;

★ Force accuracy: ± 0.1% of the displayed value (20-100% FS);

★ Force sensor types: 1mV/V, 2mV/V, 3mV/V, 4mV/V, 8mV/V, 9.6mV/V;

★ Applicable force sensor range: 1-1000000N

★ Extended scoring power: 1/100000, sampling frequency 50 times/second;

★ Precision of extensometer: ± 0.1% of the indicated value (20-100% FS);

★ Displacement resolution: determined by the mechanical system and photoelectric encoder, generally up to 0.001mm;

★ Displacement measurement accuracy: The instrument system has no errors;

★ Test speed: 0.01mm/min to 500mm/min;

★ Speed accuracy: within ± 1% of the displayed value;

★ Four force channels;

★ Two displacement channels;

★ 0~10V voltage output mode output control variable frequency motor stepless speed regulation;

★ Pulse output mode controls the servo motor for stepless speed regulation;

★ Optional micro printer, print test results, and have the function of instant printing when picking up points;

★ Single test, manual 10 point statistics, and automatic calculation of average and fracture values (suitable for peel and tear tests), up to 5 groups can be stored;

★ Compatible with multiple grating encoders, pulse range: 100~65535;

★ Unit switching: Force: kN/N/kgf/gf/t/lbf, displacement: mm/cm/in;

★ Automatic return function;

★ Overload protection function can be set;

Multiple testing methods such as fixed load and positioning displacement.
