Baolun BL-6170 automatic flat vulcanizing machine laboratory flat vulcanizing machine vacuum flat vulcanizing machine manufacturer direct sales

Introduction to vulcanizing machine

be related toparameter

1. Capacity: 50-200 tons

2. Temperature range: Room temperature 300

3. Program controller: LED display, button setting input, digital display output (PLC programmable color touch screen, human-machine interface, all operating parameters can be set and controlled arbitrarily, molding process and vulcanization line can also be dynamically displayed)

4. Temperature accuracy:+-2
5. Heating method: electric heating tube
6. Pressure plate size: 300x300x60mm
7. Pressure plate distance: 80mm
8. Material of pressure plate: SKD chromium molybdenum alloy xx
9. Pressure plate surface: HRC60 mirror chrome plated
10. Working layers: 2 layers, both upper and lower templates have heating and cooling functions
11. Cooling method: tap water cooling
12. Gradient pressurization: Section 03
13. Exhaust frequency: 010 times can be set
14. Exhaust pause: Yes
15. Sensor: Nanli Measurement and Control Pressure Transmitter
16. Special valve plate: using the "Tianfeng" brand
17. Electromagnetic directional valve: Taiwan's "Weisheng"
18. Oil pressure system: Proportional hydraulic flow valve closed-loop control system, with automatic pressure compensation and delayed shutdown function of oil pump
19. Hydraulic medium: 40L Mobil 46 # antifreeze hydraulic oil
20. Cylinder speed: 1150mm/s dual speed function, fast mold closing, slow mold locking: high approach speed is used for low pressure, and low approach speed is used for high pressure
21. Safety protection: self-locking safety visual door cover, open the tempered glass door cover to cut off all running commands or actions of the electronic control system

reminder:

*Customers can choose between instrument type or programmable type, and prices and parameters may vary. Please refer to the business quotation for accuracy.

(Machine color, style, size, etc. can be customized according to customer requirements)

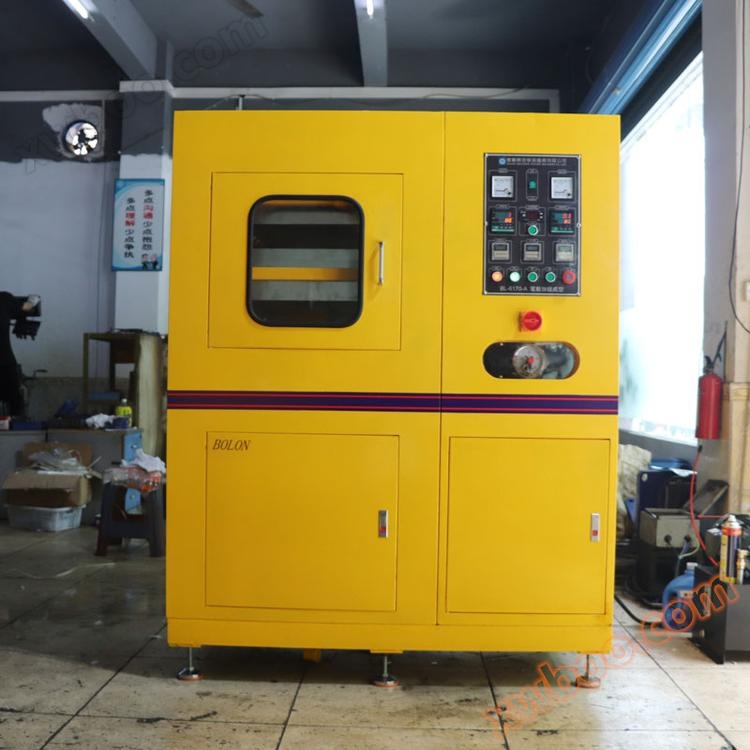

Real photos of vulcanizing machine

Company Profile

Baolun Precision Testing Instrument Co., Ltd. was established in 2000Nian is a professional manufacturer of testing instruments in Dongguan city. Our products are widely used in various industries such as shoemaking, leather, rubber, plastic, chemical, etc., covering all possible quality inspection ranges. An indispensable partner for material development, physical property testing, teaching research, quality assurance control, and incoming inspection.

“Quality is social responsibility”This is the business philosophy of Baolun Precision Instruments. Practical research and development, sincere service, to achieve and meet the needs and development of various industries with high-quality employees, high-performance equipment, and high-quality services.

Baolun Precision Testing Instruments are widely used in the industry for their accuracy, reliability, and excellent cost-effectiveness, and have a broad customer base in the industry.

The products manufactured by Baolun Precision are strictly adoptedISO、ASTM、BS、DIN、EN、GB、JISWaiting for world standards. If you are interested in our products or need more detailed information, please contact our business personnel. Our professionals will be happy to answer your questions.Our website is:http://www.baolun.com
