Carbon paper characteristics vertical and plane direction air permeability tester

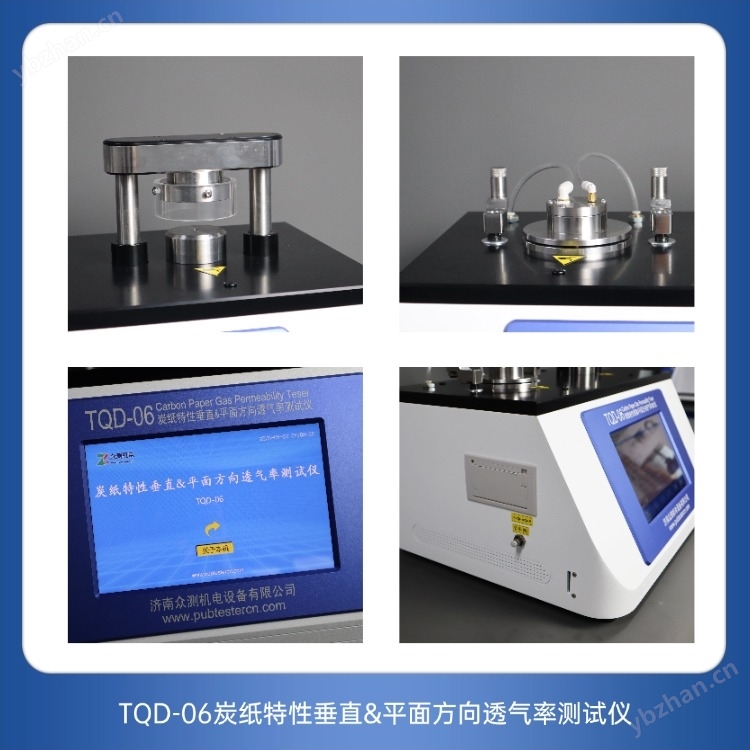

TQD-06Carbon paper characteristics vertical and plane direction air permeability testerApplicable to GB/T 20042.7-2024 "Proton Exchange Membrane Fuel Cells Part 7: Test Methods for Charcoal Paper Characteristics" for vertical and planar permeability testing. By measuring the permeability of the sample, the product can meet the needs of practical applications.

TQD-06Carbon paper characteristics vertical and plane direction air permeability tester

Product Features

·High precision electronic airflow and air pressure sensors ensure the accuracy of test data

·Embedded high-speed microcomputer chip control, simple and efficient human-computer interaction interface, providing users with a comfortable and smooth operating experience

·The design concept of standardization, modularization, and serialization can maximize the satisfaction of users' personalized needs

·Carefully designed UI interface, touch screen operation,

·Built in micro printer with storage function capable of saving over 50000 pieces of data

·10.1-inch high-definition color LCD screen, real-time display of test data

·Imported high-speed and high-precision sampling chips effectively ensure testing accuracy and real-time performance

·Key components are selected from imported branded parts, with stable and reliable performance

·Overvoltage safety protection design

·Energy saving and environmentally friendly design, ultra-low power consumption

Technical Specifications

Test Principle

vertical direction

Install the test cell on the testing device to ensure no leakage, adjust the throttle valve, control a certain pressure difference with pressure difference, and stabilize at room temperature and a certain pressure difference for at least 5 minutes. Calculate the vertical air permeability based on the flow rate and pressure difference using the flowmeter.

Plane direction
Place the sample between the upper and lower fixtures so that the surface of the sample can be covered by the fixture. Apply pressure to the fixture so that the sample can withstand a pressure of 1MPA. Adjust the throttle valve and use a differential pressure gauge to control a certain pressure. Stabilize at room temperature and a certain pressure difference for at least 15 seconds. Calculate the planar air permeability based on the flow rate and pressure difference calculation process and differential pressure.

reference standard

GB/T 20042.7-2024 "Proton Exchange Membrane Fuel Cells Part 7: Test Methods for Charcoal Paper Characteristics"

Test application

Product Configuration

·Standard configuration: Host, LCD touch screen, mini printer, fixture
·Note: The air source interface of this machine is a Φ 6mm polyurethane pipe
