Concrete impermeability tester manufacturer, fully automatic pressurized concrete impermeability tester processing customization, mortar permeability tester price

Concrete is a widely used artificial stone in modern architecture. For certain buildings, such as hydraulic structures, underwater, underground, and other construction projects, concrete buildings are required to have special properties - impermeability. The so-called impermeability refers to the ability of concrete to resist the infiltration of water or other liquid (light oil, heavy oil, etc.) media under pressure.

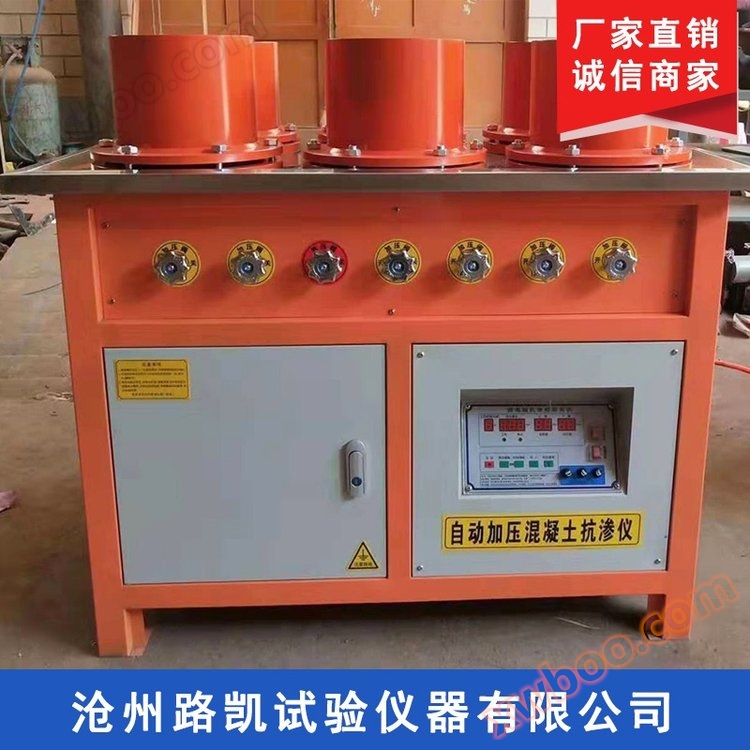

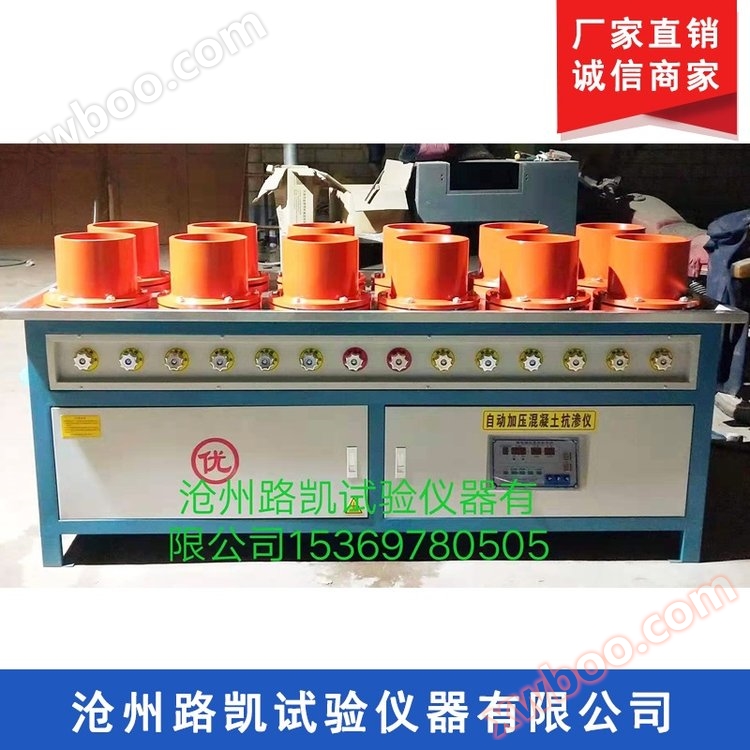

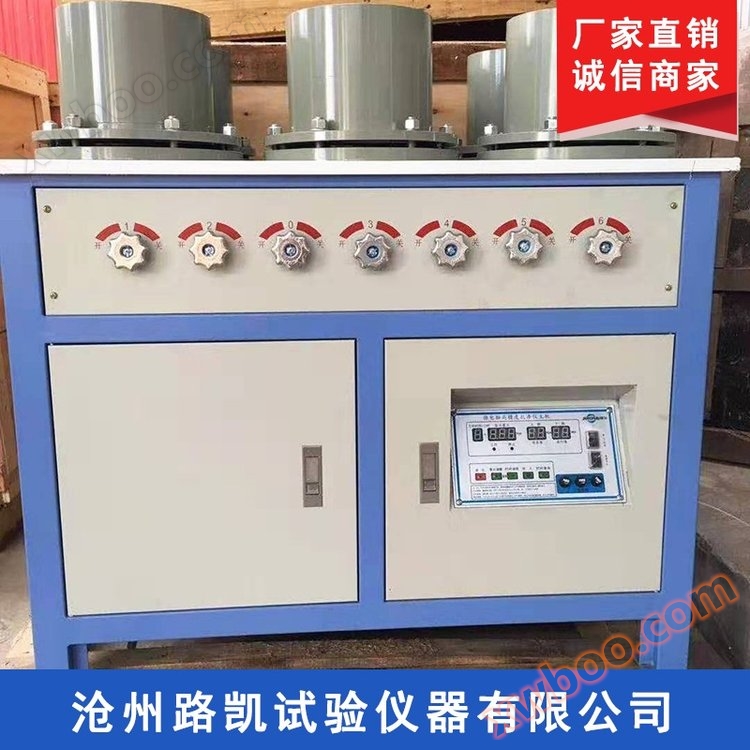

The automatic pressure regulating concrete impermeability meter (concrete impermeability meter) is suitable for measuring and testing the impermeability performance of concrete and mortar, and can also be used for measuring the permeability and quality inspection of building materials.

Technical performance of automatic pressurized concrete permeameter (concrete impermeability tester)

1. Maximum allowable working pressure: 4.0Mpa

2. Working mode: automatic constant pressure

3. Number of test pieces that can be tested at once: 6

4. Upper inner diameter 175mm, lower inner diameter 185mm, height 165mm

5. Parameters of plunger pump:

Piston diameter 10mm, stroke 10mm

Reciprocating frequency 154 times/minute, flow rate 0.11 liters/minute

6. Motor model: JLOF --0.12

Power: 90 watts Speed: 1400 revolutions per minute

7. Dimensions: 960 * 650 * 975 millimeters

8. Total weight: 210 kilograms

Technical specifications of automatic pressurized concrete permeameter (concrete impermeability tester):

1. Delay ± 0.37% FS 2. Accuracy ± 0.3% FS.

3. The pressure difference is 0.5Mpa.

4. Range 0-0.49Mpa.

5 . The sensor has a sensitivity of 2.1538MV/MPa and a full-scale output of 12.9MV.

6. The working voltage is 380V.

7 . Control the output power to 500W.

Cangzhou Lukai Experimental Instrument Co., Ltd. is a high-tech entity that integrates scientific research, development, production, and operation. There are more than 60 scientific and technological personnel, and the company has developed hundreds of products over the years. The main products include concrete cement testing instruments, highway geotechnical testing instruments, asphalt waterproofing testing instruments, chemical analysis instruments, testing machines, scales, various mortars, concrete test molds, screening tools, etc.

We can provide a complete set of laboratory testing instruments and inspection equipment for highways, railways, bridges, mixing plants, municipal engineering, colleges and universities, and engineering quality inspection centers. At the same time, professional technicians provide instrument consultation, technical explanations, installation and debugging, equipment maintenance, etc.

Our company always adheres to the principle of quality assurance and reputation first. With strong technical strength, high starting point technical level, advanced and rigorous process control, rich professional manufacturing experience, and a perfect quality assurance system, let us build a bridge of friendship with you.

Cangzhou Lukai Testing Instrument Co., Ltd

Contact: Manager Li

Telephone:

Email: 254256266@qq.com

Address: Yintun Village, Guozhuang Town, Xian County, Cangzhou City, Hebei Province
