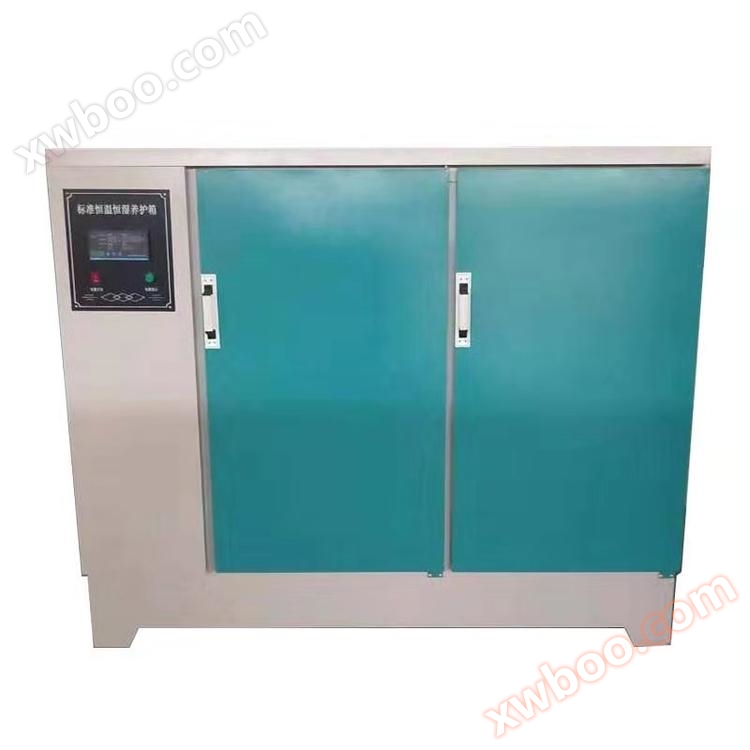

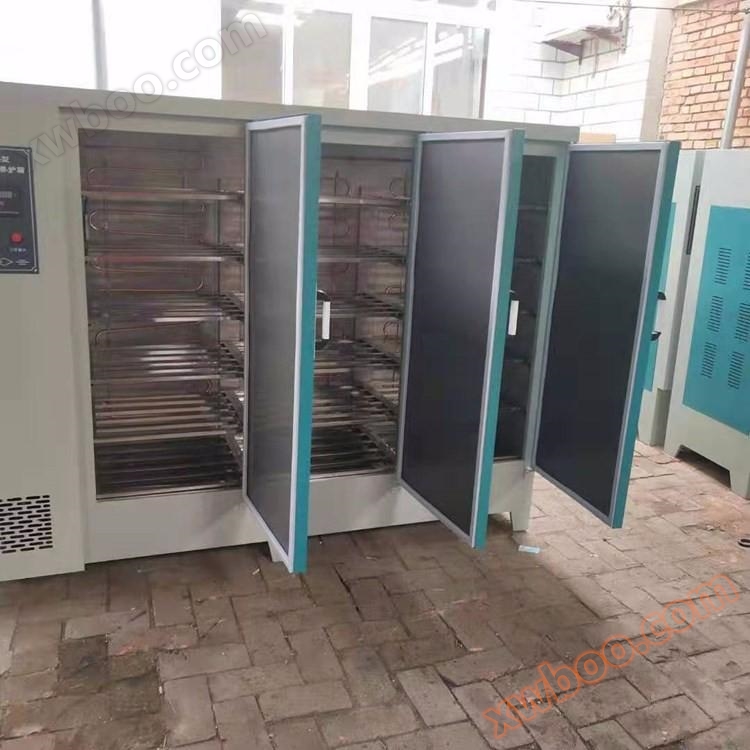

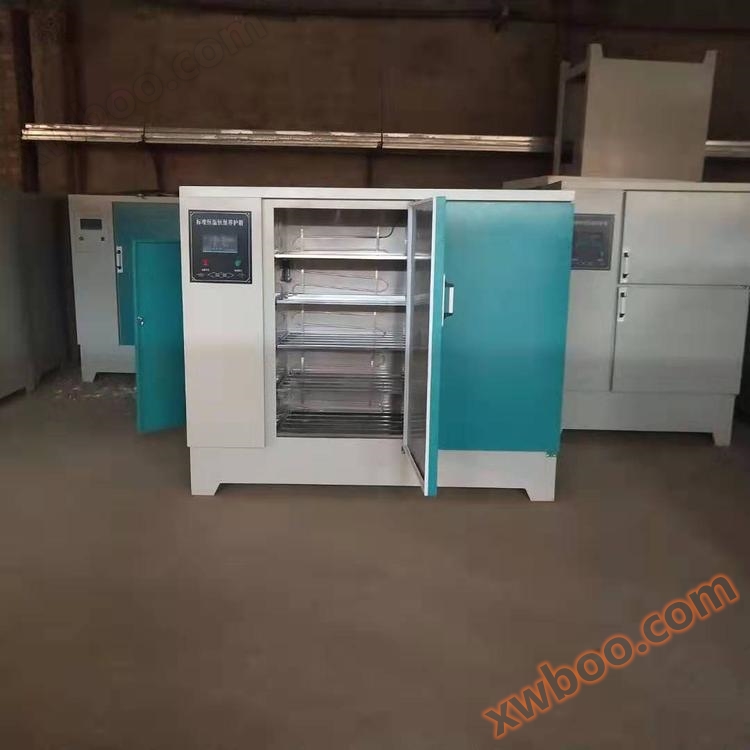

SHBY-90B curing box directly supplied by the manufacturer, standard constant temperature and humidity curing box, concrete curing box

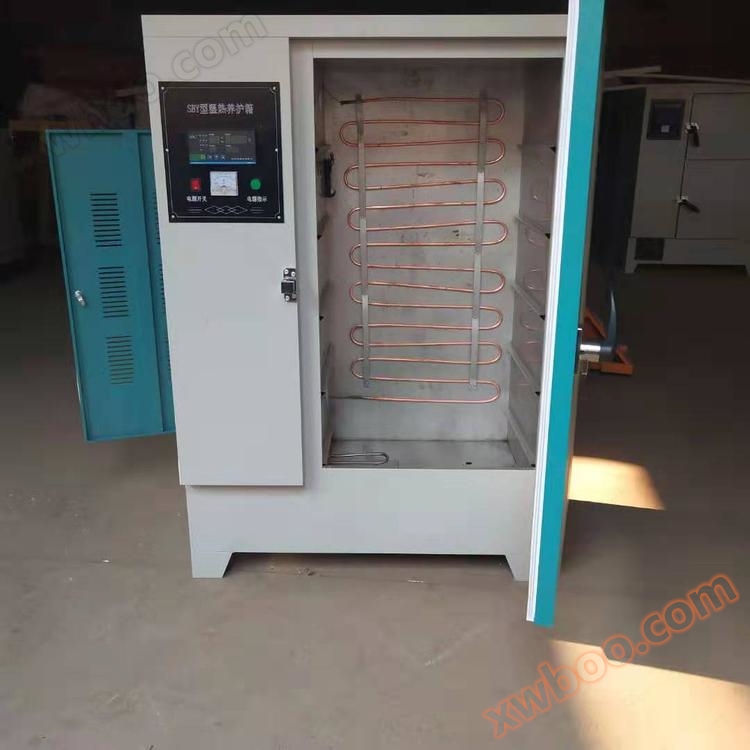

The curing box is used for constant temperature and humidity standard curing of concrete specimens and cement specimens. The inner liner is made of imported stainless steel plate,

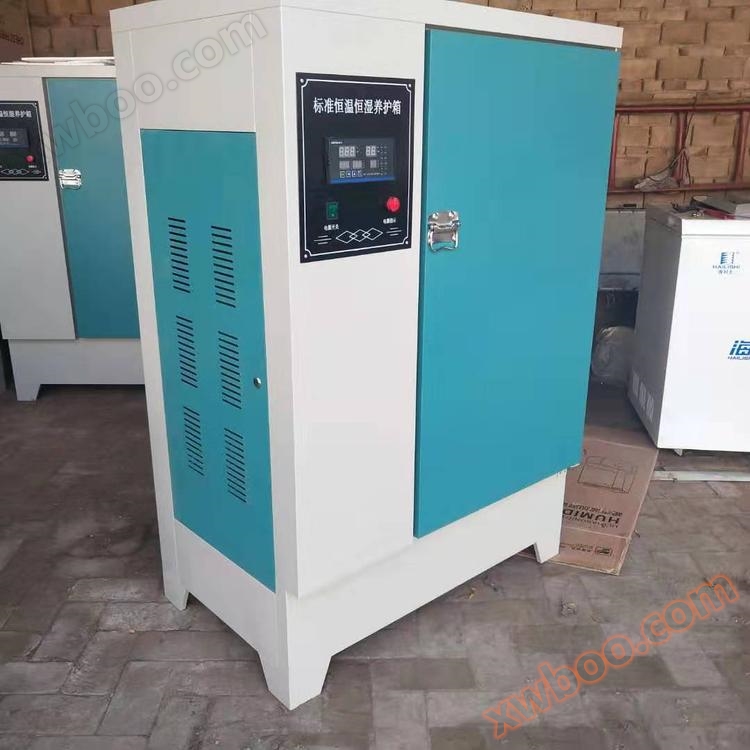

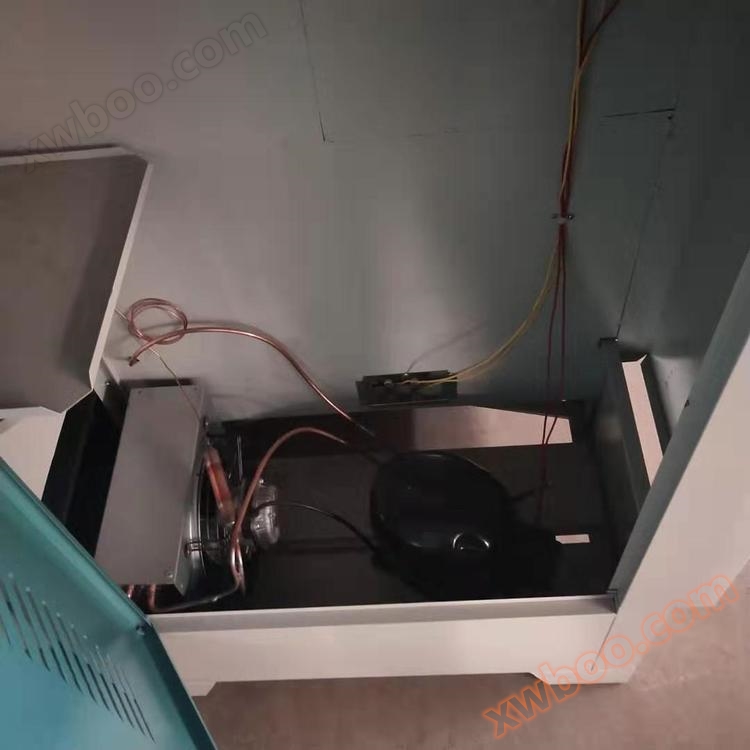

Spray adopts ultrasonic humidification, high-power compressor, double vacuum glass door, temperature and humidity digital display intelligent instrument (as shown in the figure

It can be equipped with a micro printer and is an ideal equipment for curing concrete specimens in laboratories and quality inspection centers.

1) After the box is in place, it must be stationary for 24 hours and turned on (after the compressor is cooled and the oil is separated). Adjust the positive level before starting up,

Add clean tap water to the water tank until the water level exceeds 3 centimeters above the heating tube, and fill the plastic box of the humidity sensor with distilled water

Place one end of the sensor gauze into the small hole to effectively contact the water.

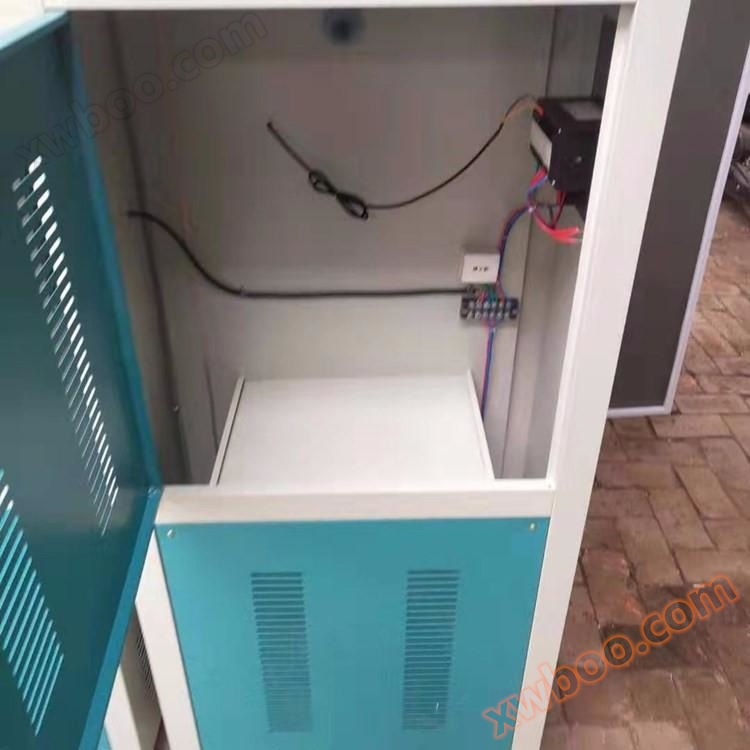

2) Open the side door and take out the transparent plastic water tank of the humidifier. Unscrew the bottom cover of the water tank and fill it with clean tap water. Like tap water

Groundwater is highly alkaline (hard water), so distilled water (soft water) should be used instead. To prevent the formation of scale and damage to the transducer, without

It can increase humidity. After filling the water tank with water, the bottom cover must be tightened, otherwise dripping water will raise the water level and cause wind to blow between the water surface and the bottom of the tank

The road is blocked, fog is generated and cannot be sent into the box, and the humidifier is prone to damage if it cannot work for a long time. After the water tank is in place, soften it

Place the nozzle on the mist spray channel slogan. Turn on the humidifier switch and adjust the fog knob to the maximum position (detailed check)

Refer to the humidification manual.

3) After powering on, check the upper and lower limits of temperature and humidity settings. The factory set temperature limit is 21.0 ℃ and the lower limit is 19.0 ℃,

If the humidity is 90% (89% humidification, 92% constant temperature), adjust it using the "Set", "Set", and "Shift" keys.

4) Turn on the work switch to control the instrument. After the temperature and humidity inside the box reach the control values, repeat the constant temperature cycle before placing the test piece.
