Manufacturer's direct supply of digital shaking standard vibrating screen machine, electric vibrating screen machine, shaking pendulum instrument

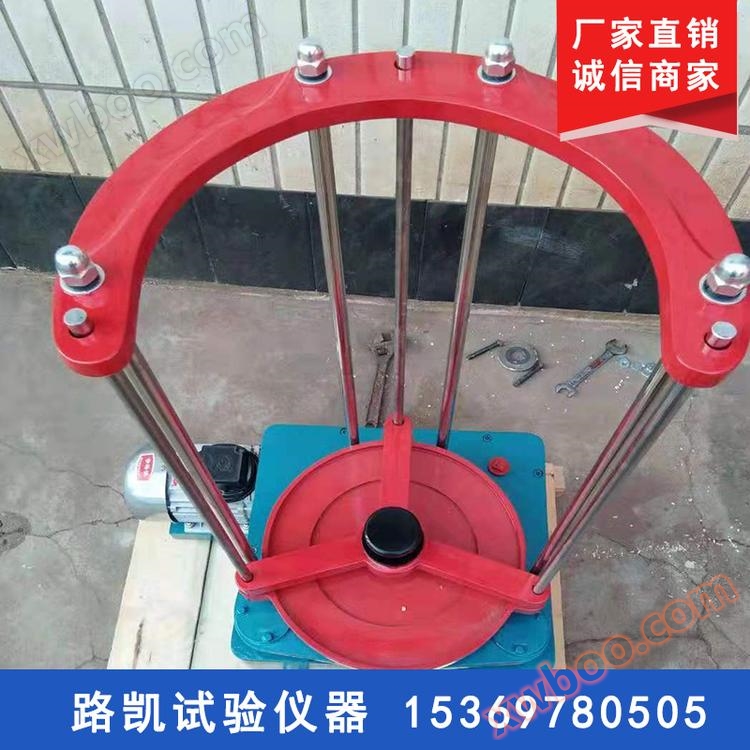

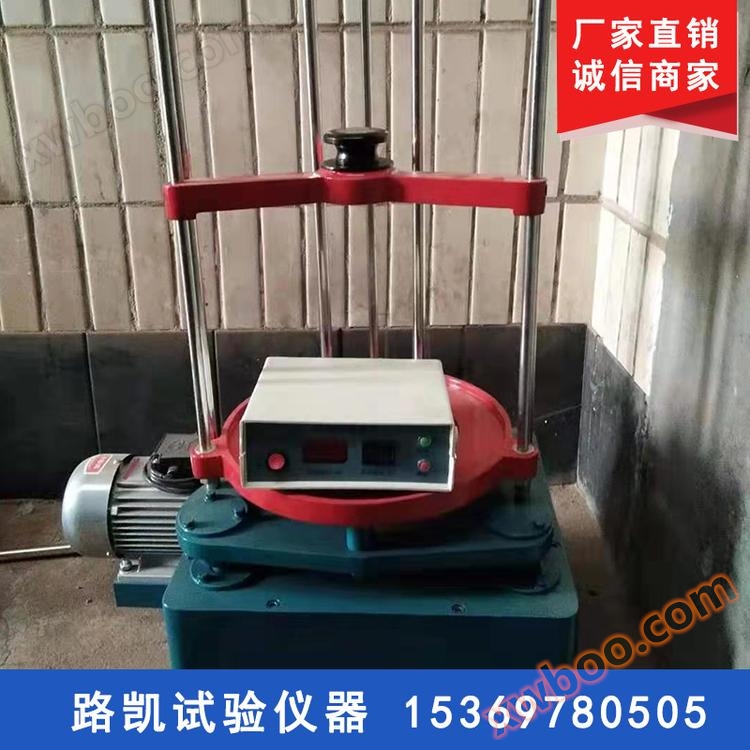

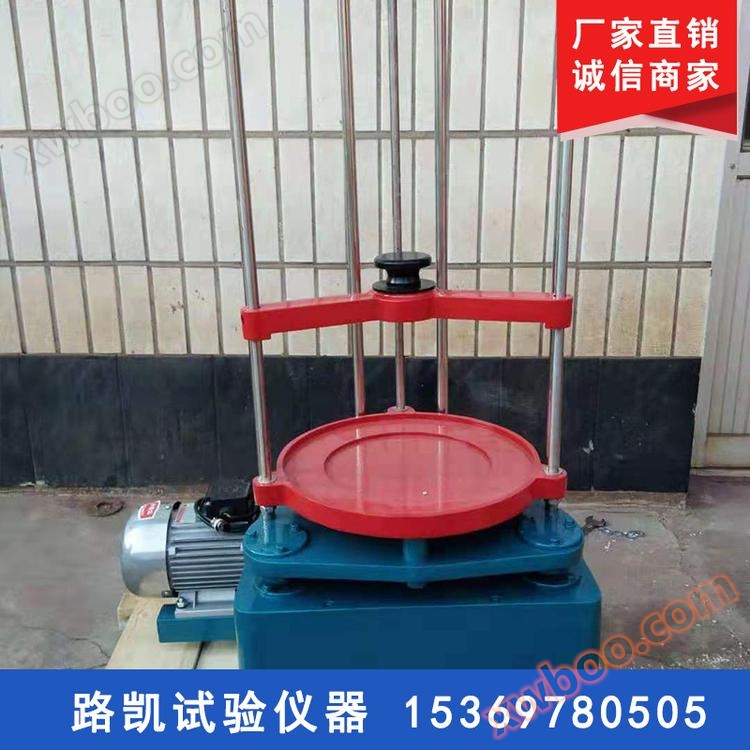

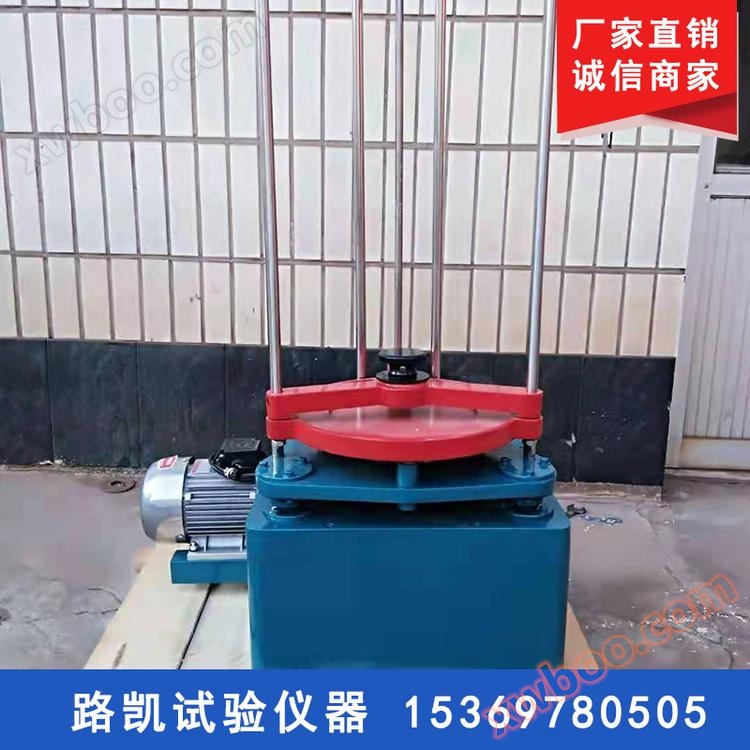

The main structural performance of the shaking type standard pendulum instrument is as follows:

It is mainly composed of swing mechanism, shock mechanism, clamping mechanism and other parts. The electric motor rotates the main eccentric shaft on the worm gear supporting swing frame by rotating the shaft, which in turn drives the other two supporting eccentric shafts to rotate, causing the swing radius of the entire screen group to be equal to the plane circumference swing of the eccentricity. At the same time, another pair of worm gears are driven by the same electric motor through a cam, and the top rod is equipped with a swing frame of a screen group, which periodically lifts and falls onto the anvil of the machine base by its own weight, causing the swing frame to oscillate in a flat circular motion while undergoing vibration.

The main features of the shaking type standard pendulum instrument are:

It has the advantages of small size, light weight, beautiful appearance, automatic stop device, advanced structure, good performance, large rotation range, strong vibrating force, good screening effect, low energy consumption, efficient operation, high wear resistance, convenient and flexible use of jacketed screen, etc.

Cangzhou Lukai Experimental Instrument Co., Ltd. is a high-tech entity that integrates scientific research, development, production, and operation. There are more than 60 scientific and technological personnel, and the company has developed hundreds of products over the years. The main products include concrete cement testing instruments, highway geotechnical testing instruments, asphalt waterproofing testing instruments, chemical analysis instruments, testing machines, scales, various mortars, concrete test molds, screening tools, etc.

We can provide a complete set of laboratory testing instruments and inspection equipment for highways, railways, bridges, mixing plants, municipal engineering, colleges and universities, and engineering quality inspection centers. At the same time, professional technicians provide instrument consultation, technical explanations, installation and debugging, equipment maintenance, etc.

Our company always adheres to the principle of quality assurance and reputation first. With strong technical strength, high starting point technical level, advanced and rigorous process control, rich professional manufacturing experience, and a perfect quality assurance system, let us build a bridge of friendship with you.

Cangzhou Lukai Testing Instrument Co., Ltd

Contact: Manager Li

Telephone:

Email: 254256266@qq.com

Address: Yintun Village, Guozhuang Town, Xian County, Cangzhou City, Hebei Province
