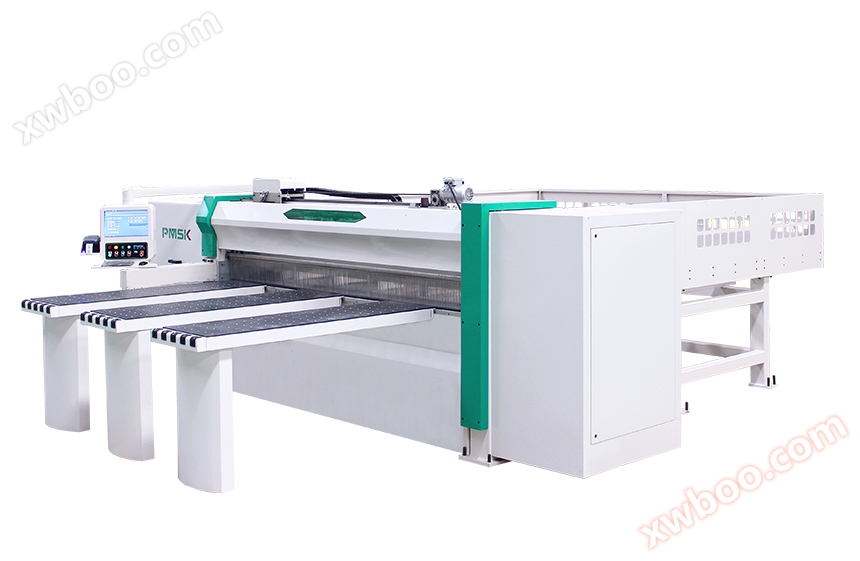

The electronic cutting saw PN320 CNC cutting saw is a high-precision and high-efficiency cutting equipment suitable for mass production in the furniture industry
Product Details
Electronic panel saw Pin Mai CNC PN320 electronic cutting saw is a high-precision, high-efficiency cutting equipment suitable for the furniture industry's mass production of sheet metal. The device is easy to operate, just import the processing data into the control system, place the required sheet metal on the workbench, click the start button, and the device can complete the precise cutting of the required sheet metal. The device can be integrated with various furniture design and disassembly software, and can be used in conjunction with edge banding machinesCNC (Computer Numerical Control)Six sided drillComplete the entire process of furniture production, including cutting, punching, and slotting, which is particularly suitable for the mass production of office furniture and customized furniture projects. Equipment processing video
Device characteristics
◆ Adopting a heavy-duty bed to ensure smooth operation of the equipment;
The feeding area adopts a pneumatic floating bead table to prevent scratches on the surface of the board and reduce the labor intensity of feeding;
8 sets of mechanical gripper automatic fast feeding, low labor intensity, high production efficiency;
The saw carriage adopts a high-precision servo system to ensure processing speed, accuracy, and smooth operation. The maximum return speed of the saw carriage can reach 110 meters per minute;
High power sawing motor can easily cut multiple types of wooden boards at once, meeting the requirements of high load batch production;

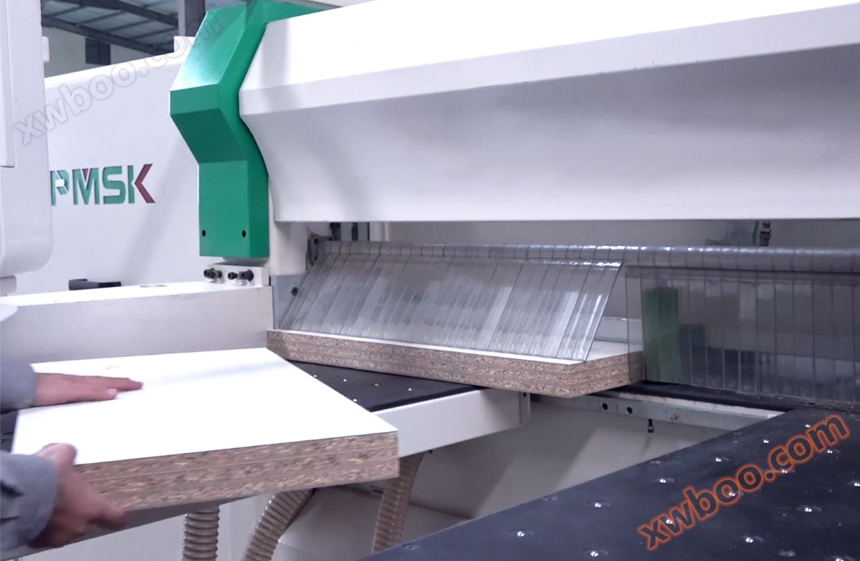

The height of the pressure beam and saw blade can be automatically adjusted according to the thickness of the board, saving time and improving efficiency;
The loading and unloading of saw blades are convenient and fast, effectively reducing downtime and alleviating the burden on workers;
Intelligent side positioning mechanism ensures precise sawing of batch small boards;

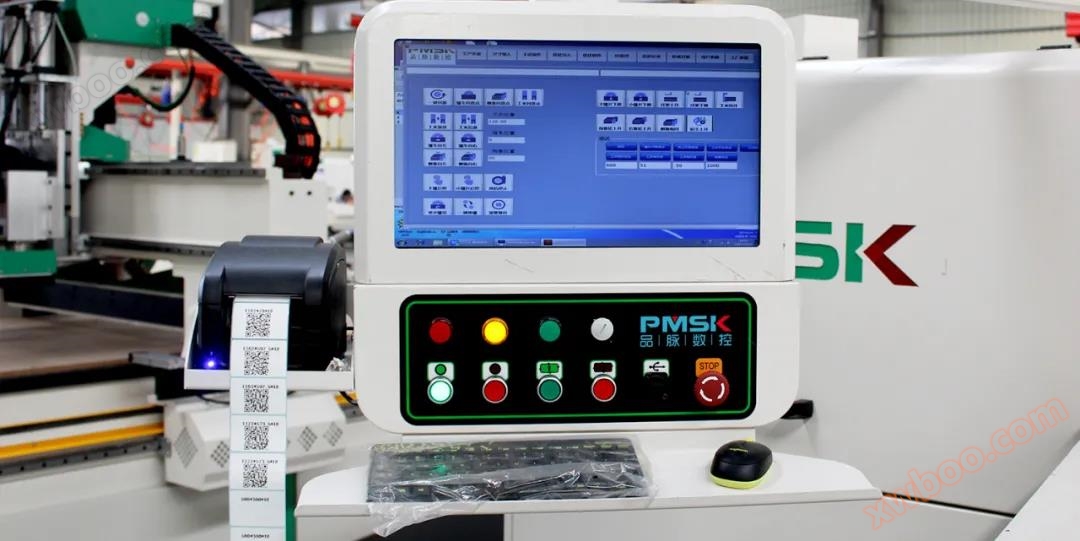

Adopting a large screen Taiwan Delta high-performance control system, it has complete functions, a user-friendly interface, and simple operation.
Product details Solve the process Applicable Industries
Technical Specifications
Machine model: PN280/PN320
PN280 maximum processing size: 2800 × 2800 × 90mm
PN320 maximum processing size: 3100 × 3200 × 90mm
Main saw blade outer diameter x inner diameter: 400 x 60mm
Outer diameter x inner diameter of secondary saw blade: 200 x 45mm
Maximum return speed of sawing machine: 110m/min
Maximum feeding speed: 90m/min
Main saw motor power: 15KW
Auxiliary saw motor power: 2.2KW
Power: 28KW
Voltage: 3P AC 380V/50Hz
Air pressure: ≥ 6.5Kgf/cm ²
Weight: 6000Kg
PN280 external dimensions: 6200 × 6600 × 2000mm
PN320 external dimensions: 6600 × 7000 × 2000mm
Pinmai Service
pre-sales service
① Provide free consulting services on product features, applicable industries, technical parameters, product prices, and more.
② Recommend suitable CNC equipment to customers andPanel furniture production lineMatching plan.
in-sales service
① Free car pick-up and drop off services are provided when customers visit the factory for inspection.
② Equipped with professional personnel to provide detailed and comprehensive explanations of the product, answering customers' doubts and uncertainties about the product.
③ Provide customers with free on-site processing demonstrations, sampling, and visits to old customer production factories.
after-sales service
① The company provides lifelong free technical and software training.
② Free on-site installation and debugging of the equipment upon arrival at the factory. The whole machine comes with a one-year free warranty and lifetime on-site maintenance.
③ Fault repair report, response within 10 minutes, clear reply within 2 hours, on-site handling within 48 hours, and the entire fault handling process should be completed within 72 hours.
