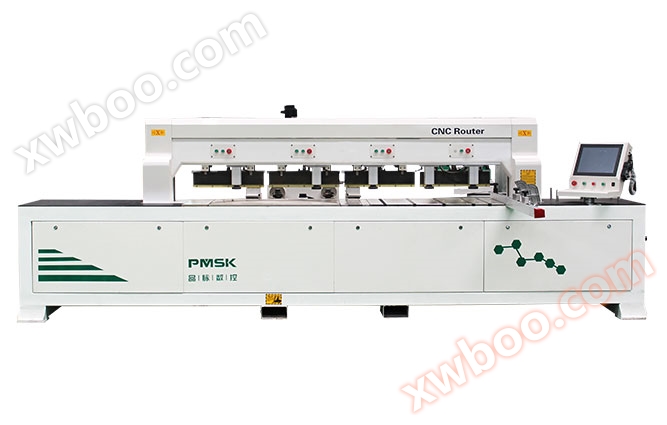

M5.1-0825 CNC Solid Wood Door Forming Machine

The M5.1-0825 CNC solid wood door forming machine developed and produced by Pinmai CNC is a professional CNC automation processing equipment used for solid wood assembly door stiles, heads, door mid-range gears, door core milling, and drilling processing. This model is not only economical and practical, but also easy to operate without complex programming, and can be operated by ordinary workers, greatly simplifying the process flow and improving work efficiency. It is the first choice for capacity upgrading of small and medium-sized wooden door production enterprises. Breaking through production bottlenecks for wooden door enterprises, saving money, time, and labor.

Performance characteristics:
1. Adopting a high-end CNC system, it is easy to operate and can process various styles of combination shapes and styles according to design requirements.

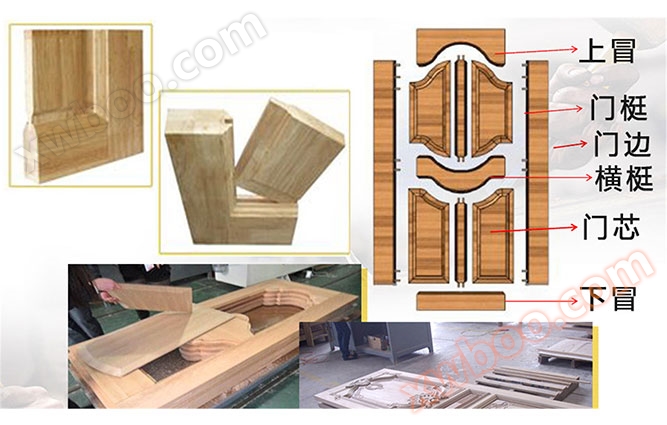

2. Powerful in function, capable of processing various components such as door caps, door cores, door studs, and center sills.
3. High processing efficiency and precision.
4. Economic practicality, low energy consumption, labor-saving, multifunctional, high cost-effectiveness and other characteristics.

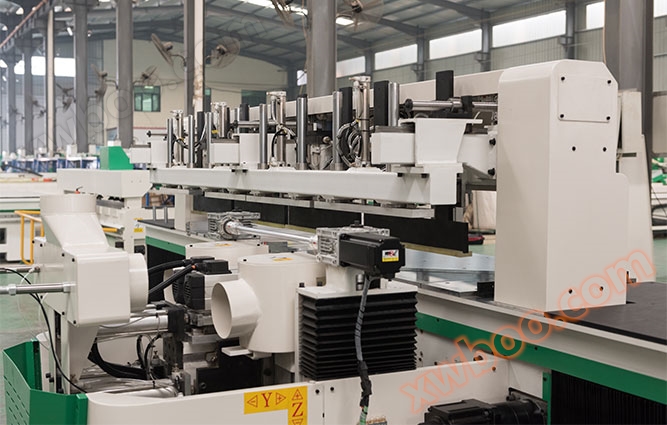

5. Dual spindle positive and negative rotation milling, durable and not prone to edge breakage.

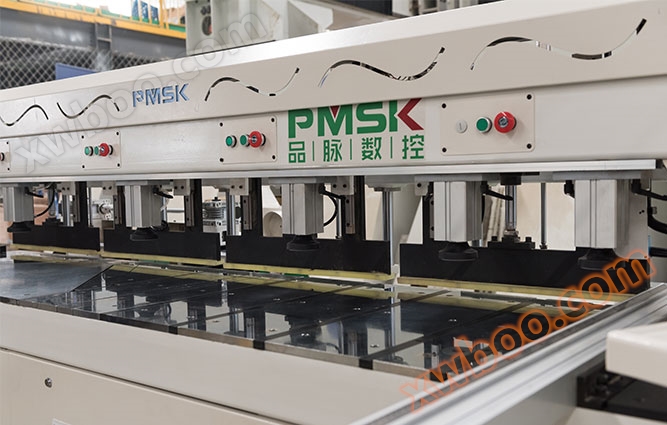

6. Multi point positioning, cylinder type pressing to fix the plate, ensuring machining accuracy.
7. Precision machining of door panels with 45 degree framing.

processed video

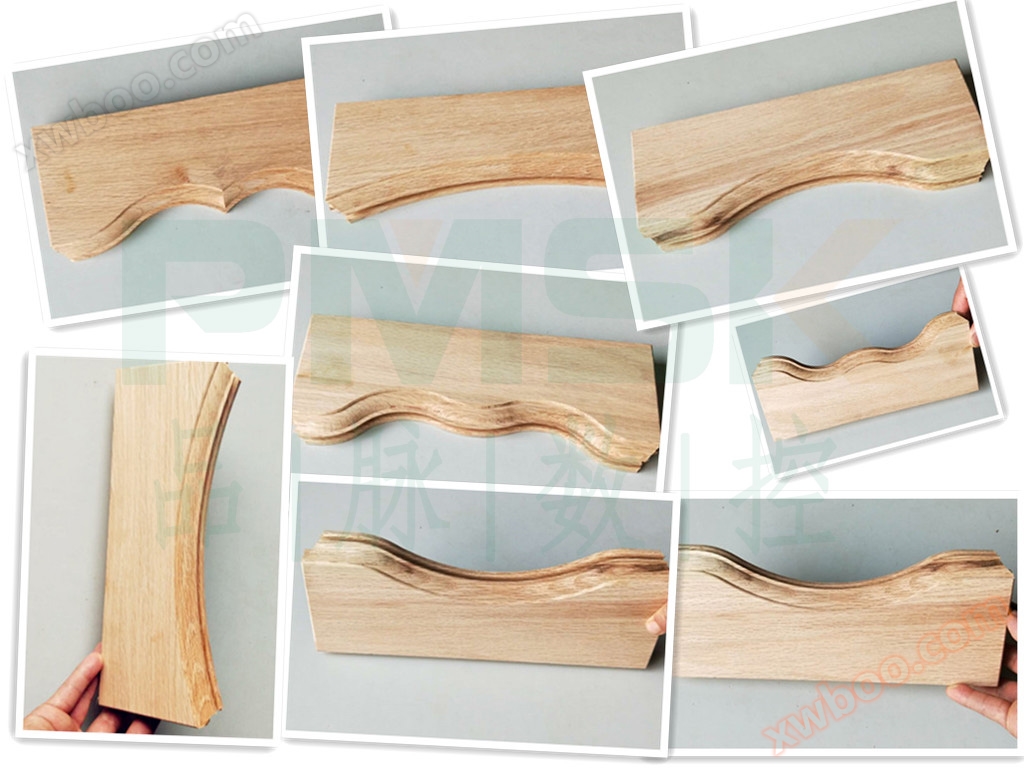

Scope of application:Solid wood assembled doors, solid wood cabinet doors, solid wood wardrobe doors, solid wood frame cabinets, and solid wood protective walls.
Performance characteristics:
1. Adopting a high-end CNC system, it is easy to operate and can process various styles of combination shapes and styles according to design requirements.
2. Powerful in function, capable of processing various components such as door caps, door cores, door studs, and center sills.
3. High processing efficiency and precision.
4. Economic practicality, low energy consumption, labor-saving, multifunctional, high cost-effectiveness and other characteristics.

Equipment Technical Parameters

Machine tool model	M5.1-0825 CNC Solid Wood Door Forming Machine
Maximum feed rate	65m/min
Maximum processing speed	10m/min	Maximum processing length	2500mm
Maximum processing thickness	80mm	Arc processing depth	0-110mm
Maximum drilling depth	50mm	Processing angle	45°/90°/135°
guide rail	Taiwan guide rail
rack
Electrical main components	Schneider, France
Power, voltage, and air pressure	30KW、3P AC 380V/50HZ 、≧6.5Kgf/cm²
