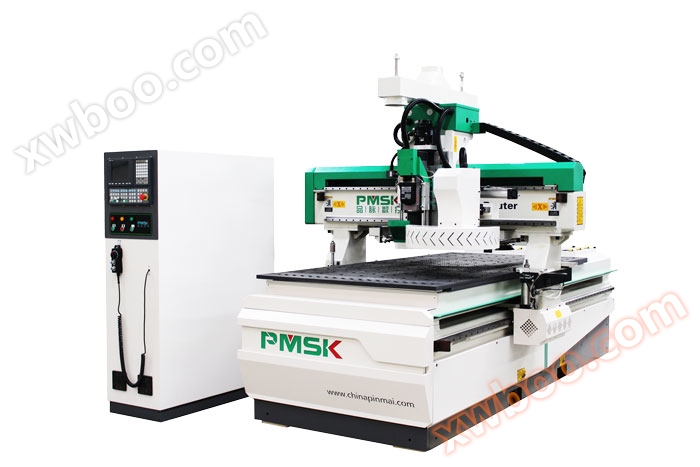

P4 high-precision screw machining center

The P4 high-precision screw machining center is a processing equipment specifically designed for milling high-end cabinet doors. This machine adopts three-axis full screw transmission, with higher accuracy than general rack transmission machines, but the machine runs at a lower speed than rack machines

The P4 high-precision screw machining center is a processing equipment specifically designed for milling high-end cabinet doors. This machine adopts three-axis full screw transmission, with higher accuracy than general rack transmission machines, but the machine runs at a lower speed than rack machines. The screw machining center is currently a must-have automatic tool changing machining center for high-end vacuum formed door panels and painted door panel factories.
Features
High precision rotating screw transmission design, used for high-speed and high-precision machining.
◆ Use cabinet door panels for angle adjustment, milling, and long-term operation to ensure machining accuracy.
The machine control interface design is user-friendly and easy to operate. Operators can take up their posts after simple training, without the need for technical workers. The equipment operates quickly and efficiently.
Adopting a double-layer tabletop with multiple adsorption holes, a reasonable structure, and stronger adsorption force.
Applicable industries and materials:
Cabinet door panel inner right angle processing, acrylic mini word processing, aluminum industrial sheet processing
Technical Specifications

series	P4-1325
XYZ travel range	1260×2460×200mm
Maximum processing size	1220×2440mm
rapid traverse speed	35m/min
Maximum processing speed	20m/min
Transmission form	XYZ lead screw
spindle parameters	9KW/24000rpm
Knife library parameters	16 servo tool magazines
tabletop structure	Double layered porous tabletop
drive system	安川
operating system	SYNTEC
Working Voltage	AC380/3PH/50Hz
Total weight	2600KG
