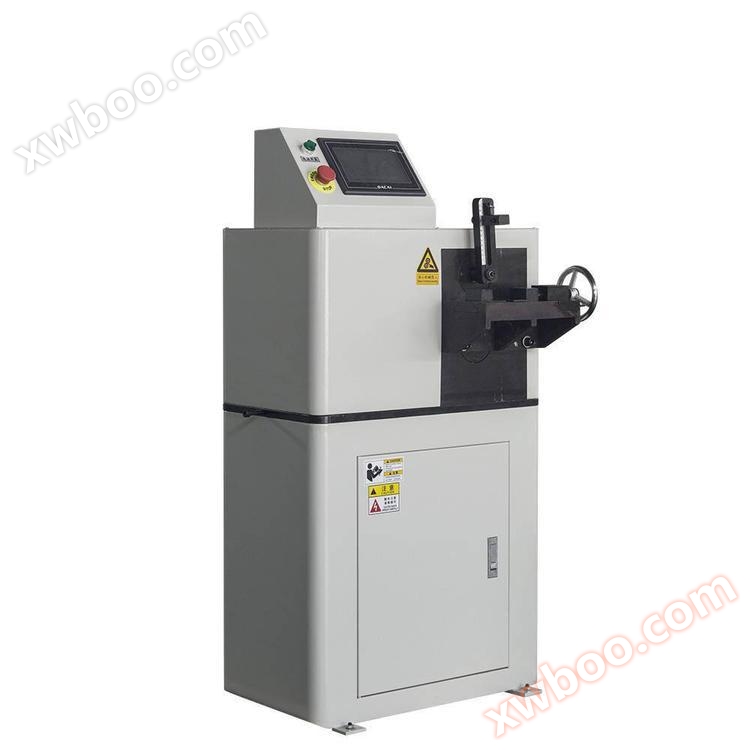

Friction testing machine Rubber friction and wear testing machine Plastic sliding friction testing machine

Friction testing machine Rubber friction and wear testing machine Plastic sliding friction testing machine

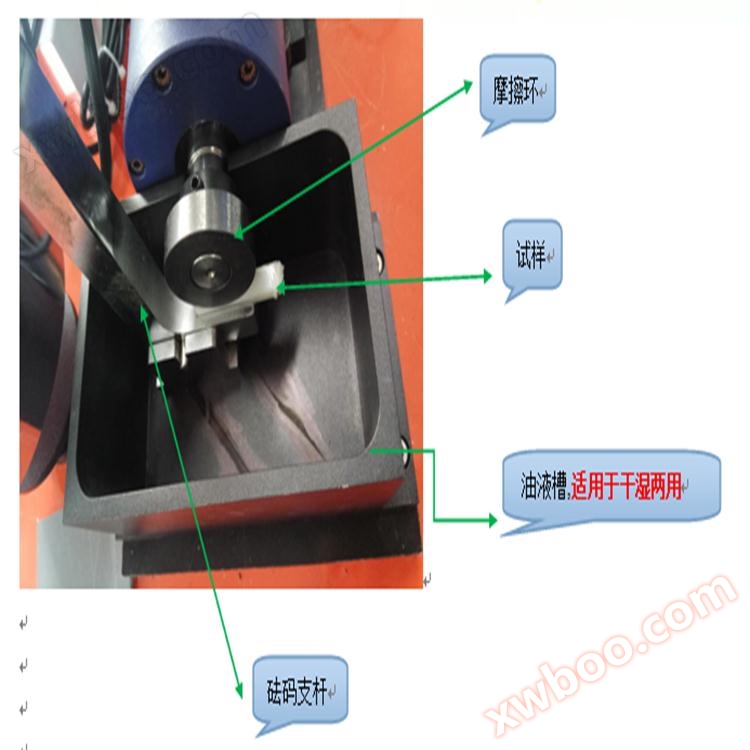

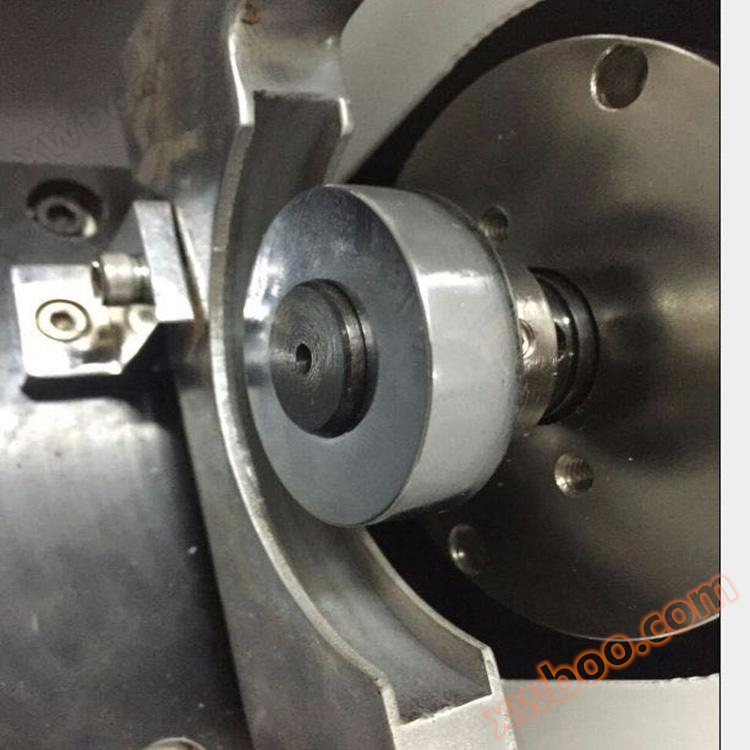

2、 Functional features: 1. Sample size: 30mm × 7mm × 6mm 2. Rotation speed: 0-200 revolutions per minute (adjustable) 3. Load: 196N ± 0.1% (can be increased to 392N) 4. Friction ring size: ￠ 40 × 10mm, chamfer 0.5 × 45 °, with a concentricity deviation of less than 0.01 between the outer and inner surfaces? 5. Friction ring material: 45 steel, quenched, heat treated HRC40-45, outer surface smoothness ▼ 8 6, friction torque: 0-10N · m 7, weight: one 4KG weight, four 1KG weights, can achieve weight superposition function.

3、 Accuracy: 1. Speed accuracy: 1% 2. Load accuracy: 0.5% 3. Friction torque accuracy: 1% 4. Counter accuracy: 1S 5. Sensor measurement accuracy: 1% FS
