Fully automatic laser dust particle counter

Product Introduction:

Fully automatic laser dust particle counterIt is an instrument used to measure the number and particle size distribution of dust particles per unit volume in clean environments. It can be widely used for institutions such as drug testing institutes, blood centers, epidemic prevention stations, disease control centers, quality supervision institutes, electronics industry, pharmaceutical workshops, semiconductor, optical or precision machining, plastics, painting, hospitals, environmental protection, inspection institutes, and scientific research departments in various provinces and cities.

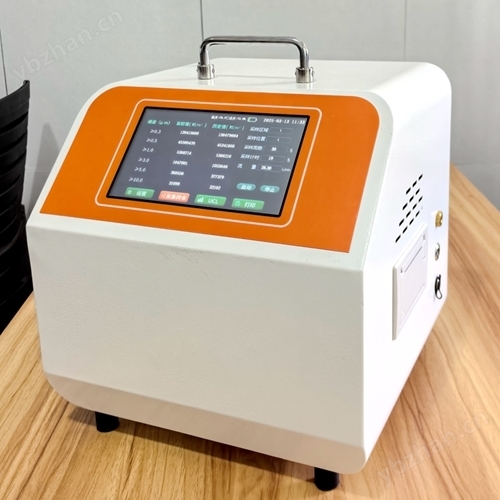

Xinwei Huicheng CLJ-680E modelFully automatic laser dust particle counterInstrument features:

1. Full metal body, touch high-definition large screen for switching between Chinese and English.

2. Automatic monitoring, easy to operate without training.

3. Automatic alarm, automatic determination of purification level, and automatic storage of sampling data.

4. Multi level permission management and audit tracking function.

5. Dual use of AC and DC, built-in battery, easy to move.

Xinwei Huicheng CLJ-680E modelFully automatic laser dust particle counterTechnical Specifications:

Sampling flow rate: 28.3L/min

Screen display mode: 7-inch color touch screen

Battery capacity: Built in 35000mAh

Average power consumption: 90W

Dimensions: 300 * 300 * 300mm

Weight: 8.5Kg

Particle size channels: Six channels, namely 0.3, 0.5, 1.0, 3.0, 5.0, and 10 (μ m)

Light source: semiconductor laser light source (with a lifespan greater than 30000 hours)

Particle size distribution error: within 0.5um and 5um ≤ ± 30%

Particle concentration indication error: within 0.5um ≤± 30%

Detection range: 100 to 1 million levels

UCL report: compliant with Chinese GMP standards FS - 209E

Sampling period: 1s-9999999s self set

Sampling delay: 1s-9999999s self set

Sampling points: 2-50 points, freely set

Sampling frequency: 2-50 times, freely set

Sampling area: Any combination of letters and numbers or individually set according to requirements

Sampling units: three units to choose from: particles, particles/m ³, particles/FT ³, etc

Self purification time: ≤ 10 minutes

Work environment:

Temperature: 10 ℃ -35 ℃

Relative humidity: ≤ 75%

Atmospheric pressure: 86kPa-16kPa

Sampling conditions: The sampled gas must not contain corrosive gases such as acid, alkali, high temperature, etc

Data printing: Built in high-speed thermal printer

Attachment: Host, power adapter, printing paper, instruction manual, certificate of conformity
