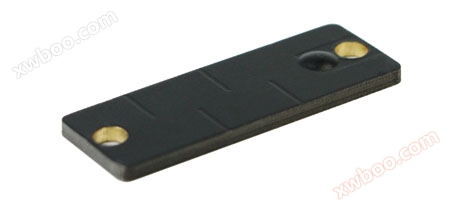

High temperature, low temperature, and metal resistant electronic tag RT-4215
PC B-ultrasound high-frequency metal tag, RFID electronic tag, high temperature resistant metal tag
0 Comments
High temperature resistance of 280 ° C for 50 minutes and 250 ° C for 150 minutes
| Functional parameters: |
| RFID protocol | EPC Class1 Gen2, ISO18000-6C |
| frequency | 902-928MHz (American standard), 865-868MHz (European standard) |
| chip | Alien Higgs-4 |
| storage | EPC 128bits, User area 128 bits, TID 64 bits |
| Write frequency | 100000 times |
| function | Reading and writing |
| Data storage | 50 years |
| Application surface | Metal surface |
| Reading distance: (4-watt fixed machine) |
6.8 meters - (American standard) 902-928MHz, metal surface 7.0 meters - (European standard) 865-868MHz, metal surface |
| Reading distance: (2-watt handheld device) |
5.3 meters - (American standard) 902-928MHz, metal surface 5.5 meters - (European standard) 865-868MHz, metal surface |
| Warranty period | a year |
| Physical parameters: |
| size | 42x15mm, (Aperture: 4mm * 2) |
| thickness | The thickness of the chip slot with protrusions is 2.8mm, while the thickness of the chip slot without protrusions is 2.1mm |
| material | PTFE |
| colour | black |
| Installation method | Adhesive backing or screws |
| weight | 2.2 grams |
| Environmental specifications: |
| Protection grade | IP68 |
| storage temperature | -55 ° C to+200 ° C (high temperature resistance of 280 ° C for 50 minutes, 250 ° C for 150 minutes) |
| operation temperature | -40 ° C to+100 ° C (normal operation for 10 hours at 180 ° C high temperature) |
| authentication | Reach certification, RoHS certification, CE certification |
