ISB 800AN-3 Injection Pull Blow Plastic Hollow Forming Machine

Jiasu one-step blow molding machine

Jiasu one-step blow molding machine with robotic arm

Jiasu one-step injection, pulling, blowing and blowing bottle machine

Jiasu Precision One Step Injection, Pulling, Blowing and Blowing Bottle Machine Brochure. pdf dropClick to download

Jiasu Precision Machinery Injection Pull Blow Integrated Plastic Hollow Forming Machine Manufacturing Expert

Obtained national patent number:.7


Scope of application of injection pull blow integrated plastic hollow forming machine products
LED lampshade, safety headlight cover, and irregular lampshade ※ Example: Diameter of Φ 30- Φ 80, Φ 80- Φ 300,PC/PS/PMMA acrylic lampshadeLotus lamp, etc
■ PC teapot and red wine glass ※ Example: juice teapot, beer teapot, milk tea teapot, red wine glass, etc
■ Milk bottles and sports water bottles ※ Example: student water bottles, vacuum cups, juice cups, baby bottles, etc
■ Food and beverage packaging ※ Example: Wide mouthed bottles/cans seasoning bottles, etc
■ Cosmetics and detergent packaging ※ Example: hand sanitizer bottle, bath gel bottle, perfume bottle, etc

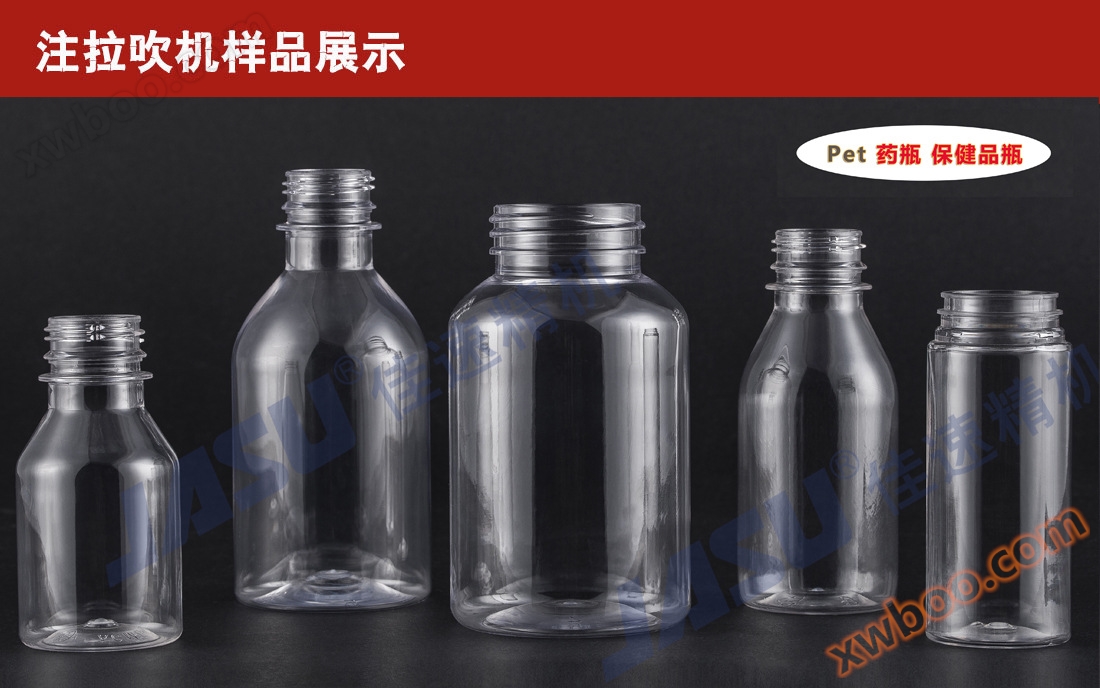

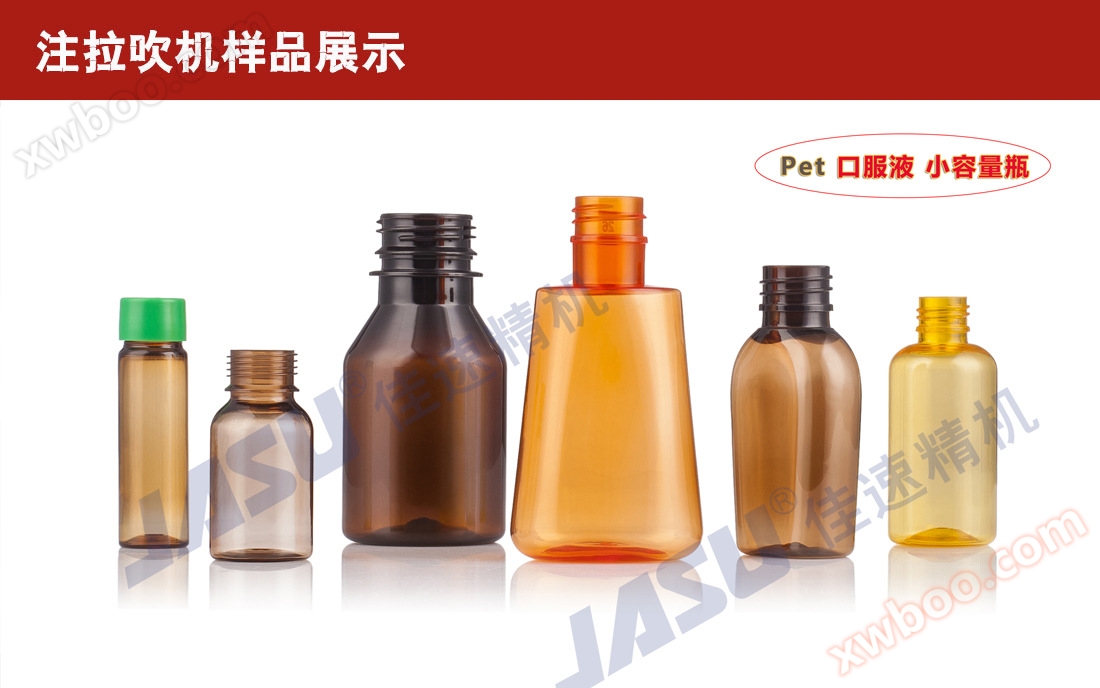

■ Packaging of pharmaceutical products ※ Example: Medicine bottles, eye medicine bottles, oral liquid bottles, etc

Introduction to injection pull blow integrated plastic hollow forming machine

The turntable is driven by a servo motor to avoid contamination of the product by hydraulic oil;

Fully automatic control, easy to operate; Ensure that there is no human contact during the production process of the product to ensure cleanliness and hygiene;

The temperature of the material barrel and the heat flow temperature of the mold are precisely controlled by PIT;

The one-step injection pull blow hollow forming machine saves more funds and human resources than traditional injection pull blow equipment;

The machine has a compact structure, occupies a small area, and saves space;

■ Workstation

Injection molding station: Hot runner and temperature control device have been included as standard configurations. Customers only need to replace the mold cavity and upper mold to replace the product;

Blow molding station: The entire hydraulic mold clamping, core insertion, blowing, and bottle bottom forming devices are all standard configurations. Customers only need to replace the mold cavity module and blowing needle to replace the product;

Demoulding station: The ejector device has been included as a standard configuration;

■Jiasu ISB 800AN-3 one-step injection, pull, blow and blow molding machine has a wide range of applications and can use a variety of raw materials. Among them, the PC/PMMA/PP/PET/PS/Tritan series products include LED lampshades, PC light bulbs, space cups, kettles, beverage bottles, and container liners; The PET series includes: cosmetic bottles, medicine bottles, wide mouth bottles, food packaging, and beverage bottles; The PP series includes: baby bottles, water bottles, kettles, food packaging, and more. The products produced by Jiasu ISB 800AN-3 one-step injection pull blow molding machine have no burrs, no water mouth material, and few defects. They have perfect mouth, bottom, and seam lines, and are more transparent and rigid.

■We can also configure the production blow molding machine according to the specific requirements of customers and provide a complete set of mold design and manufacturing services. New and old customers are welcome to inquire by phone.

1

If there are changes in technical improvement parameters, no further notice will be given

JASU Jiasu brand advantages and policy support:
1. Jiasu brand products have modern production bases in Guangzhou in the Pearl River Delta and Suzhou in the Yangtze River Delta;
2. High quality branded products, agents enjoy the lowest discounted prices and priority supply of the products;
3. Assist agents in completing sales negotiations, technical guidance, and fundraising in all aspects;
4. Support from after-sales maintenance outlets across the country;
5. All levels of agents can receive annual sales performance rewards.

More and better agent discounts and rewards, welcome to contact us for negotiation:
Contact: Mr. Hu
contact number:

1. Product price: Pricing based on specific customer configurations
2. Shipping location: Guangzhou
3. Logistics costs: negotiable
If you need more specific information, please contact us. Jiasu will be happy to serve you. Contact phone number:,,
