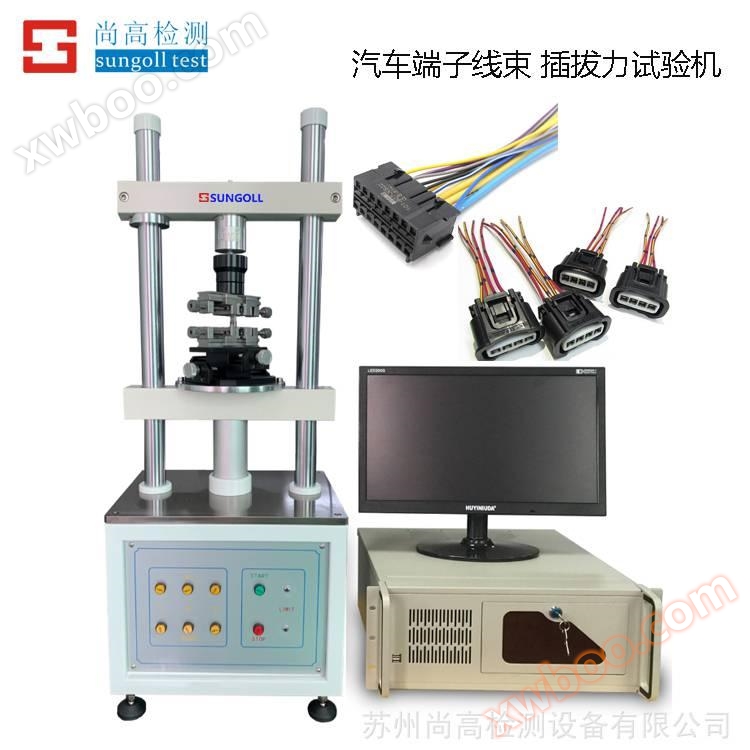

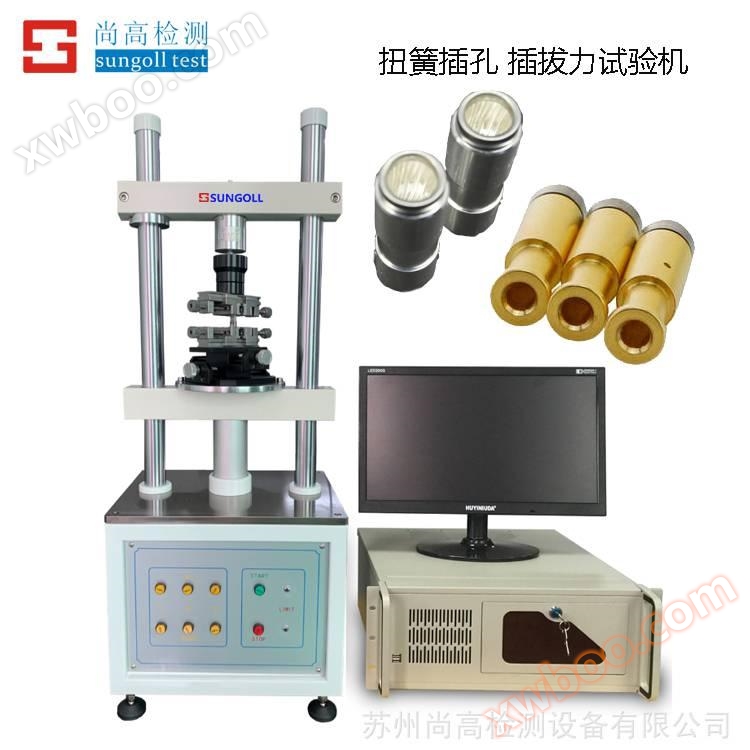

The insertion and extraction force testing machine is suitable for testing the insertion and extraction force of various connectors. Paired with the automatic centering device designed by Brick Li, it can obtain completely accurate insertion and extraction force tests. It is set using WINDOWS and Chinese interface settings, with simple and convenient operation, and all data can be stored (test conditions, displacement curve chart, life curve chart, inspection report, etc.)

Specification of insertion and extraction force testing machine:

Measure the maximum load of 50, 20, and 5kg

*Small decomposition energy of 0.01kg or 1g

*Large measurement height 150mm

Measurement speed range 0~150mm/min

X. Y-axis movement range 0~75mm

Transmission mechanism ball screw

Exterior dimensions 420 * 280 * 960mm

Weight 67kg (machine)

Power supply AC 110V or 220V

Test project:

Single hole plug and unplug test for connectors

Connector row insertion and extraction test

Connector plug-in life test

Connector single PIN and plastic retention test

Connector NORMAL FORCE test

General compression and tensile failure tests

Can be connected to the contact impedance machine simultaneously (optional)

Features of the insertion and extraction force testing machine:

Printable and storable graphics (plug-in displacement curve, lifespan curve, inspection report)

Test data is stored on the hard drive (each data can be stored, unlimited times)

The testing conditions are set by the computer screen, which is convenient and fast (including insertion and extraction stroke, speed, pause time, etc.)

The header content of the inspection report can be modified at any time (in both Chinese and English)

The inspection report can be converted to Excel for editing
