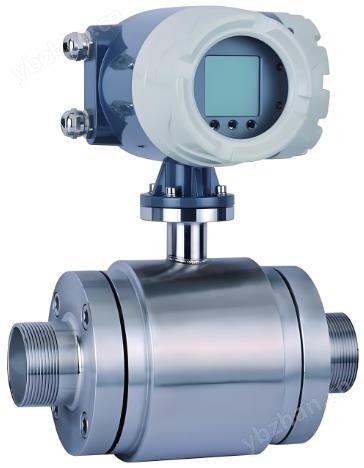

Intelligent anti-corrosion electromagnetic flowmeter

NegotiableUpdate on 01/11

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

The TKLD series intelligent anti-corrosion electromagnetic flowmeter adopts. By using constant current low-frequency ternary rectangular waves or dual frequency rectangular waves for excitation, it not only has the advantages of rectangular wave magnetic fields, but also overcomes the disadvantages of sine wave magnetic fields; It can also eliminate errors caused by fluctuations in power supply voltage, changes in power supply frequency, and changes in excitation coil impedance; And it has zero stability and is not affected by fluid noise interference.

Product Details

Top 500 private enterprises in China, Anhui Province enterprises, Anhui Province optical and cable industry base, Chinese wire and cable enterprises, large and professional temperature instrument production enterprises in China, and suppliers of complete sets of temperature, pressure, liquid level, flow, and material level. ：138 5505 8800

TKLD seriesIntelligent anti-corrosion electromagnetic flowmeteruse. By using constant current low-frequency ternary rectangular waves or dual frequency rectangular waves for excitation, it not only has the advantages of rectangular wave magnetic fields, but also overcomes the disadvantages of sine wave magnetic fields; It can also eliminate errors caused by fluctuations in power supply voltage, changes in power supply frequency, and changes in excitation coil impedance; And it has zero stability and is not affected by fluid noise interference. Therefore, it has the characteristics of high stability and high reliability.Intelligent anti-corrosion electromagnetic flowmeterThe measurement principle is based on Faraday's law of electromagnetic induction,Intelligent anti-corrosion electromagnetic flowmeterComposed of sensors and converters, the sensors are installed on the measuring pipeline, and the converters can be combined with the sensors to form an integrated electromagnetic flowmeter. When the converters are installed within 30 meters or 100 meters of the sensors, they are connected by shielded cables to form a separate electromagnetic flowmeter.Intelligent anti-corrosion electromagnetic flowmeterThe main components of the sensor are: measuring tube, electrode, excitation coil, iron core, and magnetic yoke housing.Intelligent anti-corrosion electromagnetic flowmeterMainly used to measure the volumetric flow rate of conductive liquids and slurries in closed pipelines. Such as water, sewage, mud, pulp, various acids, alkalis, salt solutions, food slurries, etc,Intelligent anti-corrosion electromagnetic flowmeterWidely used in the production process flow measurement and control of industries such as petrochemicals, steel metallurgy, water supply and drainage, water conservancy irrigation, water treatment, environmental wastewater total control, papermaking, pharmaceuticals, food, etc; Suitable for measuring the total amount of conductive liquids..

Product Features:
1Programmable low-frequency rectangular wave excitation improves the stability of flow measurement and reduces power loss;
2Adopting a 16 bit embedded microprocessor, it has fast computing speed and high accuracy;
3Fully digital processing, strong resistance, reliable measurement, high accuracy, and a flow measurement range of up to 1500:1;
4Ultra low EMI switching power supply, suitable for a wide range of power supply voltage changes, with good EMC resistance performance;
5Full Chinese character menu operation, easy to use, simple to operate, easy to learn and understand;
6High definition backlit LCD display;
7It has bidirectional flow measurement and bidirectional total accumulation functions, and bidirectional output functions for current and frequency;
8Internally, there are three integrators that can display positive cumulative quantity, negative cumulative quantity, and differential cumulative quantity respectively;
9Equipped with RS485 or RS232 digital communication signal output
10Equipped with conductivity measurement function, it can distinguish whether the sensor is empty or not;
11The constant current excitation current has a wide range and can be used in conjunction with different companies and types of electromagnetic flow sensors;
12Equipped with self checking and self diagnostic functions;
13Adopting SMD devices and surface mount (SMT) technology, the circuit has high reliability;
14The internal design of the instrument includes a non power failure clock that can record 16 power failure times.

TKLD seriesIntelligent anti-corrosion electromagnetic flowmeter
Main technical data:
Technical data of the whole machine and sensors

execution standard	JB／T 9248~1999
Nominal Diameter	10. 15、20、25、32、40、50、65、80、100、125、150、200、250、300、350、400、500、600、700、800、900、1000、1200、1400、1600、1800、2000、2200、2400、2600、2800、3000
high flow rate	15m／s
accuracy	DNl5～DN600	Indicating value:±0.3%Flow rate≥1m／s；±3mm／sflow velocity<1m／s
	DN700~DN3000	Indicating value±0.5%Flow rate≥0.8m／S；±4mm／sflow velocity<0.8m／S
Fluid conductivity	≥5uS／cm
Nominal Pressure	4.0MPa	1.6MPa	1.0MPa	0.6MPa	6.3The10MPa
	DNl5～DN150	DNl5～DN600	DN200～DN1000	DN700～DN3000	Special Orders
ambient temperature	sensor	-25℃- +60℃
	Converter and integrated model	-10℃- +60℃
Lining material	Polytetraethylene, polybutadiene rubber, polyurethane, polypropyleneF46Add NetworkPFA
High fluid temperature	integrated type	70℃
	Separated type	Polychloroprene rubber lining	80℃；120℃Please indicate when placing an order
		Polyurethane lining	80℃
		Poly (tetrafluoroethylene) lining	100℃；150℃Please indicate when placing an order
		Poly (ethylene propylene glycol)F46
		Add NetworkPFA
Signal electrode and ground electrode materials	stainless steel0Crl8Nil2M02TiHastelloy alloyCHastelloy alloyBTitanium, tantalum, platinum/iridium alloy, stainless steel coated with tungsten carbide
Electrode scraper mechanism	DN300—DN3000
Connecting flange material	carbon steel
Grounding flange material	stainless steel1Crl8Ni9Ti
Imported protective flange materials	DN65—DNl50		stainless steel1Crl8Ni9Ti
	DN200～DNl600		Carbon steel and stainless steel1Crl8Ni9Ti
Shell protection	DNl5～DN3000Separable rubber or polyurethane lined sensor			IP65orIP68
	Other sensors, integrated flow meters, and separate converters			IP65
Distance separation type	The distance between the converter and the sensor is generally not more than100m

Converter technology data

power supply

communication

85—265V，45—400Hz

direct current

11—40V

Operation keys and display

push-button

4A thin film button can be used to set and select all parameters, and can also be utilizedPCmachineRS232Programming the converter settings;

3lineLCDWide viewing angle, wide temperature range, backlit display;

第1Display traffic values in rows;

第2Display flow units in rows;

第3Display the percentage of traffic, total forward, total reverse, total difference, alarm, and flow rate.

Magnetic key type

2A magnetic key is used to display parameter selection and reset, utilizingPCmachineRS232Programming the converter settings;

2lineLCDWide viewing angle, wide temperature range, backlit display:

第1line:Magnetic key selection:Display traffic percentage, forward total amount, reverse total amount, difference total amount, alarm, and flow rate.

第2Row: Display traffic.

Internal integrator

Positive total, negative total, and differential total.

output signal

Unidirectional analog output

Fully isolated, load≤600D．20mATime;

upper limit:0—21mAOptional, each levelLMA；

Lower limit:0—21mAOptional, each level1mA；

Programming for forward and reverse flow output modes.

Bidirectional analog output

The lower limit is. or4mA, other analog outputs in the same direction.

Bidirectional pulse output

Two outputs correspond to forward and reverse flow respectively,frequency0～800Hz,upper limit1~800Hzoptional,Each levelIHz；

Square wave or selected pulse width, selected upper limit of pulse width2．5SEach level1ms；

Passive isolation transistor switch output, capable of absorbing250mACurrent, withstand voltage35V.

Dual channel alarm output

Programmable alarm for high/low flow rate, air traffic control, fault status, positive/negative flow rate, analog over range, pulse over range, pulse small signal cutoff, with optional output polarity;

Transistor switch output with isolation protection,absorbable250mAThe current,pressure resistance35V.Not isolated from pulse output

Digital Communication

RS232，RS485，HART

Selection of imported protective flanges and grounding flanges or grounding rings

Type of flange	Scope of application
Grounding flange or grounding ring	Suitable for non-conductive pipelines such as plastic pipes, but sensors with grounding electrodes do not require them.
Import protection flange	Choose when the medium has strong wear resistance.

Selection of electrodes

electrode material	Corrosion resistance and wear resistance
stainless steel0Crl8Nil2M02Ti	Used for weakly corrosive media such as industrial water, domestic water, sewage, etc., suitable for industrial sectors such as petroleum, chemical, steel, as well as municipal and environmental protection fields.
HastelloyB	It has good corrosion resistance to all concentrations of hydrochloric acid below boiling point, as well as to non chlorinated acids, bases, and non oxidizing salt solutions such as sulfuric acid, phosphoric acid, hydrogen acid, and organic acids.
HastelloyC	Can withstand corrosion from non oxidizing acids such as nitric acid, mixed acids, or mixed media of chromic acid and sulfuric acid, as well as oxidative salts such as:Fe，'Cu'Corrosion caused by or containing other oxidants, such as hypochlorite solutions above room temperature and seawater corrosion
Titanium	Capable of withstanding corrosion from seawater, various chlorides and hypochlorites, oxidizing acids including fuming sulfuric acid, organic acids, and alkalis. Not resistant to corrosion by relatively pure reducing acids such as sulfuric acid and hydrochloric acid, but if the acid contains oxidants such as nitric acidFc++CuWhen++, corrosion is greatly reduced.
Tantalum	It has excellent corrosion resistance and is very similar to glass. Except for hydrogen acid, fuming sulfuric acid, and alkali, it can withstand almost all chemical media including boiling point hydrochloric acid, nitric acid, andl 50℃Corrosion caused by sulfuric acid. Dig in alkali; Corrosion resistance.
Platinum/titanium alloy	Can withstand almost all chemical media, but not suitable for aqua regia and ammonium salts.
Stainless steel coated with tungsten carbide	Used for non corrosive and highly abrasive media.
Note: Due to the wide variety of media and the complex factors such as temperature, concentration, and flow rate that affect their corrosiveness, this table is for reference only. Users should make their own choices based on the actual situation, and if necessary, conduct corrosion resistance tests on the selected materials, such as hanging plate tests.

Selection of TKLD-B series explosion-proof flowmeter instruments
◆ Range confirmation
Explosion proof flow meters for general industrial use measure the flow rate of the measured medium2～4m/sIn special circumstances, the low flow rate should not be less than0.2m/sThe height should not exceed8m/sIf the medium contains solid particles, the commonly used flow rate should be less than3m/sTo prevent excessive friction between the lining and electrodes; For viscous fluids, the flow velocity can be selected to be greater than2m/sA higher flow rate helps to automatically eliminate the effect of viscous substances attached to the electrode, which is beneficial for improving measurement accuracy.
Within the rangeQUnder the determined conditions, the above flow rate can be usedVThe range determines the diameter of the flowmeterDThe size of is calculated by the following formula:
Q=πD2V/4
Q:Flow rate (㎡)/h）D:inner diameter of pipeV: Flow rate（m/h）
Range of explosion-proof flowmeterQIt should be greater than the expected large flow rate value, while the normal flow rate value should be slightly greater than the full-scale scale of the flow meter50It is appropriate.

◆TKLDseriesIntelligent anti-corrosion electromagnetic flowmeterReference flow range

calibermm	flow rangem3/h	calibermm	flow rangem3/h
φ10	0.16~2.5	φ400	250～4000
φ15	0.4~6	φ500	400～6000
φ20	0.6～12	φ600	600～10000
φ25	1.0～16	φ700	800～12000
φ32	1.6~25	φ800	1000～16000
φ40	2.5～40	φ900	1200～20000
φ50	4.0～60	φ1000	1600～25000
φ65	6.0～120	φ1200	2500～30000
φ80	10～160	φ1400	3000～50000
φ100	16～250	φ1600	3000～60000
φ125	25~400	φ1800	5000～60000
φ150	40～600	φ2000	6000～100000
φ200	60～1000	φ2200	1367.78～136778.4
φ250	100～1600	φ2400	1627.78～162777.6
φ300	160～2500	φ2600	1910.38～191037.6
φ350	200～3000

TKLD seriesIntelligent anti-corrosion electromagnetic flowmeterselection

model	caliber
TKLD	10~2600
		code name	Installation type
		Y	integrated
		F	split-type
			code name	Converter model
			ZA	rotundity
			ZB	Square (only applicable to split type)
				code name	output signal
				I.4	4~20mA
				f	Frequency 1KHz
				Rs	Serial communication (485)
				C	controlled output
					code name	Explosion-proof requirements
					N	No explosion-proof
					EX	Explosion proof (only applicable to split type)
						code name	medium temperature
						T1	≤65℃
						T2	≤120℃
						T3	≤ 180 ℃ (only applicable to split type)
							code name	Lining material
							NE	Chloroprene rubber (≤ 65 ℃)
							PVC	Polyvinyl chloride (≤ 70 ℃)
							PTFE	Polytetrafluoroethylene (≤ 180 ℃)
								code name	Electrode material
								316L	stainless steel
								HC	Hastelloy C
								HB	哈氏合金B
								Ti	Titanium
								Ta	Tantalum
								Pt	platinum
