Metal hose with mortise and tenon joint

1、 Product usage and characteristics

Mortise and tenon sealing, no need for sealing gasket, high precision joint processing, high temperature and high pressure resistance, easy disassembly and assembly.

2、 Applicable working conditions

Nominal diameter: DN15- DN50mm
Product length: 200mm -5000mm
Nominal pressure: 4.0MPa
Working temperature: -196 ℃ -450 ℃
Media: liquids, gases, etc.
Joint: ISO standard taper pipe thread, NPT, JIS standard taper pipe thread can be connected with external thread or internal thread

3、 Structure and Materials

　　　　
1. Bellows: Stainless steel 304, 316L, 321, etc
2. Mesh cover: Stainless 201, 202, steel 304, 321, 316L, etc
3. Connectors: Carbon steel, stainless steel

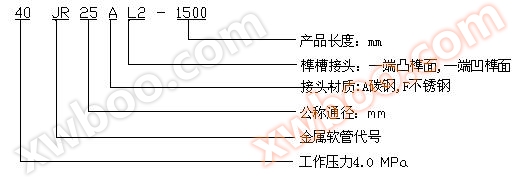

4、 Product code example

5、 Installation precautions

1. When selecting a metal hose, for ease of installation, please try to choose a metal hose with a loose flange at one end.
2. During welding operations at the construction site, the surface of the metal hose should be protected to prevent welding slag and arc ignition from burning the metal hose.
3. Twisting installation of metal hoses is strictly prohibited.
4. It should not be bent along the root of the metal hose, and there should be no dead bends.
5. The medium used must not be corrosive to the corrugated pipe material, and the chloride ion content in the medium should be ≤ 25PPM
6. Strictly follow the installation diagram and install in the correct way. (See installation guide)
7. Mechanical damage to the flange sealing surface is strictly prohibited.
8. Do not use chlorine containing cleaning agents or steel wire brushes to remove dirt from metal hoses.

6、 Product Performance Parameter Table
