Micro thrust testing machine

Micro thrust testing machine

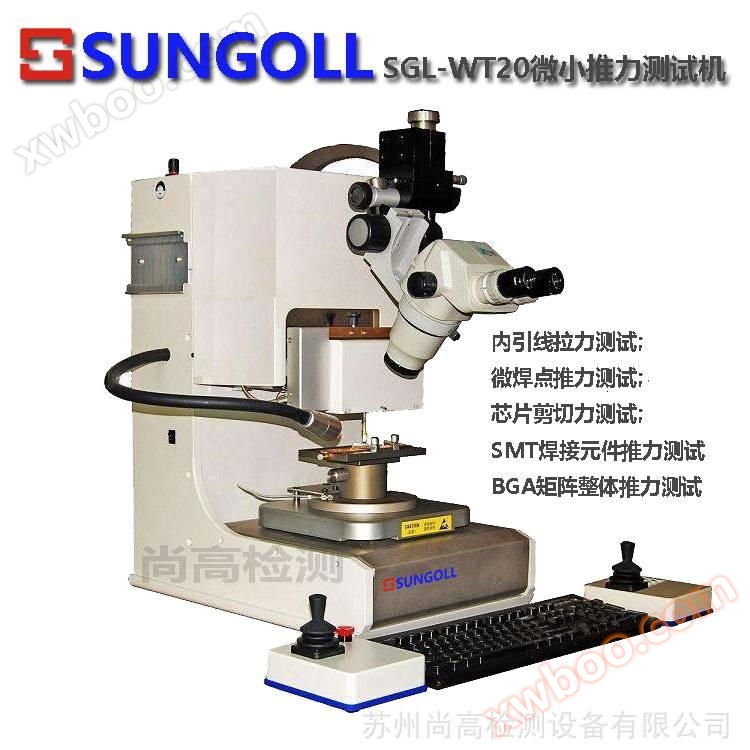

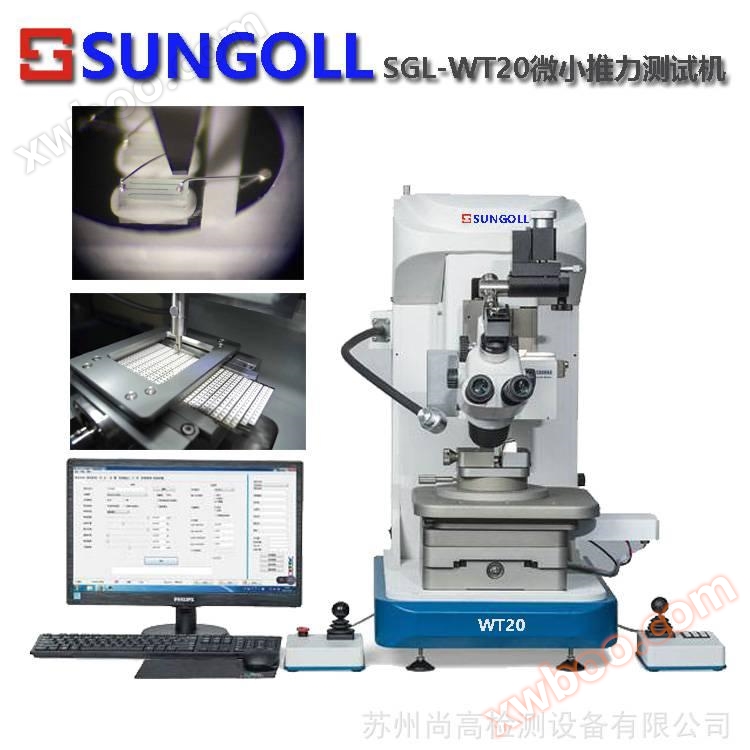

WT20 thrust machine, microchip thrust testing machine, metal wire tension testing machine, solder joint thrust meter

1、 Technical parameters:

1. Testing accuracy

Thrust: 0.1g

Tensile strength: 0.01g

2 Testing Scope

Thrust: 0-500g

Tensile strength: 0-300g

Micro thrust testing machine

Internal lead tensile testing machine, micro solder joint thrust testing machine, chip shear testing machine, SMT welding component thrust testing machine

3. Work itinerary range: 70MM, resolution: 0.02MM

4Z worktable travel range 50MM resolution: 0.02MM

5 User interface: Chinese interface, English interface

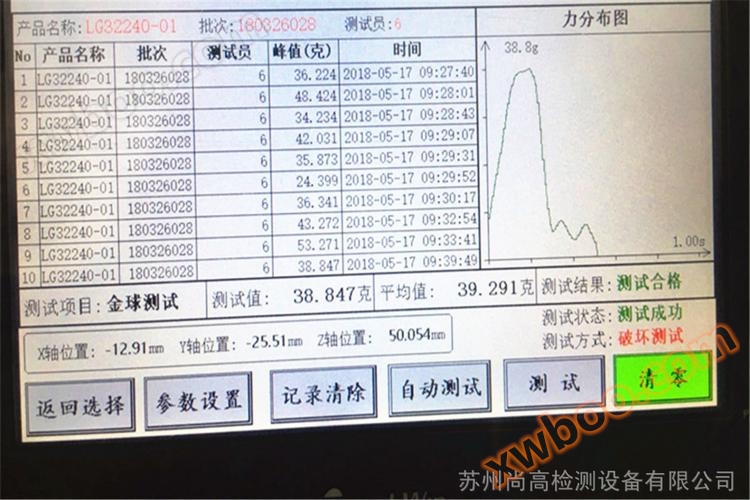

6 Operating System: Control System+WINDOWS Interface Data Operation

7 Power Supply: Power 200W (MAX300W) Frequency 50/60HZ

8 Weight: 35KG

9 Dimensions: 500mm * 550mm * 400mm

Micro thrust testing machine

2、 Currently implemented testing functions:

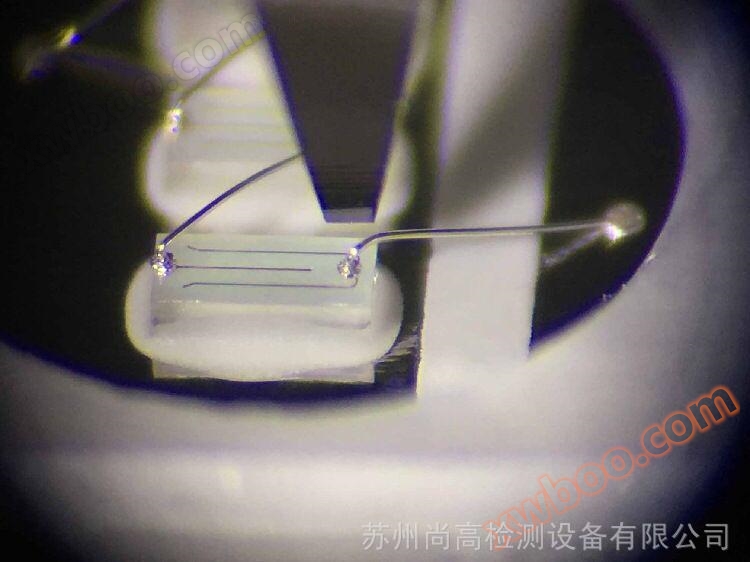

1. Internal lead tension test;

2. Micro solder joint thrust test;

3. Chip shear force test;

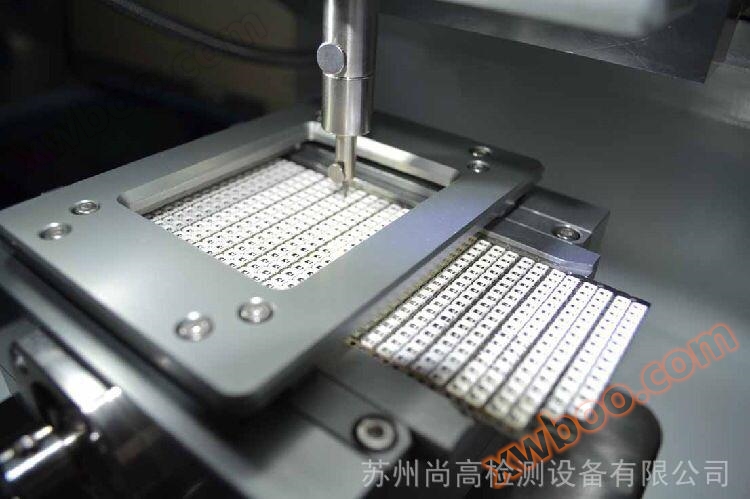

4. SMT welding component thrust test

5. BGA matrix overall thrust test

All the following tests have been conducted, and the overall system degree of the equipment has reached below 0.1% (publicly nominal 0.25%), fully meeting any demanding IC manufacturing process requirements. This includes the emerging LED packaging industry in China, as well as traditional semiconductor manufacturing and technology industries, and research institutes in universities and colleges.
