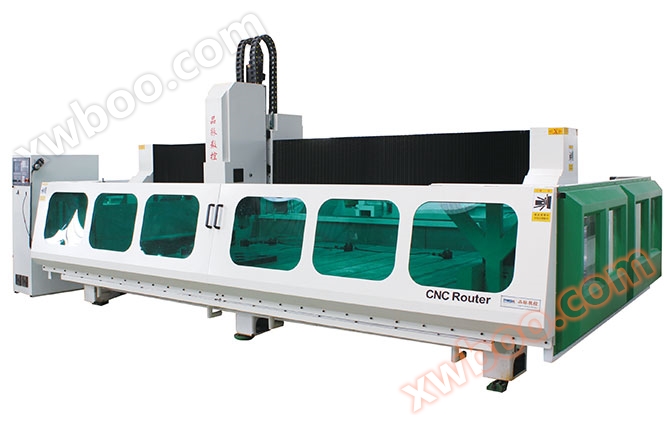

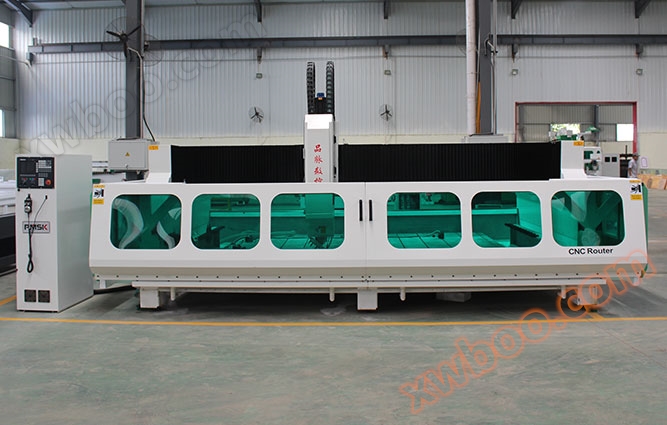

PM Quartz Processing Center

The PM quartz stone processing center is a machine that integrates drilling, sanding, chamfering, and carving, especially suitable for processing high-quality washbasin countertops and other foreign stones, ceramics, glass, and microcrystalline stones. It can fully automate the entire preset processing process. Through multiple innovations and technological upgrades, the machine has successfully solved the problems of difficulty in fixing and clamping workpieces, complicated positioning and tool alignment, easy displacement during grinding and polishing, low processing efficiency, and high processing costs in imported stone processing centers.

Features
The spindle adopts high-precision and high rigidity imported spindle

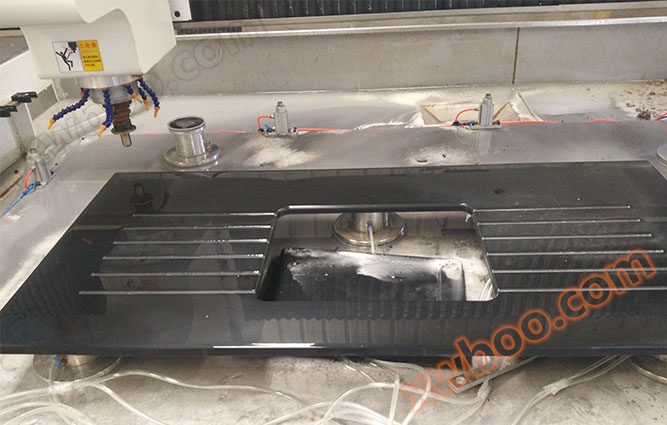

◆ Double sided sealed vacuum suction block system, increasing the suction capacity of the inner suction cup
A large-sized workbench is convenient for placing multiple processing stations

Applicable industries and materials

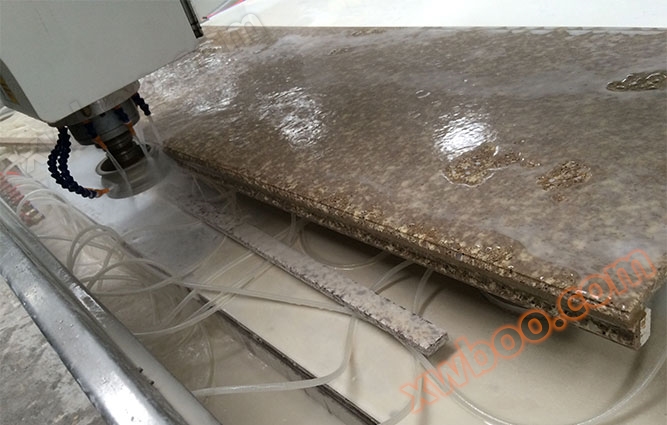

The stone precision processing industry involves the precision processing of various straight or curved irregular edges, high-end countertops, washbasins, cabinet panels, as well as various stone carving works.

Technical Specifications:

series	PM-2812	PM-3113
Itinerary scope	2800×1200×400mm	3100×1300×400mm
rapid traverse speed	30m/min
Maximum processing speed	15m/min
Transmission form	XY rack/Z lead screw
operation mode	servo
Knife library parameters	Layout 8/10	Layout 12/16/18
water supply pressure	151L/min
Working Voltage	AC380/3PH/50Hz
Compressed air parameters	6.5bar-350L/min
Total weight	4700KG	5100KG
